YASKAWA V1000 Series Installation & Start-Up Manual

2.2 Mechanical Installation
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 43
Mechanical Installation
2

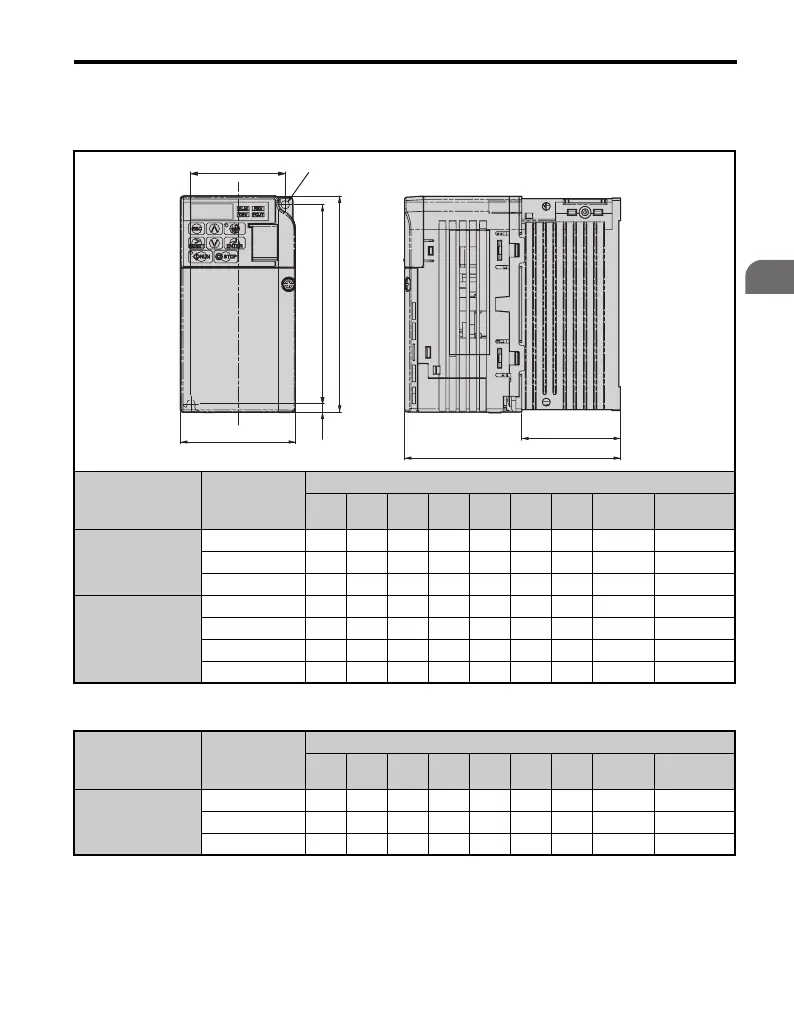

■ Open-Chassis Drives
Table 2.3 IP20/Open-Chassis (without an EMC filter; metric)
Table 2.4 IP20/Open-Chassis (without an EMC filter; U.S. Units)
Voltage Class
Model
CIMR-V
Dimensions (mm)
W1 H1 W H D H2 D1
Weight
(kg)
Installation
Holes
Single-Phase
200 V Class
BA0001A 56 118 68 128 76 5 6.5 0.6 M4
BA0002A 56 118 68 128 76 5 6.5 0.7 M4
BA0003A 56 118 68 128 118 5 38.5 1.0 M4
Three-Phase
200 V Class
2A0001A 56 118 68 128 76 5 6.5 0.6 M4
2A0002A 56 118 68 128 76 5 6.5 0.6 M4
2A0004A 56 118 68 128 108 5 38.5 0.9 M4
2A0006A 56 118 68 128 128 5 58.5 1.1 M4
Voltage Class
Model
CIMR-V
Dimensions (in)
W1 H1 W H D H2 D1
Weight
(lb.)
Installation
Holes
Single-Phase
200 V Class
BA0001A 2.20 4.65 2.68 5.04 2.99 0.20 0.26 0.3 M4
BA0002A 2.20 4.65 2.68 5.04 2.99 0.20 0.26 0.3 M4
BA0003A 2.20 4.65 2.68 5.04 4.65 0.20 1.52 0.5 M4
D1
D
2-M4
W1
H1H2
W
H

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
