2.2 Mechanical Installation
44 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)

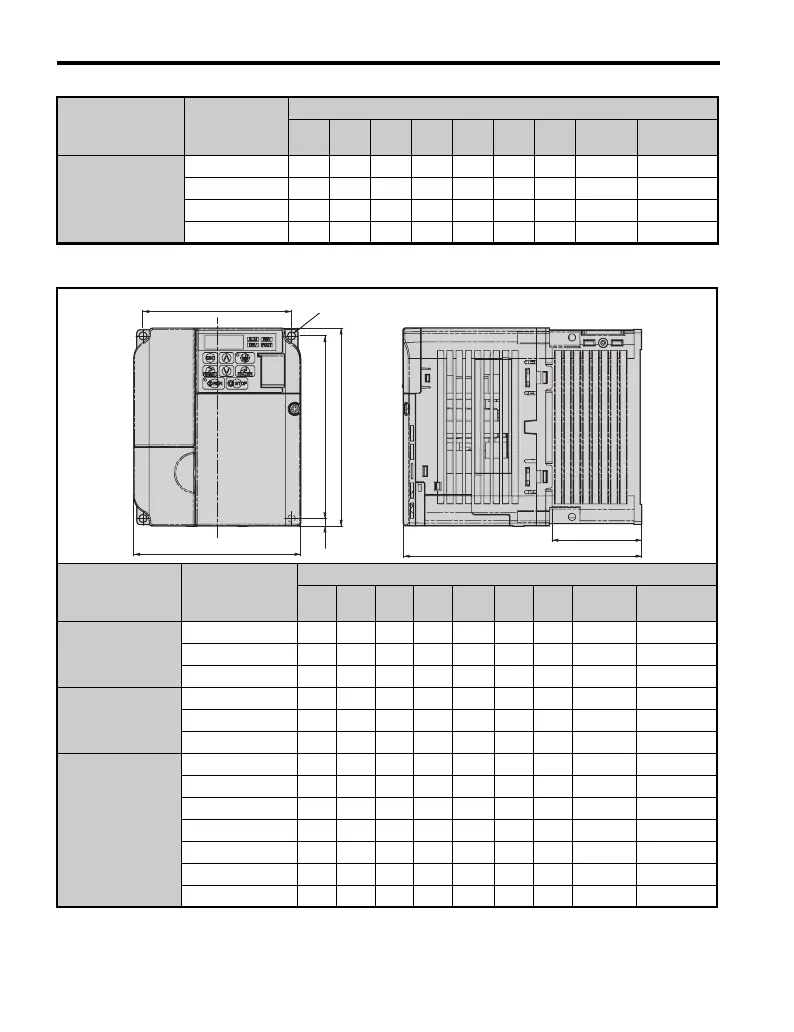

Table 2.5 IP20/Open-Chassis (without an EMC filter; metric)
Three-Phase
200 V Class
2A0001A 3.78 4.65 4.25 5.04 5.08 0.20 2.28 0.6 M4
2A0002A 3.78 4.65 4.25 5.04 5.41 0.20 2.28 0.6 M4
2A0004A 5.04 4.65 5.51 5.04 5.63 0.20 2.56 1.0 M4
2A0006A 3.78 4.65 4.25 5.04 5.08 0.20 2.28 0.6 M4
Voltage Class
Model
CIMR-V
Dimensions (mm)
W1 H1 W H D H2 D1
Weight
(kg)
Installation
Holes
Single-Phase
200 V Class
BA0006A 96 118 108 128 137.5 5 58 1.5 M4
BA0010A 96 118 108 128 154 5 58 1.5 M4
BA0012A 128 118 140 128 163 5 65 2.1 M4
Three-Phase
200 V Class
2A0010A 96 118 108 128 129 5 58 1.3 M4
2A0012A 96 118 108 128 137.5 5 58 1.4 M4
2A0020A 128 118 140 128 143 5 65 2.1 M4
Three-Phase
400 V Class
4A0001A 96 118 108 128 81 5 10 0.8 M4
4A0002A 96 118 108 128 99 5 28 1.0 M4
4A0004A 96 118 108 128 137.5 5 58 1.4 M4
4A0005A 96 118 108 128 154 5 58 1.5 M4
4A0007A 96 118 108 128 154 5 58 1.5 M4
4A0009A 96 118 108 128 154 5 58 1.5 M4
4A0011A 128 118 140 128 143 5 65 2.1 M4
Voltage Class
Model
CIMR-V
Dimensions (in)
W1 H1 W H D H2 D1
Weight
(lb.)
Installation
Holes
D
D1
4-M4
H
W1
W
H2 H1

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
