3.8 I/O Connections
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 85
Electrical Installation
3
■ Transistor Input Signal Using 0 V Common/Sink Mode
If the digital inputs shall be controlled by NPN transistors (0 V common / sinking
mode), set the DIP switch S3 to SINK. The internal 24 V power supply must be
used.

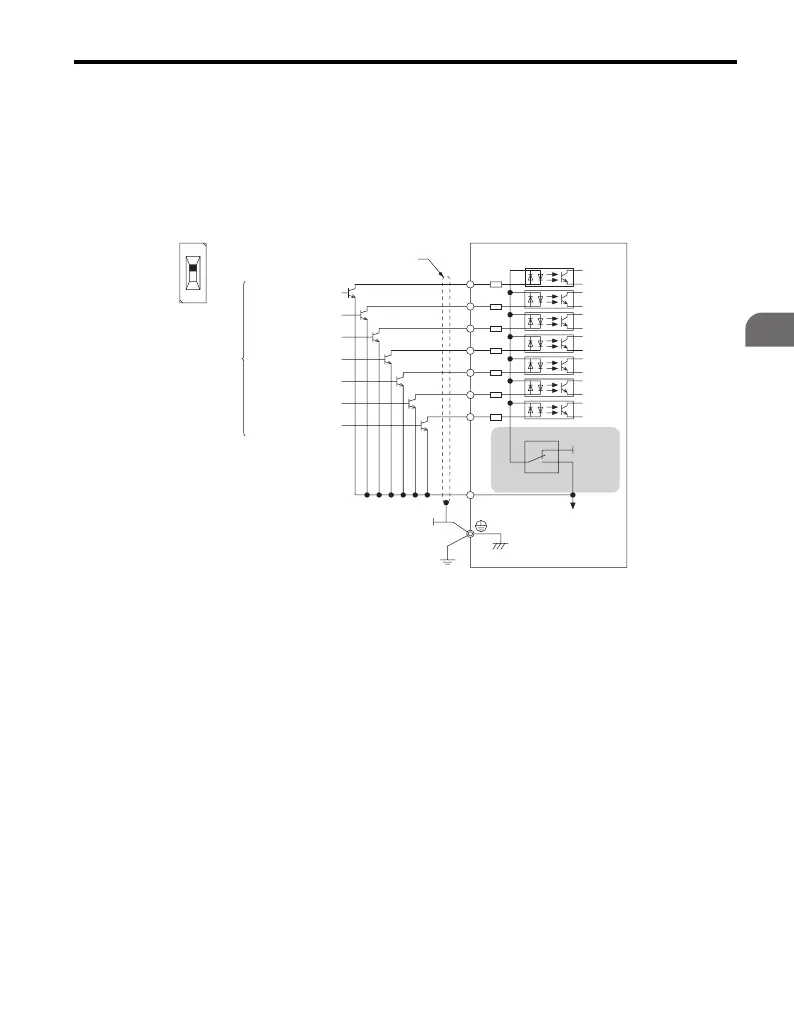

Figure 3.25
Figure 3.25 Sinking Mode: Sequence from NPN Transistor
(0 V Common)
Drive
Shielded cable
Forward run/stop
Reverse run/stop
External fault N.O.
Fault reset
Multi-speed step 1
Multi-speed step 2
Jog reference
Multi-function input
S1
SINK
SOURCE
S2
S3
S3
+24V
S4
S5
S6
S7
SC
SINK
SOURCE
