Description and Basic Operation of the SDA-5500 and 5510: Basic Modes of Operation
243
13

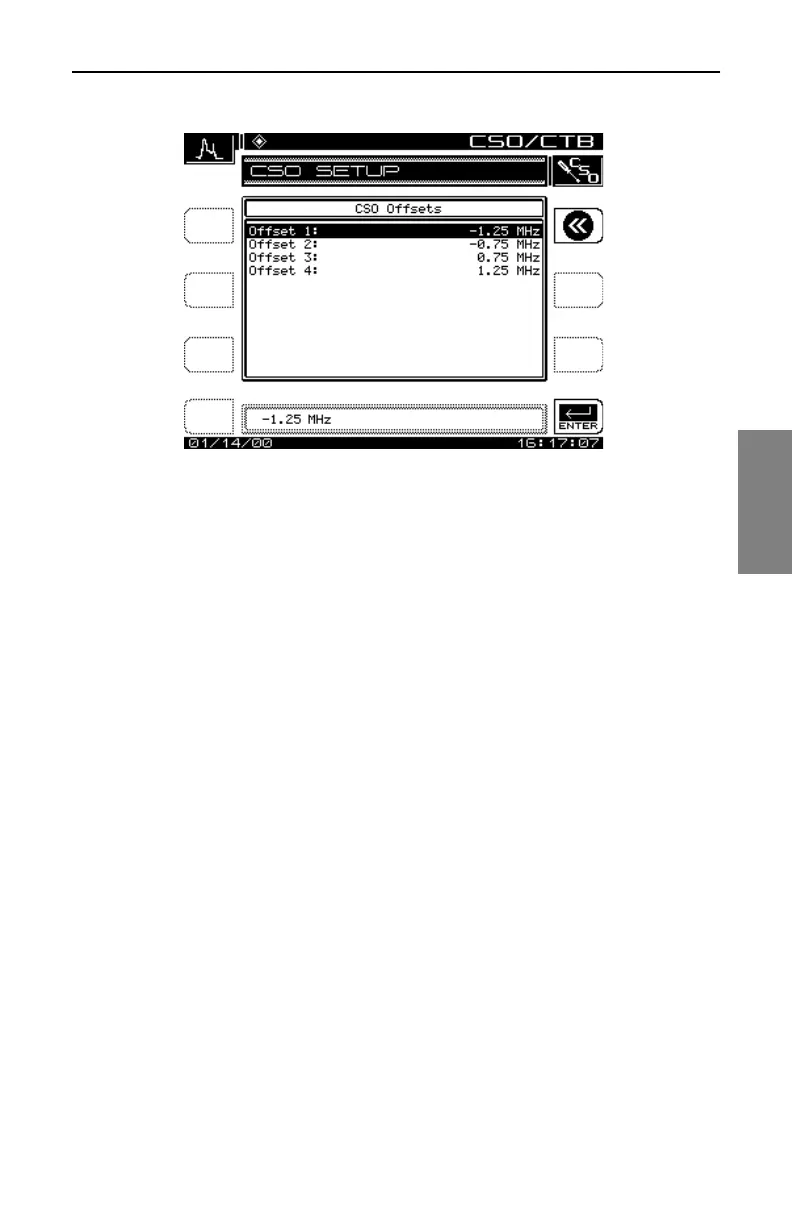

Fig. 13-18 The CSO SETUP Screen
When exiting out of the CSO/CTB measurement, the unit will prompt you to
turn the carrier back on.
Sweep Mode (SDA-5500)
The Transmitter Sweep mode operates the same as the Scan mode with the
following exceptions:
• Sweep telemetry is transmitted
• Sweep points are injected
• Sweep point levels are displayed in the graph
