Description and Basic Operation of the SDA-5500 and 5510: Basic Modes of Operation
244
13

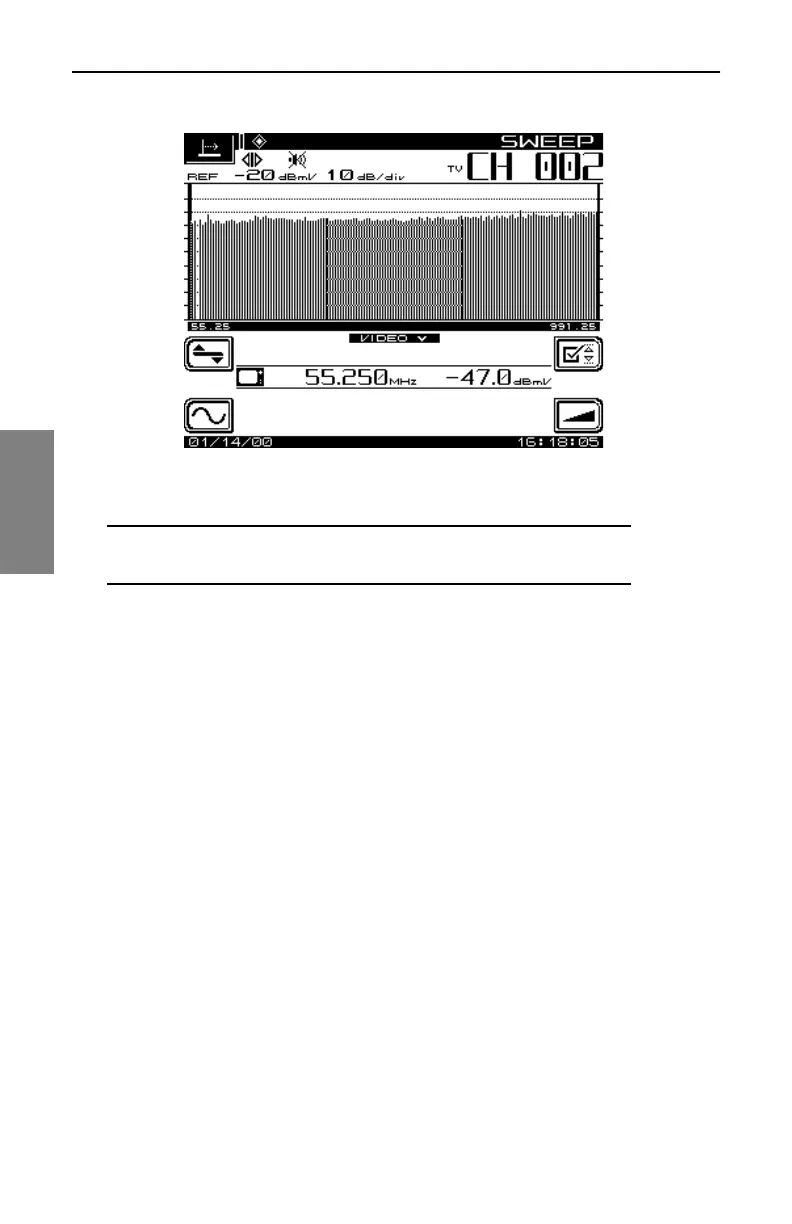

Fig. 13-19 The SWEEP Mode Screen (SDA-5500)
NOTE: Sweep telemetry will cease when another mode is
selected.
Sweep Mode (SDA-5510)
The Sweep mode displays information about the current condition of noise
and ingress in the headend and provides feedback to the field (see Fig. 13-
19 and 13-20). Even if the noise or ingress is swamping the telemetry, a
picture of the headend noise/ingress is sent out to the receiver via a special
forward telemetry for display.
