5DX Series 3 Surface Map Subsystem Components
Laser View Camera
The Laser View Camera, shown in Figure 7-5, is used as a visual aid to verify the
Surface Map locations and to safely view machine operation during X-ray
emissions. When two lasers are used as in the wide panel option, two cameras are
installed

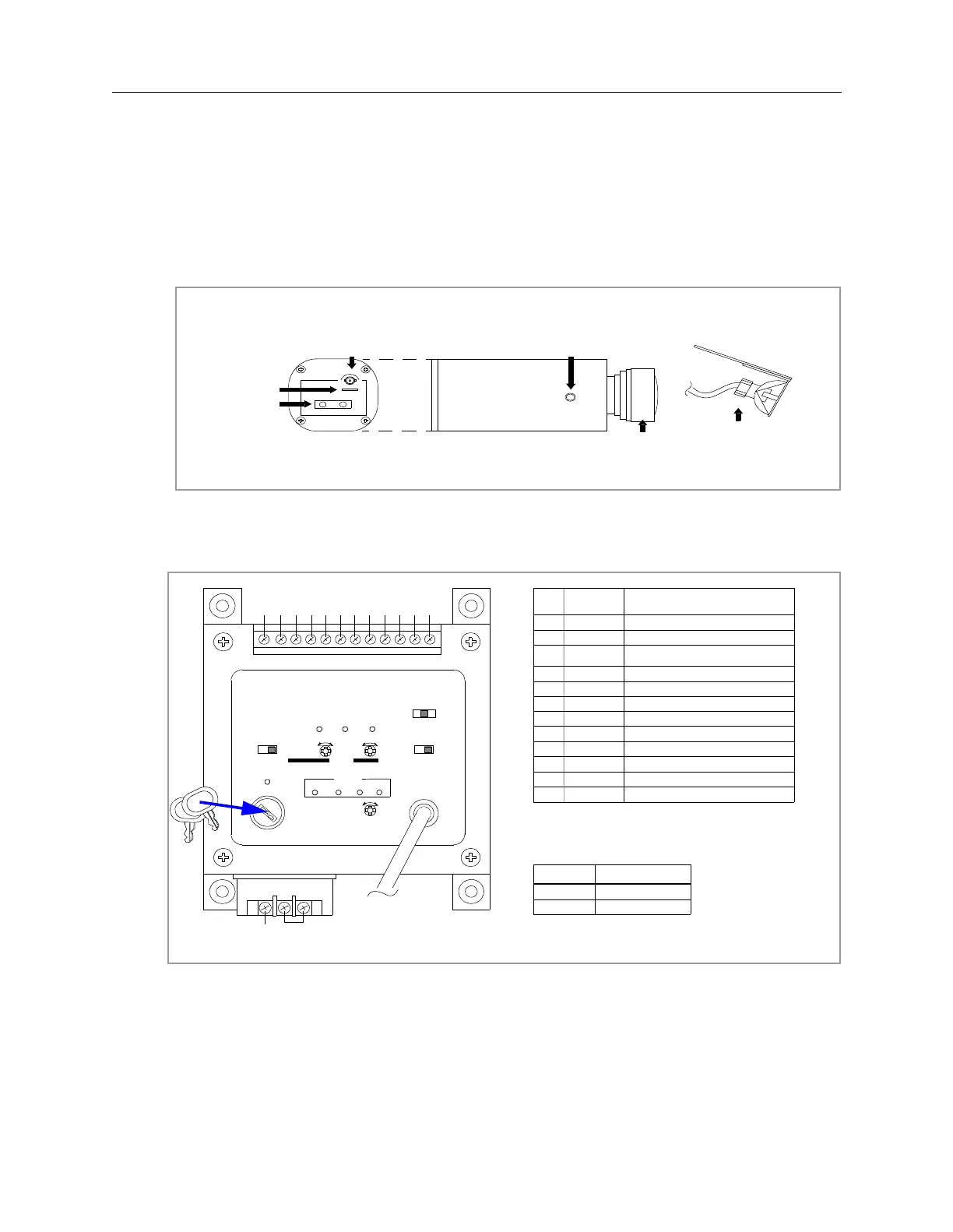

Figure 7-5: Laser View Camera and Halogen Lamp
Figure 7-6: Laser Displacement Sensor
V-PHASE
C
CS
LENS
(CONNECTION VIEW) (SIDE VIEW)
HALOGEN LAMP, 12w
(+)
(-)
POWER
CONNECTIONS
VERTICAL PHASE
ADJUSTMENT
BACK FOCUS
NTSC
VIDEO
OUT
FOCAL ADJUSTMENT
PN: 050032.000
NARROW / WIDE
UP / OUT / LOW
20 mS / 1 mS
RESPONSEHYSTERESIS
ONOFF
MX1A
ZERO ADJ.
DARK BRIGHT FAR NEAR
SENSOR
MONITOR
UPPER ENABLE LOWER
CHECK
U/L SET
POWER
123456789101112
1
2
3
4
5
6
7
8
9
10
11
12
FG
AG
A. OUT
LOWER
U/L COM
UPPER
AL OUT
AL COM
ENBL
ENBL (-)
LD RMT
LD RMT (-)
FRAME GROUND
ANALOG GROUND
MEASURED ANALOG OUTPUT
LOWER LIMIT INSPECTION
INSPECTION OUTPUT COMMON
UPPER LIMIT INSPECTION OUTPUT
ALARM OUTPUT
ALARM OUTPUT COMMON
ENABLE INPUT
ENABLE INPUT (-)
LASER DIODE REMOTE INTERLOCK
LASER DIODE REMOTE INTERLOCK (-)
INSPECTION OUTPUT PRESET VALUE
NO. TERMINAL FUNCTION
NAME
FG
AC
FRAME GROUND
AC TERMINALS
TERMINAL FUNCTION
FG AC
