5-22 Panel Handling Subsystem
XYZ Stage Assembly 5DX Series 3
XYZ Stage Panel Conveyor Belts
There are two Panel Conveyor Belts within the XYZ Stage Assembly. Figure 5-12
shows the positioning of the Panel Conveyor Belt around the rollers and Panel
Conveyor Motor for one side of the loader assembly. The opposite side is a mirror
image of that shown.
The XYZ Stage Panel Conveyor Motors drive the Panel Conveyor Belts. Refer to
the XYZ Stage Panel Conveyor Motors on page 5-21 for information about
turning them on and off and changing the direction of the belt movement.

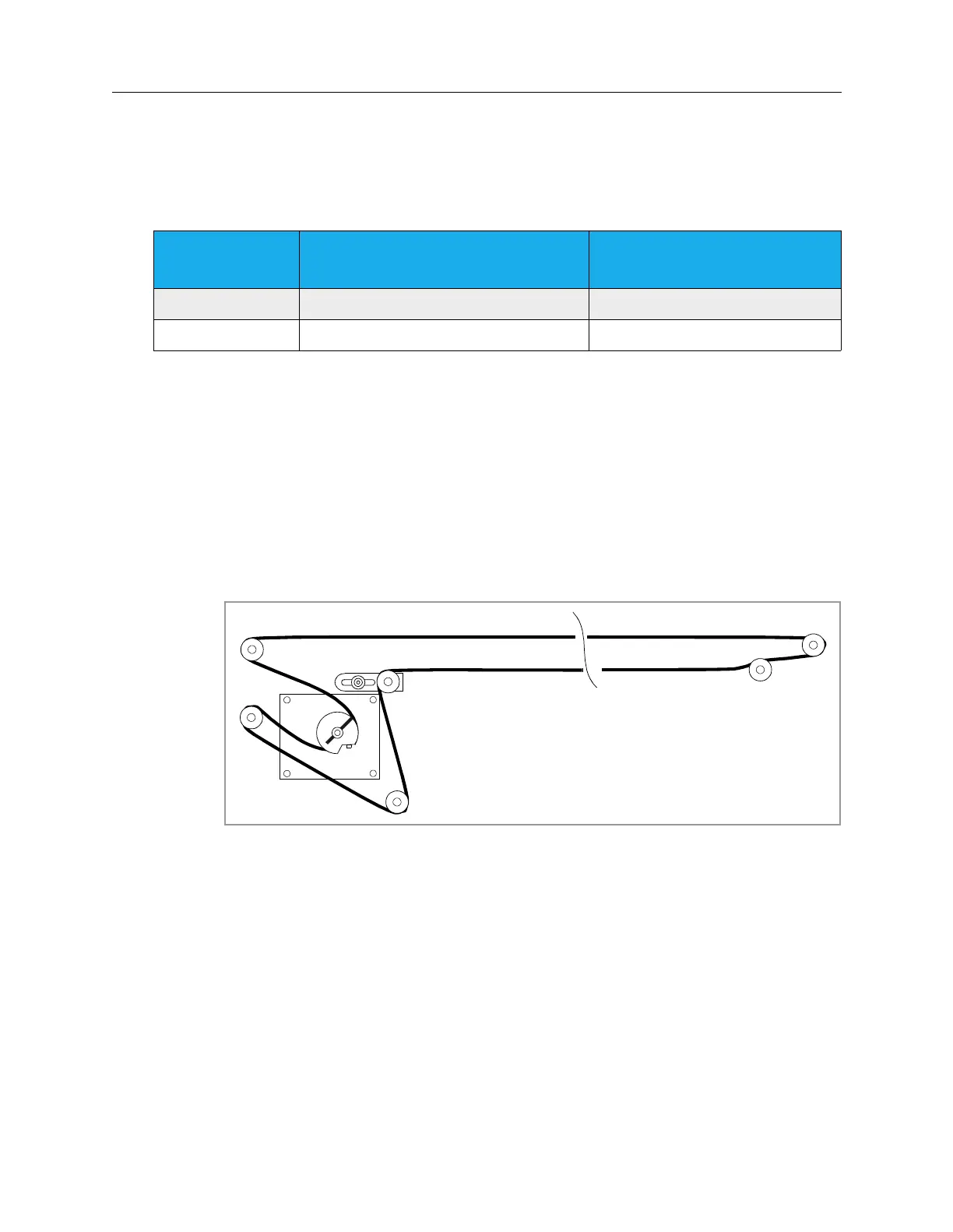

Figure 5-12: XYZ Stage Panel Conveyor Belt
Table 5-2: XYZ Stage Panel Conveyor Motors
Output Bit
Number
Hardware Status and Control
Description
Digital I/O Assembly
Description
26 XYZ Stage Belts On/Off Enable XYZ Stage Belts
25 Belt Direction Reversed/Forward Reverse Belt Direction
