Agilent Technologies 5DX Service Guide

6-16 Pneumatic Subsystem
Pneumatic Subsystem Components 5DX Series 3
Adjustment/Replacement of the Inner Barrier Encoder

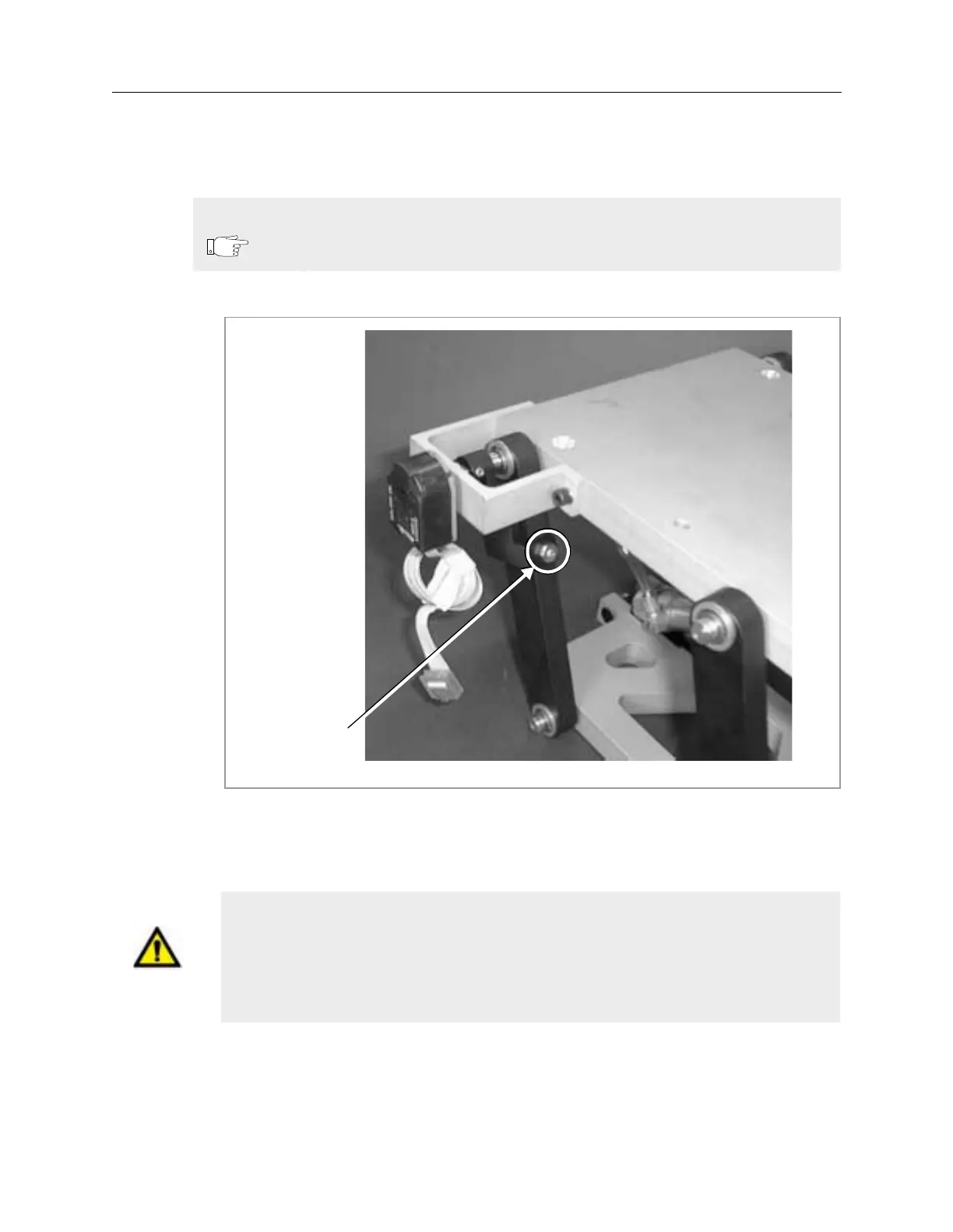

Figure 6-10: Positioning of the Encoder Bracket Nut
1. Shut down the 5DX System.
a. Select System Access and press Enter.
b. Select Shutdown and press Enter.
127( Some of the photographs in this section were taken with the Encoder
Cover removed to provide better visibility.
Caution Do not loosen the Encoder Arm Bracket Nut on the Inner Barrier Arm as shown
in Figure 6-10. The Encoder Arm Bracket’s clearance has been adjusted at the
factory. Removal of the Encoder Arm Bracket Nut will result in the clearance
adjustment being changed. This may cause problems with the Inner Barrier’s
movement.
DO NOT
loosen the
Encoder Arm
Bracket Nut!
