Adjusting the Outer Barrier’s Secondary Safety Interlock
Required Tools
• Secondary Gap Adjuster (E7200-07967), shown in Figure 3-18
• 9/16-inch open-end wrench
• T-10 Torx driver
• Ohmmeter with clip style test leads

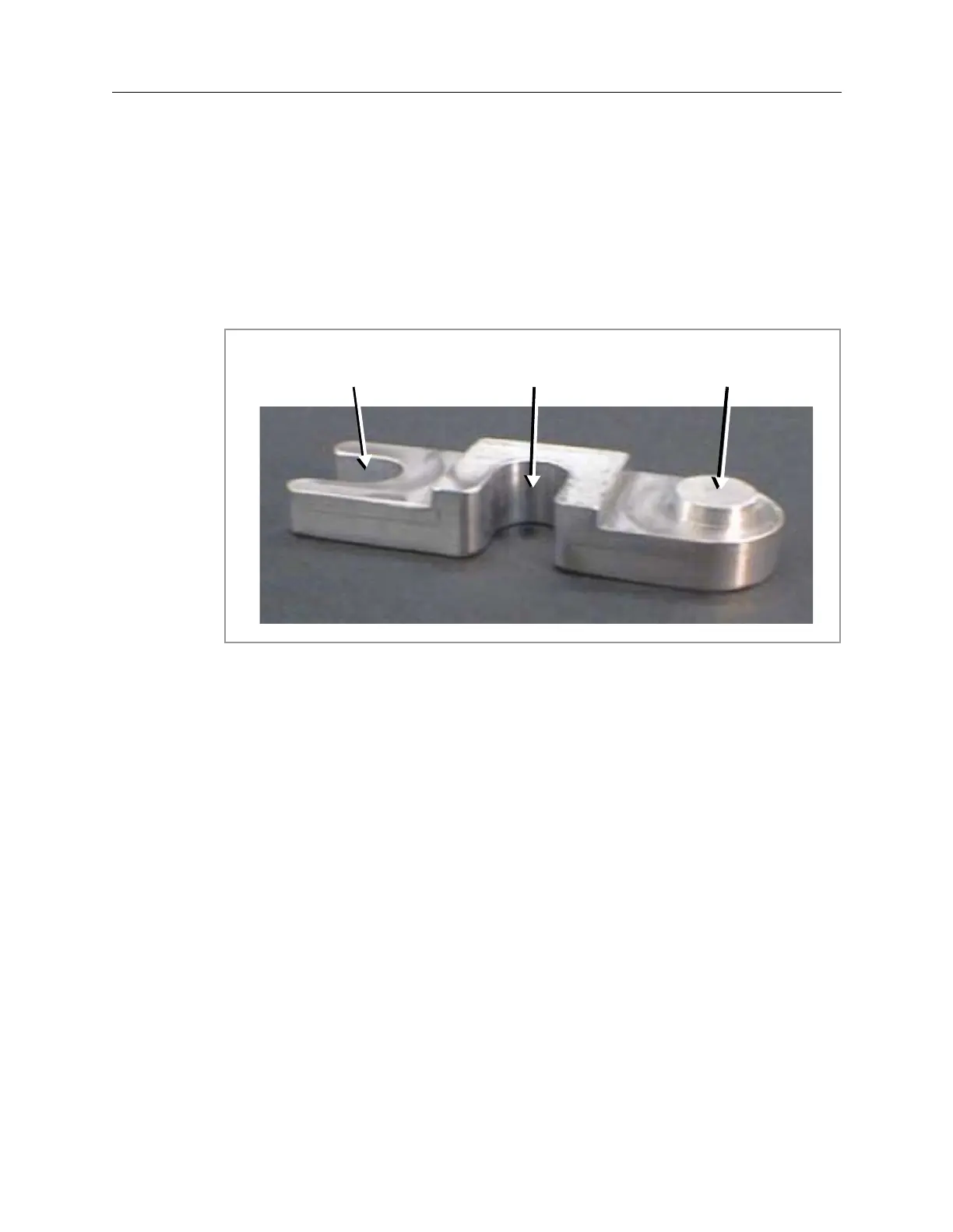

Figure 3-18: Secondary Gap Adjuster
ButtonLower Slot Higher Slot
