Agilent Technologies 5DX Service Guide

3-8 Safety Interlock Subsystem
Safety Interlock Switches 5DX Series 3
Safety Interlock Switches
There are different types of safety interlock switches within the 5DX System. The
type of switch used depends on the application. The sliding access panels use a
switch as shown in Figure 3-4. To open a sliding access panel requires the use of a
key.

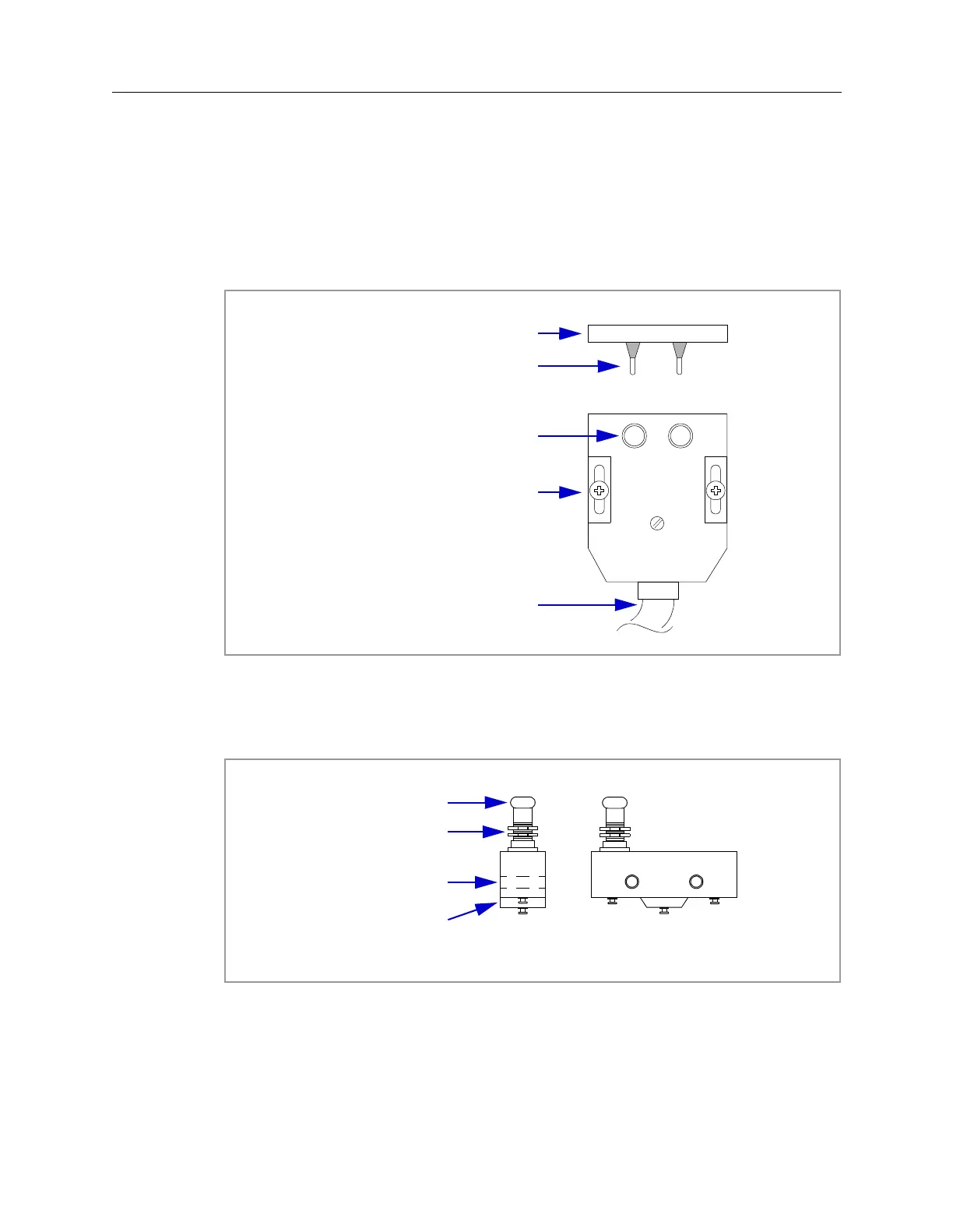

Figure 3-4: Safety Interlock Switch for the Sliding Access Panels
The side and top access panels use a switch as shown in Figure 3-5. To open a side
or top access panel requires the use of a screwdriver.
Figure 3-5: Safety Interlock Switch for the Side and Top Access Panels
Single Level Contactors
(Contactor View)
(Top Down View)
Jumpered Terminals
Contacts
Adjustable Bulkhead
Fasteners
Safety Interlock
Chain Cable
BZ-2RQ1-A2
15AMP
Plunger
Busing Mount
Mount Hole
Terminal
Connections
