3-18 Safety Interlock Subsystem
Operator Control Console 5DX Series 3
25. Remove the Gap Adjuster. To do this, gently pull back on the Inner Barrier half
and remove the Gap Adjuster. Guide the Inner Barrier half back into position.
26. Unplug the cable from the Cable Adapter.
27. Reinstall the cable in connector J25032.
28. Close all access panels.
Adjusting the Outer Barrier’s Primary Safety Interlock
Required Tools
• Primary Gap Adjuster (E7200-07966), shown in Figure 3-15
• Ohmmeter with clip style test leads
• T-10 Torx drive

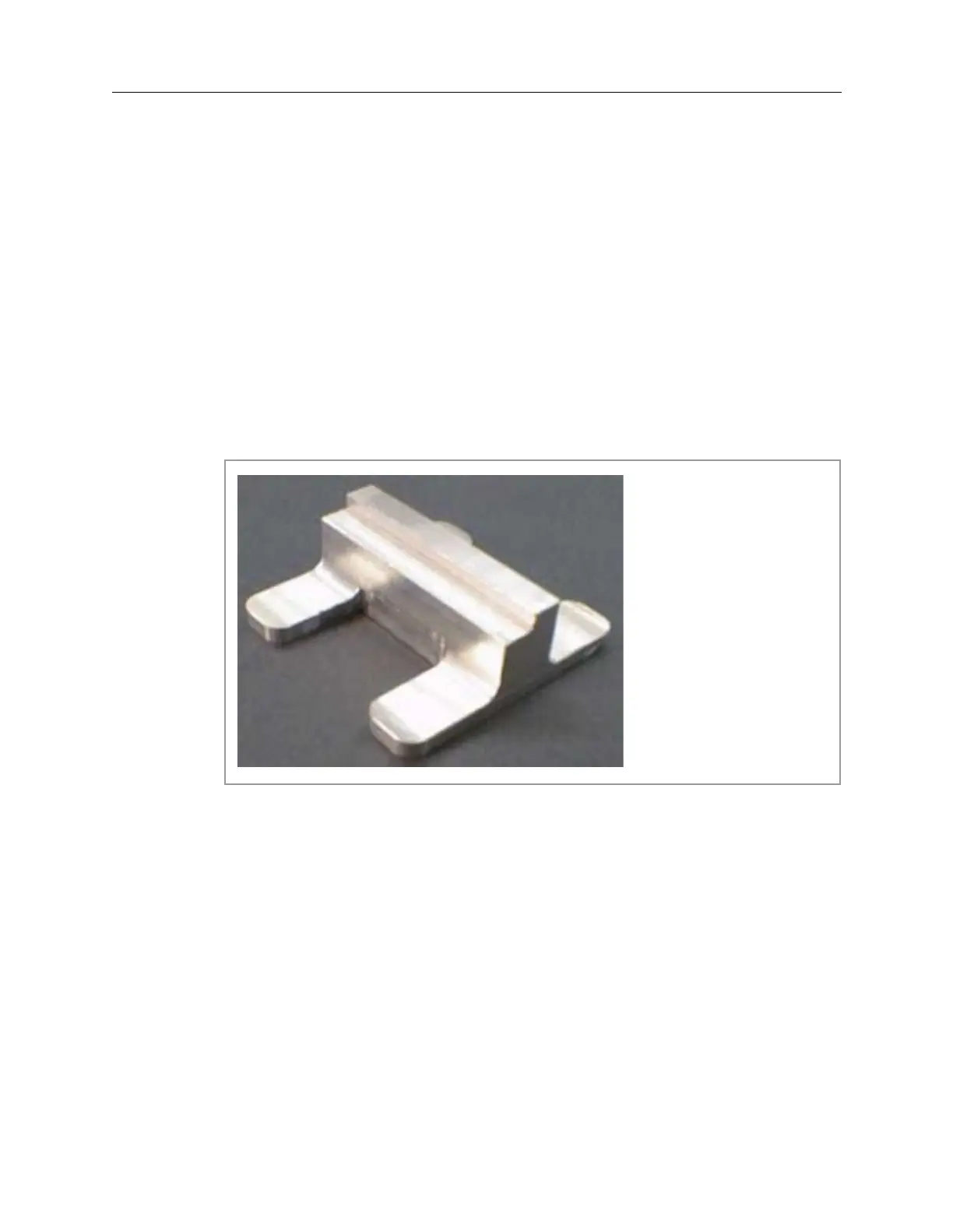

Figure 3-15: Primary Gap Adjuster
