7-10 Surface Map Subsystem
Surface Map Subsystem Components 5DX Series 3
Panel View Camera.
The Panel View Camera, shown in Figure 7-7, is a Watec™, Model WAT-308A,
Charged Coupled Device (CCD) Camera, which operates on 12 volts dc. The
Panel View Camera is used to view a panel during Surface Map setup, and to
verify the orientation of the panel inside the 5DX System.

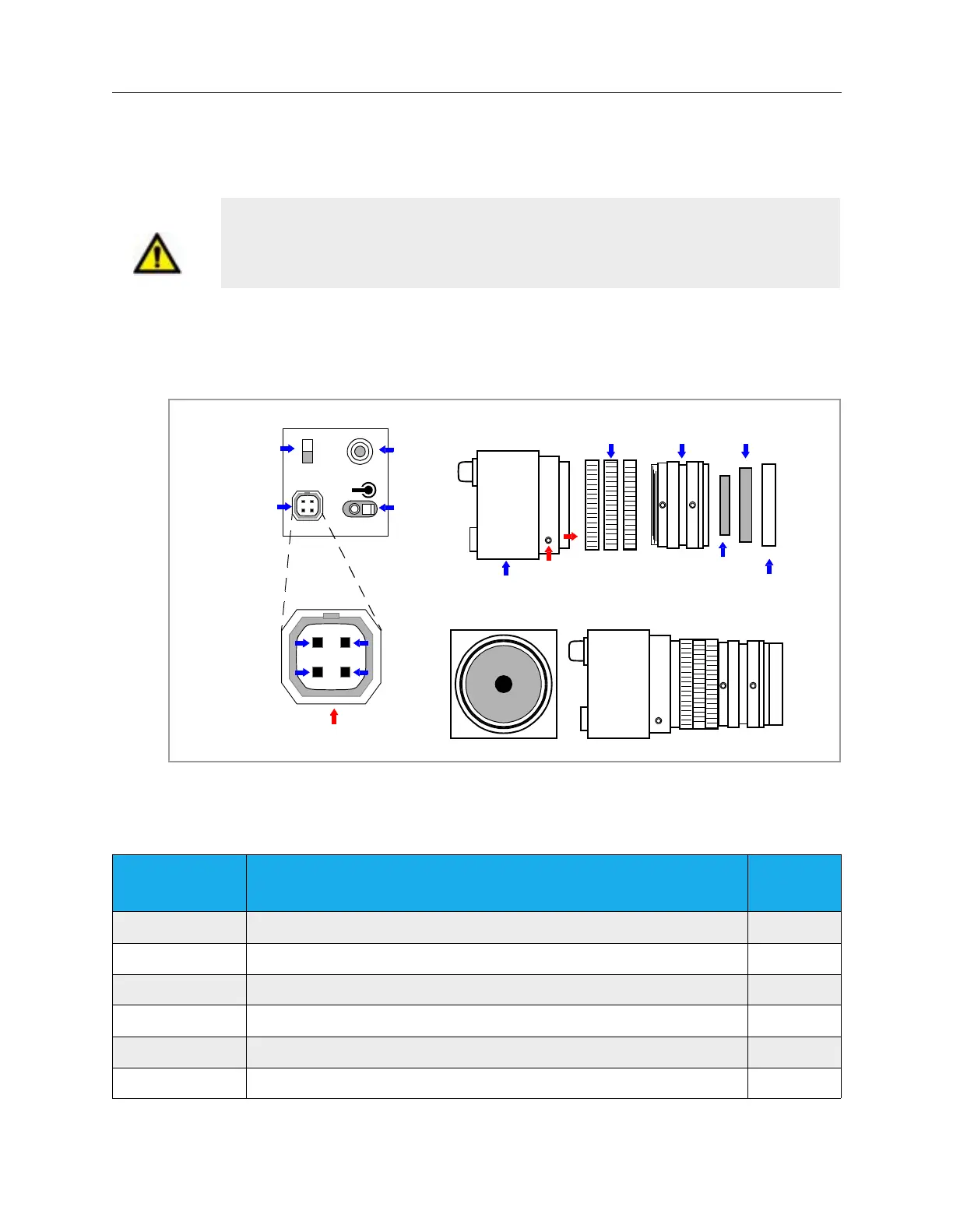

Figure 7-7: Panel View CCD Camera and Halogen Lamp
Caution Do not connect this camera to a 12 volts ac source as this will destroy the unit.
Table 7-1: Panel View Camera Assembly Components
S/N Description
Qty. Per
Unit
090040-000 CCD Camera (12VDC) 1
090037-000 Tube Extensions (3) 3
090050-000 CS Mount Lens Assembly 1
090051-000 Lens Filter (with filter glass removed) 1
403568-101 Lead Lens Shield 1
403569-101 Infrared Lens Filter (glued to the back of the Lead Lens Shield) 1
AUTO IRIS
SHUTTER
(ON/OFF)
VIDEO OUT
POWER
(12VDC)
+
CCD CAMERA
CS MOUNT
LEAD LENS
FILTER
TUBE EXT.
(5mm SPACERS) SHIELD
LENS ASSY.
(W/ LENS
REMOVED)
(75 Ohm)
COMMON
CONTROL
+12VDC
COMMON
(GROUND)
SIGNAL
(GROUND)
Note:
Loosen Hex Nuts (3),
extend to max and re-tighten.
Accomplished to maximize
the depth of field.
Note:
Not currently used.
(APERTURE)
INFRARED
FILTER
To Next Page
