Chapter 5 Operating Modes

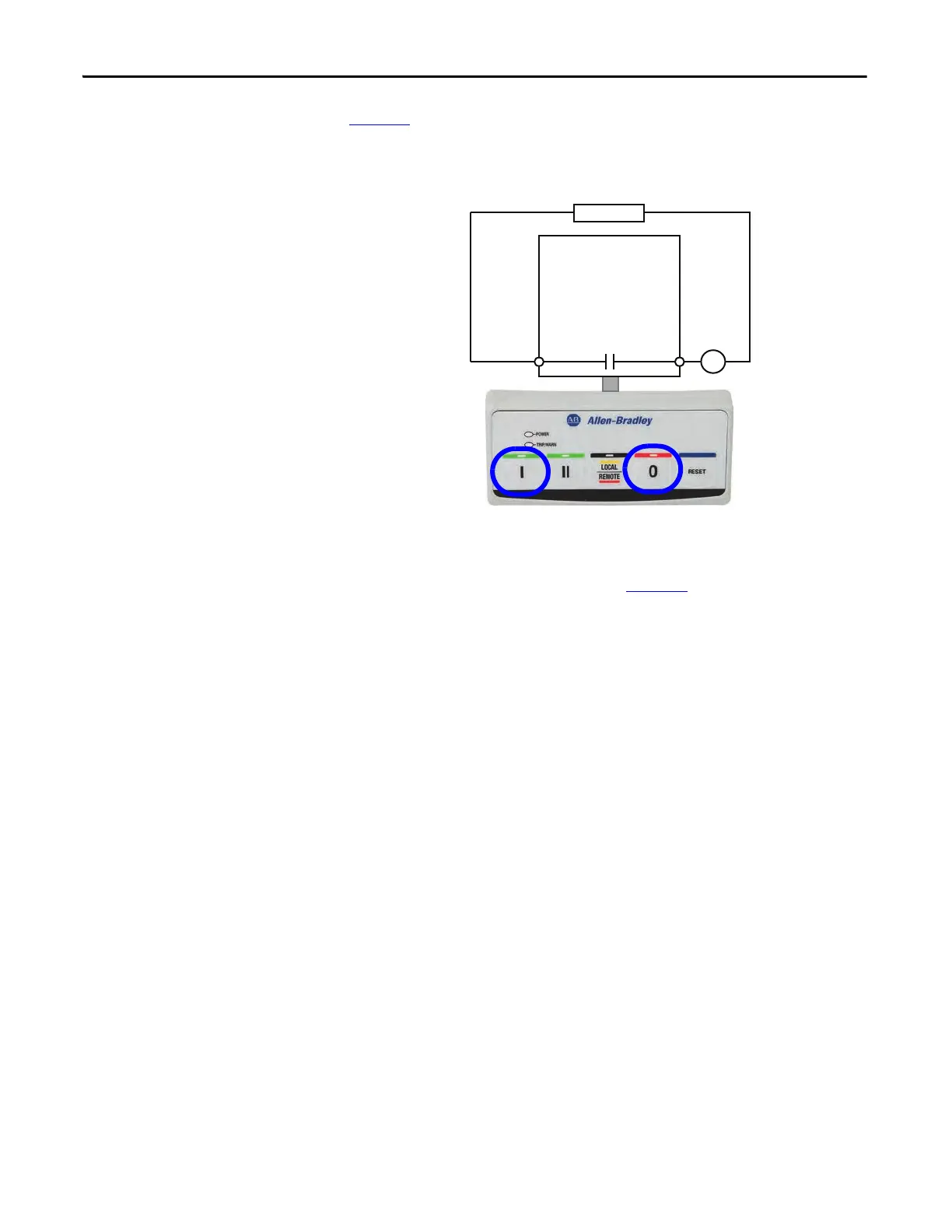

Figure 94 is a wiring diagram of a non-reversing starter with Output Relay 0
configured as a control relay.
Figure 94 - Non-reversing Starter (Network & Operator Station) Wiring Diagram
DeviceLogix Program
The DeviceLogix program that is shown in Figure 95 is automatically loaded and
enabled in the E300 on power-up or when Operating Mode (Parameter 195) is
set to a value of 11.
R03 R04
Relay 0
Run
E300
Control Power
I- Run 0- Stop
To Next Page
