Rockwell Automation Publication 193-UM015E-EN-P - October 2015 579
EtherNet/IP Communication Chapter 10
project and then manually upload the E300 relay configuration. See Manually
Adding a New Module on page 584 for information on how to manually add an
E300 relay and manually upload the configuration.
Module discovery identifies all of the available devices on an EtherNet/IP
network that an EtherNet/IP scanner is connected to. You can select a specific
preconfigured E300 relay that is on the EtherNet/IP network and upload the
E300 relay’s configuration data by following these steps:

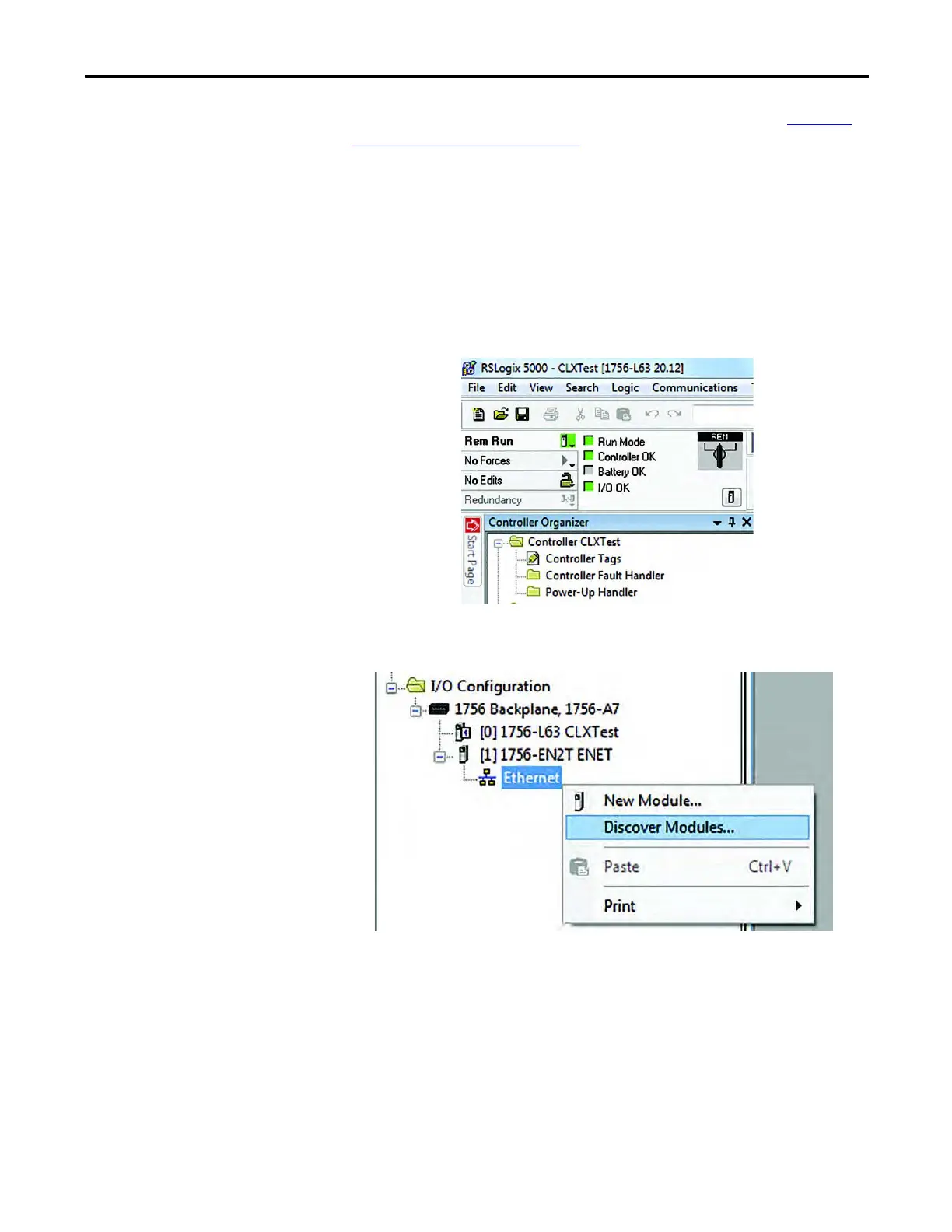

1. Go Online with the ControlLogix controller using RSLogix 5000 or
Studio 5000 software. The ControlLogix controller can be in Run or
Program mode.
2. Right click on the Ethernet tree of the EtherNet/IP scanner that is in the
ControlLogix chassis and select Discover Modules.
3. Choose the E300 relay to be added to the EtherNet/IP scanner’s scan list
and press Create.
