Rear Panel Connectors Connections
4-2 PN: 10585-00001 Rev. P ML2437A/38A OM/PM
Sensor B Connector (ML2438A only)
This connector is a 12-pin circular precision connector to be used in conjunction with power
sensor cables. An optional rear panel Channel B connector is offered as an alternative (see
figure below). If the rear panel connector option is installed, the front panel connector is not
installed.
4-2 Rear Panel Connectors
The Rear Panel connectors are shown in the figure below.
Note
Only MA2400A Series sensors can be connected directly to the ML243xA Power
Meters. MA4700A and MA4600A Series sensors require the MA2499A or
MA2499B Anritsu Sensor Adapter. MP-Series (10-pin) sensors require an
MA4001A or MA4002B adapter and an MA2499B.

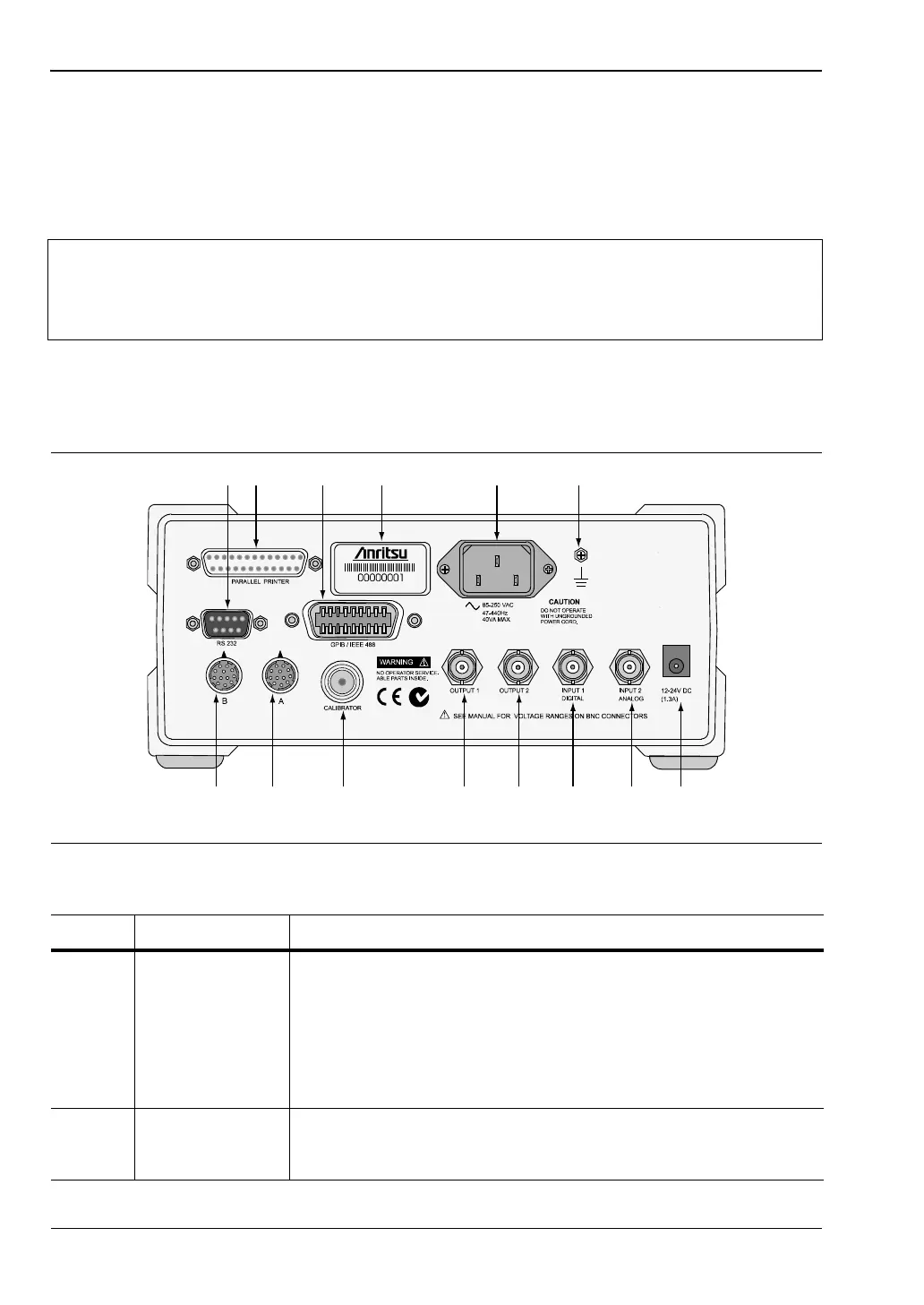

Figure 4-2. Rear Panel Connectors
Table 4-1. Rear Panel Connectors
Key Item Description
A RS232 Serial
Connector
Serial control and data output commands are entered using the
same format as the GPIB interface. Refer to chapter 5 for more
information on using Serial Remote Operation. Allows
communication with an Anritsu synthesizer in Source Sweep
mode. Also allows service access for software upgrades. The
hardware handshake lines RTS and CTS are used to control the
flow of data.
B Parallel Printer
Port
Provides an interface to a standard parallel printer. Compatible
printers include the Canon BJC80, HP340 Deskjet, and most
other 300 and 500 Series HP Deskjet printers.
A
G
CB
H I J K L M N
D E F
Made in USA
