Measurement Examples Example 5: Using Two Sensors
ML2437A/38A OM/PM PN: 10585-00001 Rev. P 7-13
7-5 Example 5: Using Two Sensors

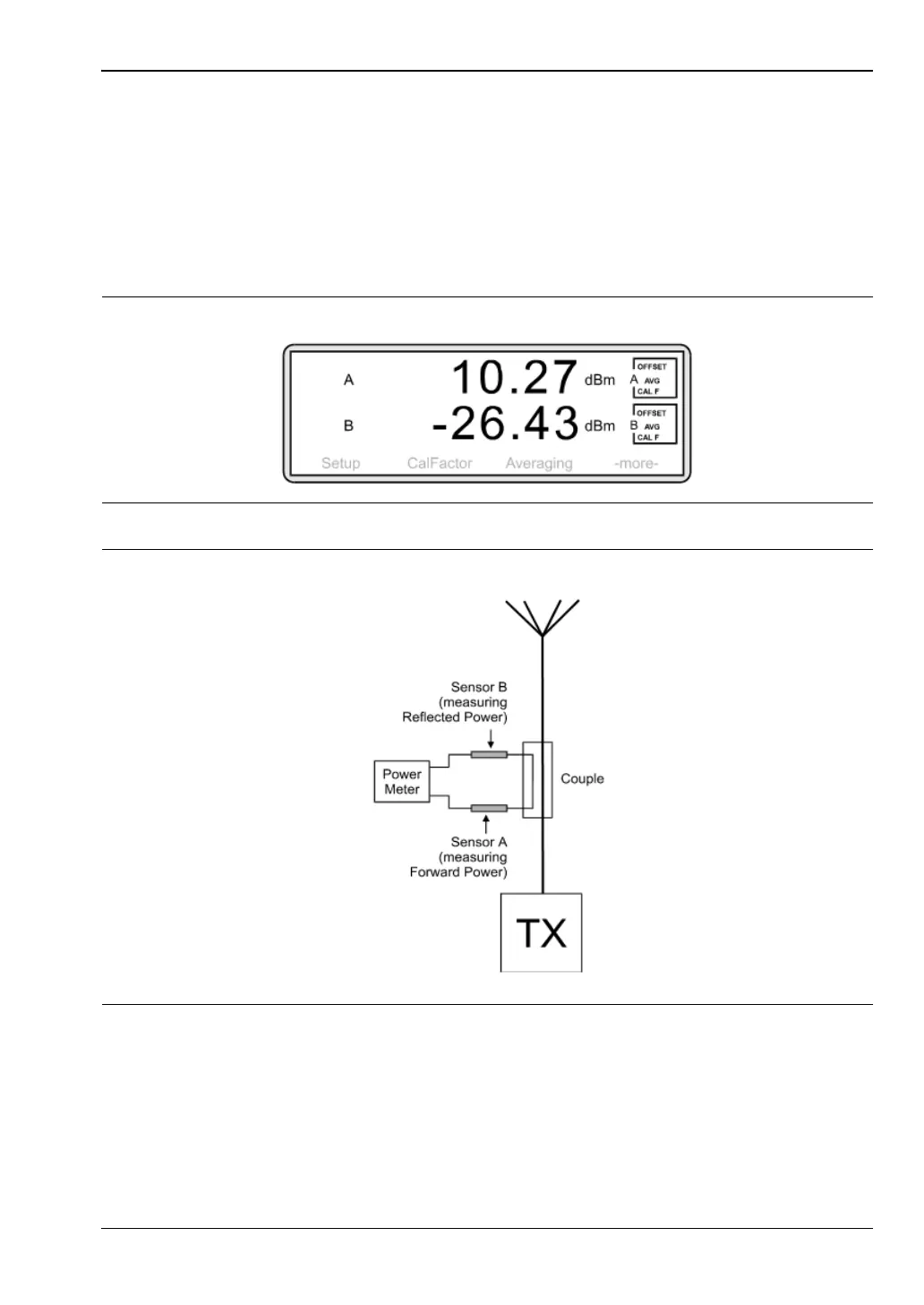

The Dual Input ML2438A allows for two sensors to be used simultaneously with the
Measurement screen showing both readings one above the other. One possible application for
this feature might be to measure the forward and reflected power on an antenna.
Channel 1 might be configured to show the measurement from sensor A with channel 2
showing the measurement from sensor B. The resulting Measurement screen may look like
this:
An offset has been applied to compensate for the coupling factor of the through line coupler.
In this example, sensor A is allocated to channel 1 and sensor B is allocated to channel 2. This
allocation can be changed as shown in Example 4.
Figure 7-20.
Figure 7-21.
