Measurement Examples Example 9: Displaying GSM-TDMA Bursts
ML2437A/38A OM/PM PN: 10585-00001 Rev. P 7-23
7-9 Example 9: Displaying GSM-TDMA Bursts
The principle for viewing and measuring GSM-TDMA bursts is similar to that for profiling
pulse signals. In this example, we will be measuring three GSM-TDMA bursts in an eight-slot
frame.
1. Changing from Readout to Profile mode
Press [System]
> [Setup].

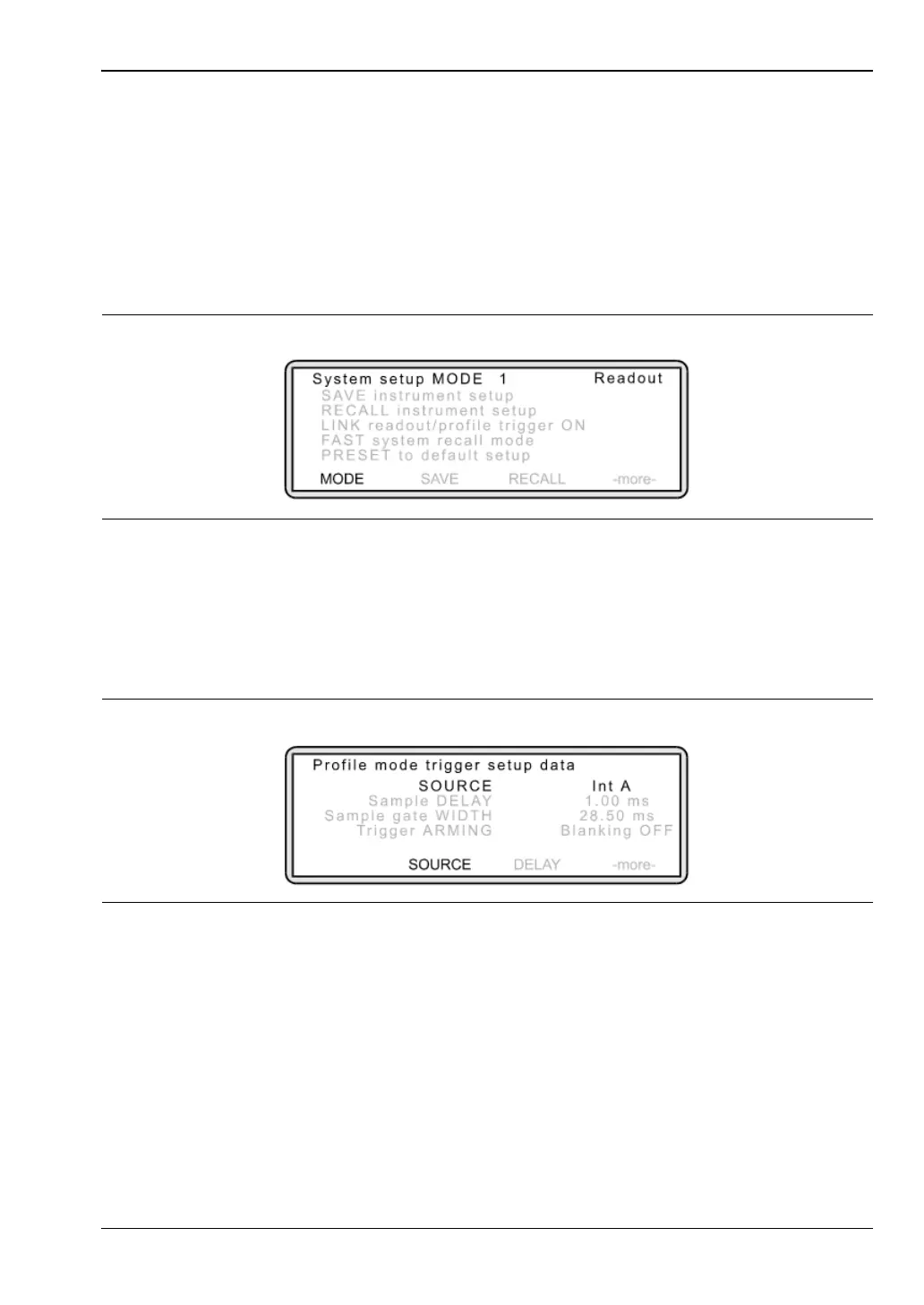

The following screen is displayed:
Press [MODE] and toggle this setting until "Profile" is displayed.
2. Set up the triggering attributes
Press [Trigger]
> [Setup]
The following screen is displayed:
Press [SOURCE] and toggle this setting until the trigger source you require displays.
Figure 7-35.
Figure 7-36.
Int A Take trigger from sensor A
Int B Take trigger from sensor B (ML2438A only)
EXTTTL Take trigger from an external source
MANUAL User triggers measurement from front panel soft key
CONTINUOUS Automatic continuous trigger on completion of measurement
cycle
