8. Lamp and lamp house
Image 8-8

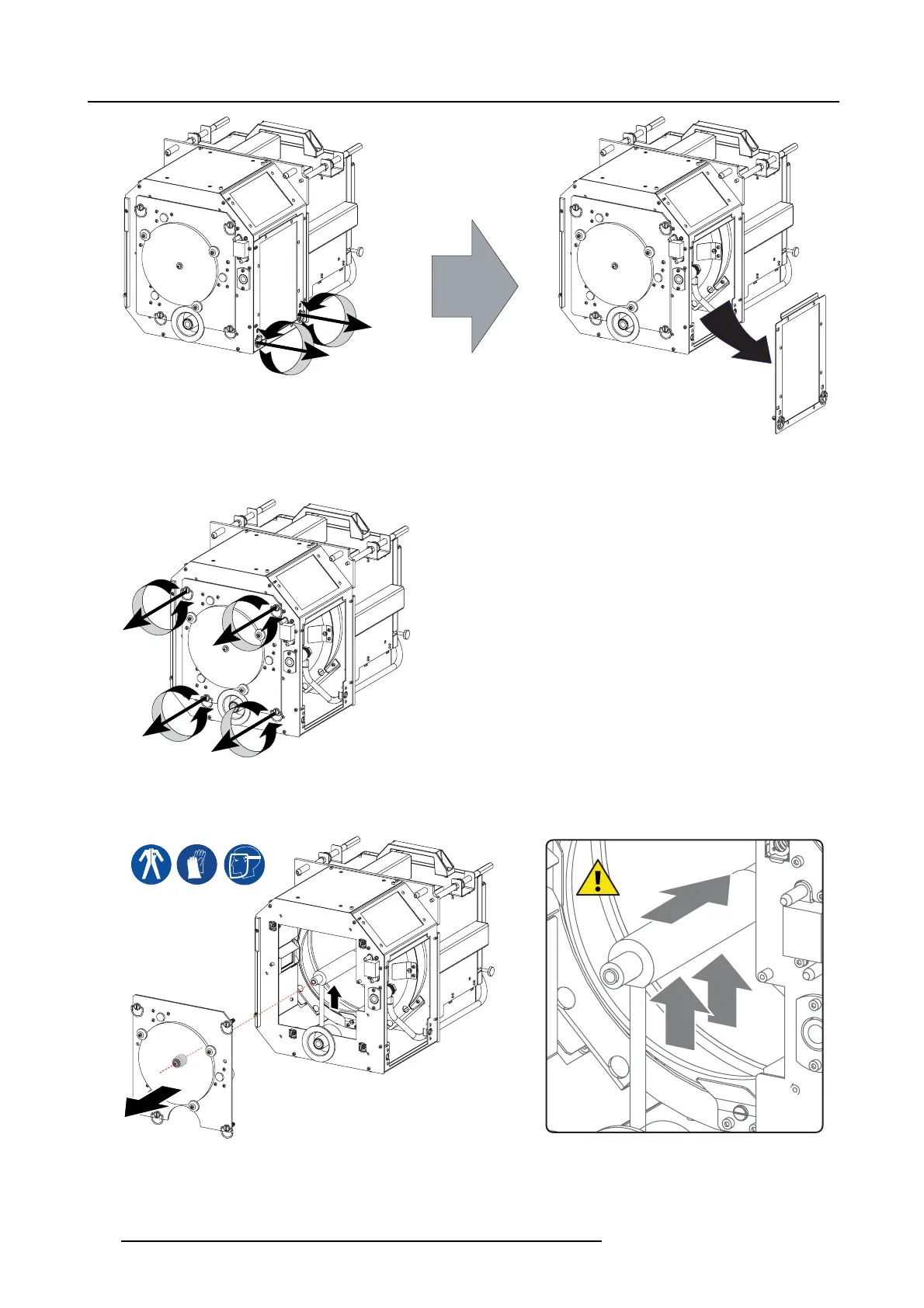

3. R elease the four retaining thumbs crew s of the UV blocker assembly as illustrated. M
ake sure that the UV blocker assem bly
remains in its position while releasing the s crews .
Image 8-9
4. S upport the xenon lamp inside the Lamp House with one hand while rem oving the UV blocker assembly from the Lamp House.
Note that some xenon lamps are installed with an anode adaptation bushing.
Caution: Ensure that you wear protective clothing, a full face shield and protective gloves.
Image 8-10
5. S lide the white anode socket, which is connected via a thick wire with the xenon lam p, upwards away from its position and then
remove the xenon lamp with anode socket from the Lamp House.
124
R5905312 HDF W SERIES 24/01/2013
