8. Lamp and lamp house
2,5 Nm
10
Image 8-23
Fasten cathode side

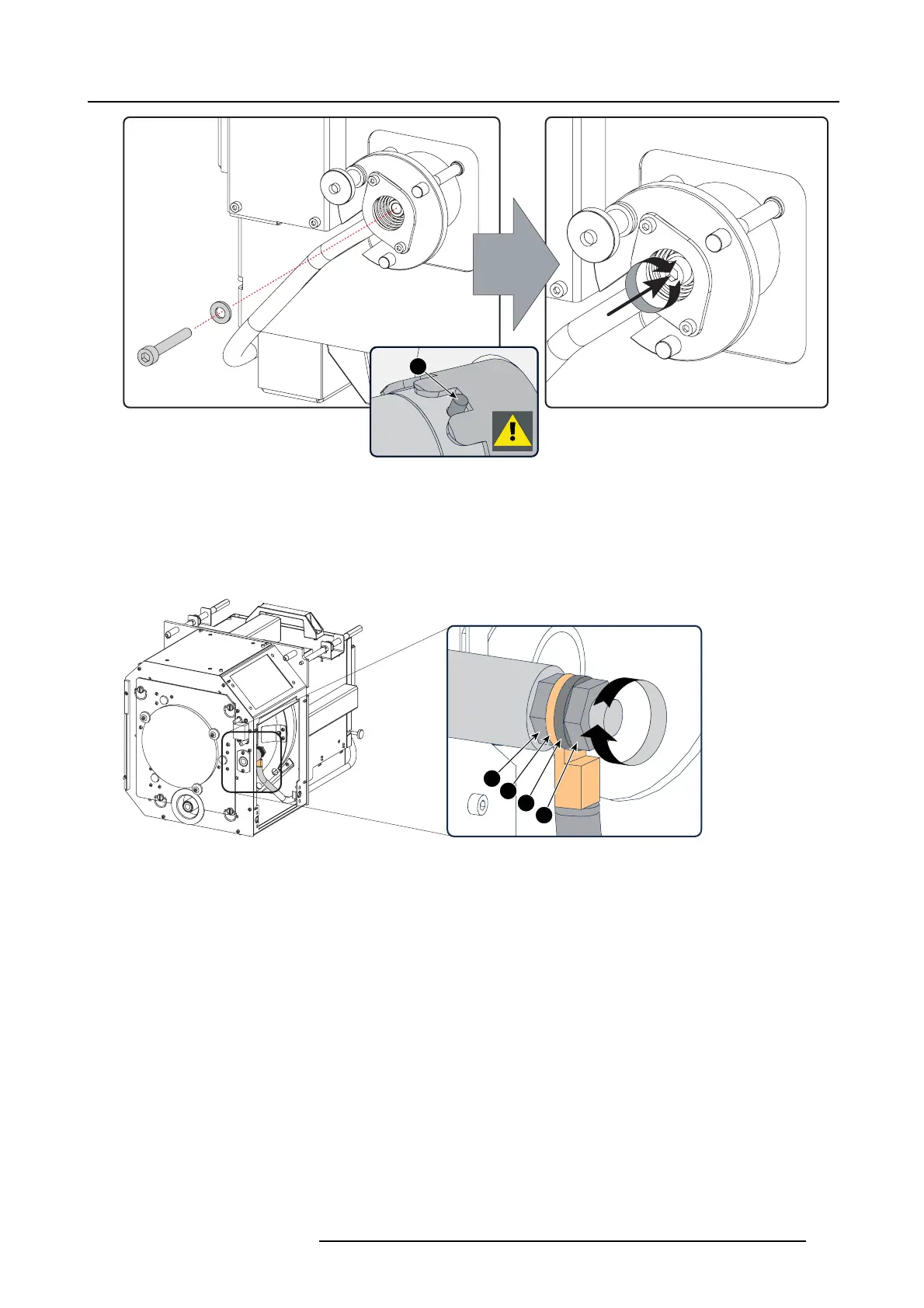

10.C heck the cathode connection inside the Lamp House. Use a 17 mm open-end wrench to hold the first nut while fastening the
second nut on the rod with a torque of 9Nm(6,64 lbf*ft) using a torque wrench with 17 mm hexagon socket. Ensure that there
is a flat washer (reference 3) between the lock nut and the w ire lug.
Caution: This cathode connection must be c heck ed with every lamp change!
Caution: Do not tighten the first nut (reference 1) against the connector housing. There m ust be some play (1 mm m aximum).
This is important to insert the Lamp House smoothly into the projector.
1
2
3
4
9Nm
Image 8-24
Check cathode connection
11.R einstall the side cover of the Lamp House as illustrated.
Note: Please ensure that the thumb screws turning wires are flash with the cover or interference will occur while in serting the
Lamp Ho use into the projector.
