Barco HDF W series Service Manual

14. Lenses and Lens Holder
3

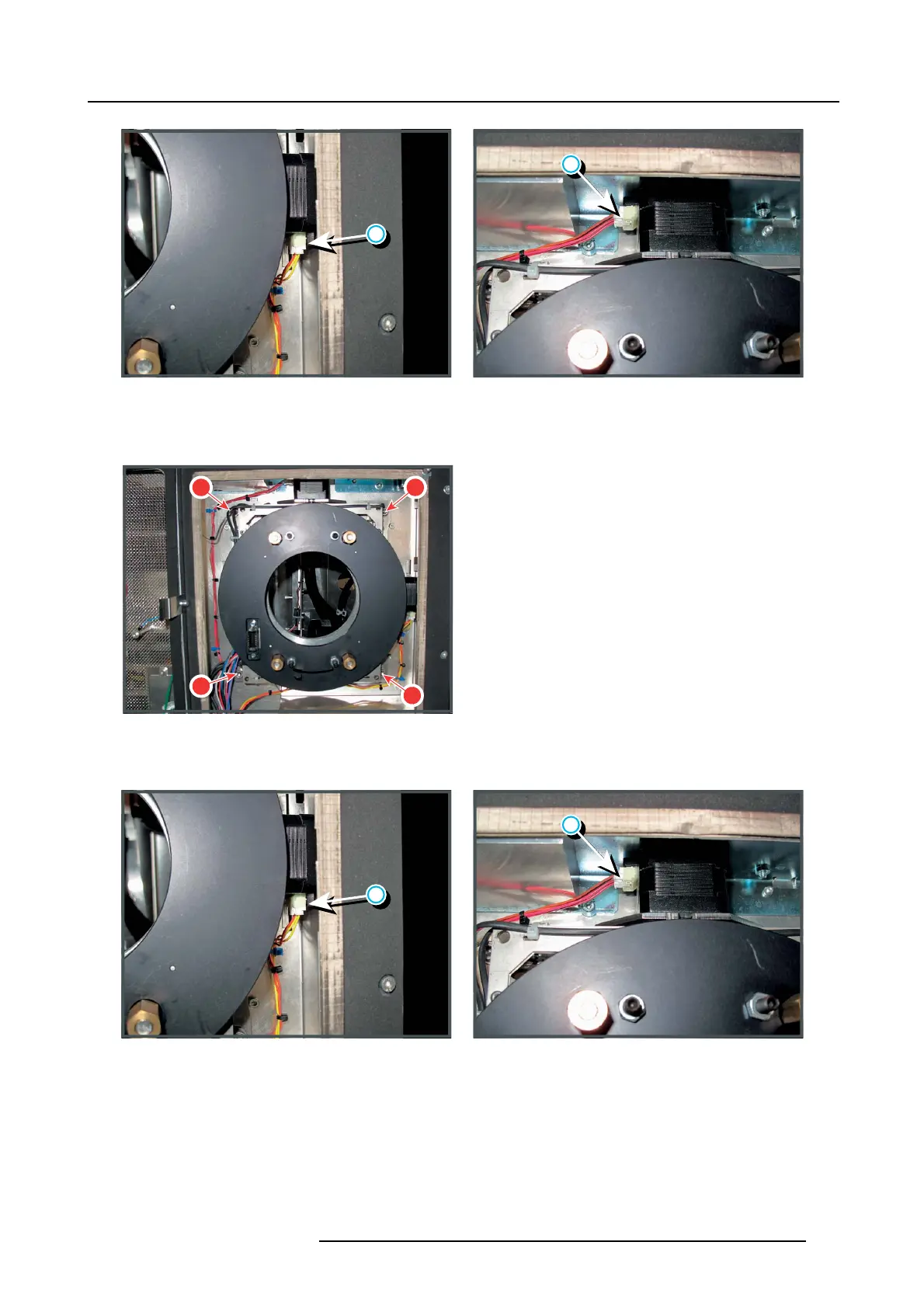

Image 14-27
4
Image 14-28
5. C ut the plastic cable tie if necessary.
6. R emov e the Lens Holder from the projector chassis by loosening the 4 screws (reference 5 image 14-29). Use a 5m m Allen
wrench.
5 5
5
5
Image 14-29
7. C onnect the wire unit (reference 3 image 14-30) of the horizontal shift motor a nd the wire unit (reference 4 image 14-31) of the
vertical shift motor.
3
Image 14-30
4
Image 14-31
8. M ount the EMC wire unit (reference 2 image 14-32) of the Lens Holder to the projector frame by driving in the fixation screw.
R5905312 HDF W SERIES 24/01/2013 227
