15. Liquid cooling circuit

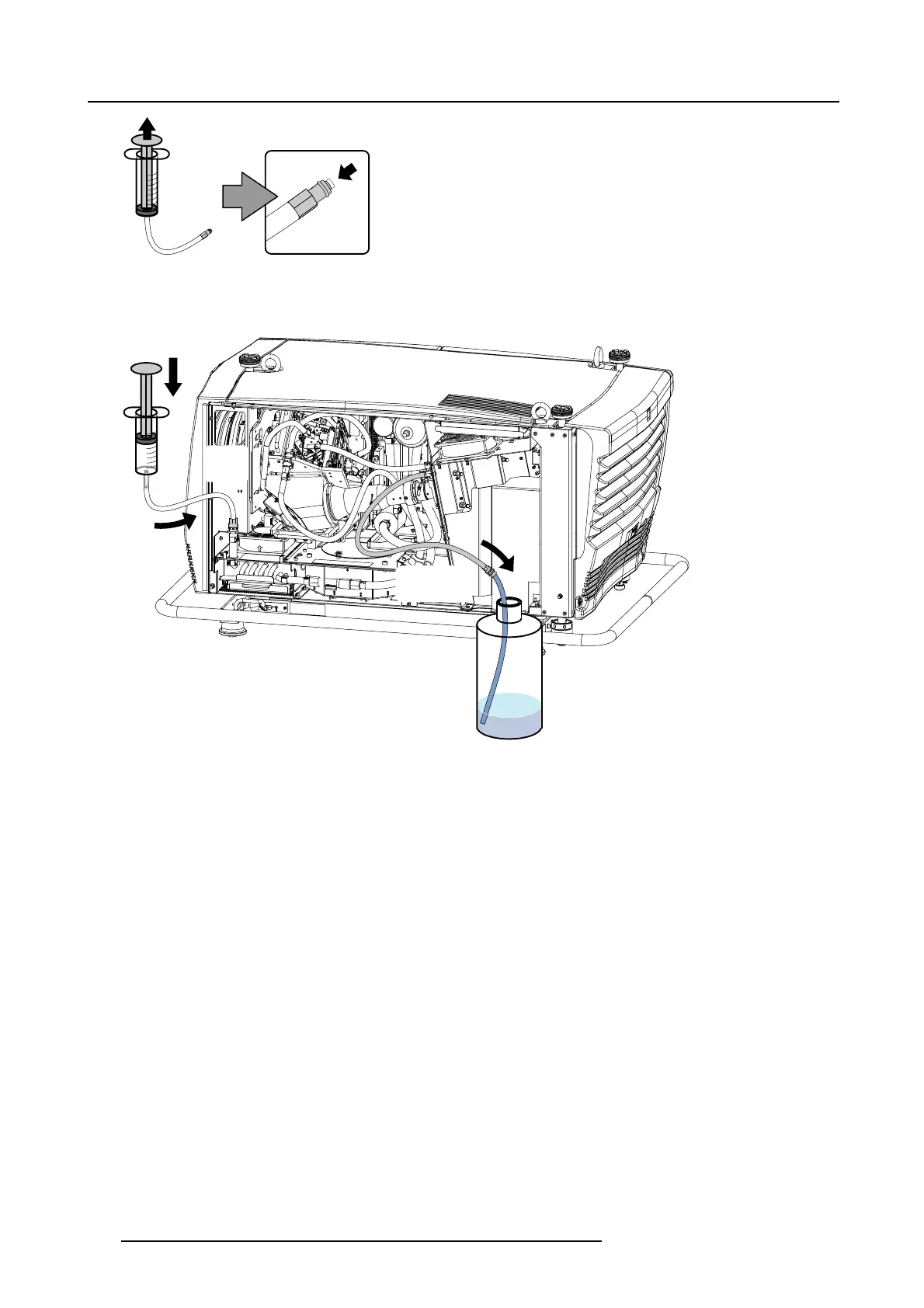

Image 15-4
4. C ouple the air filled syringe to the inlet o f the cooling circuit and force air into the circuit via the syringe. Liquid will be expelled
from the c ircuit exit s ide into th e empty bottle.
IN
OUT
Image 15-5
Draining complete cooling circuit
