15. Liquid cooling circuit

OUT

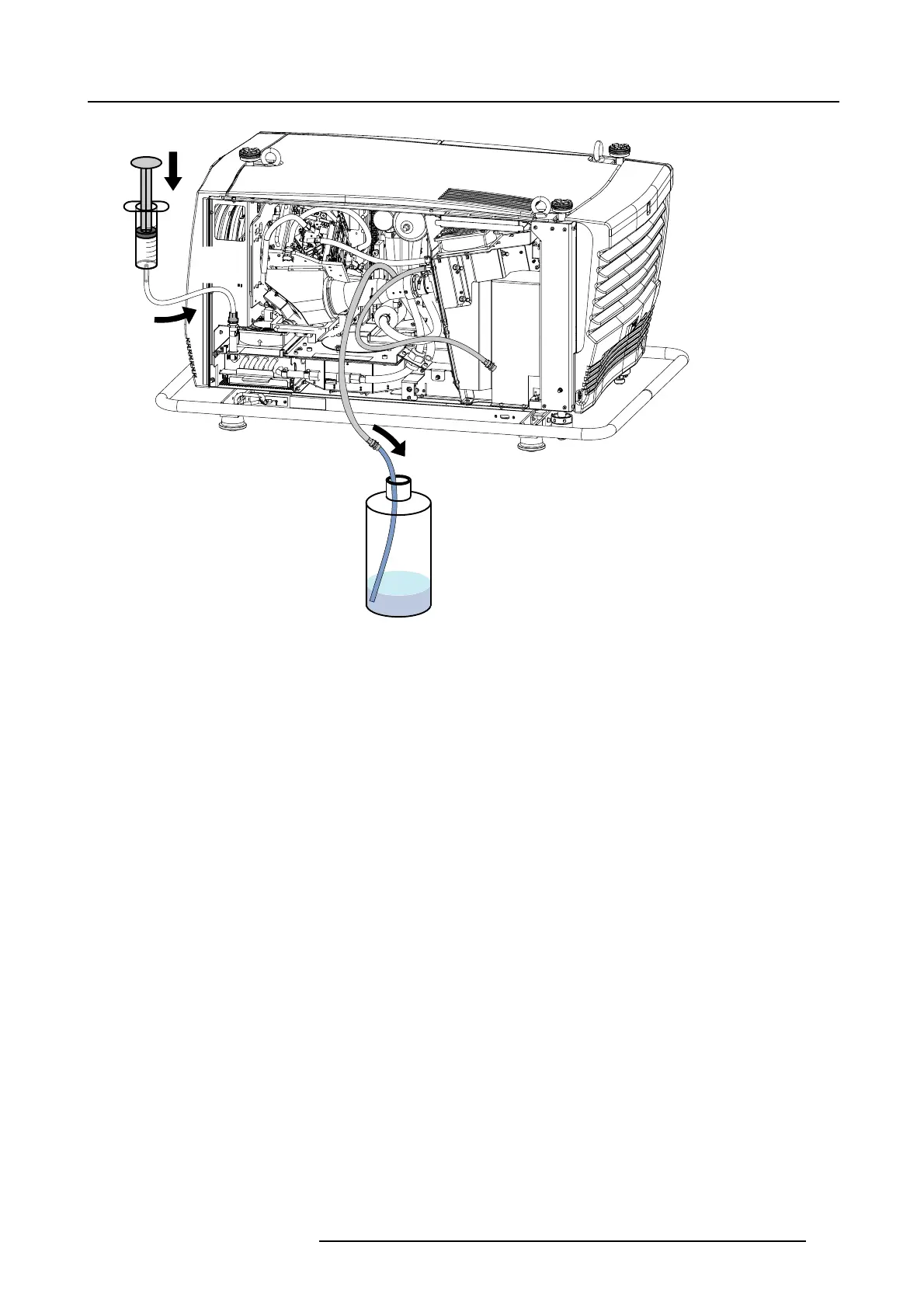

Image 15-6

Draining coolin g cir cuit, exc luding light proc essor circ uit

5. D isconnect the syringe from the cooling circuit and repeat from step 3 until all cooling liquid is drained.

R5905312 HDF W SERIES 24/01/2013

243
