18. Fan replacement procedures

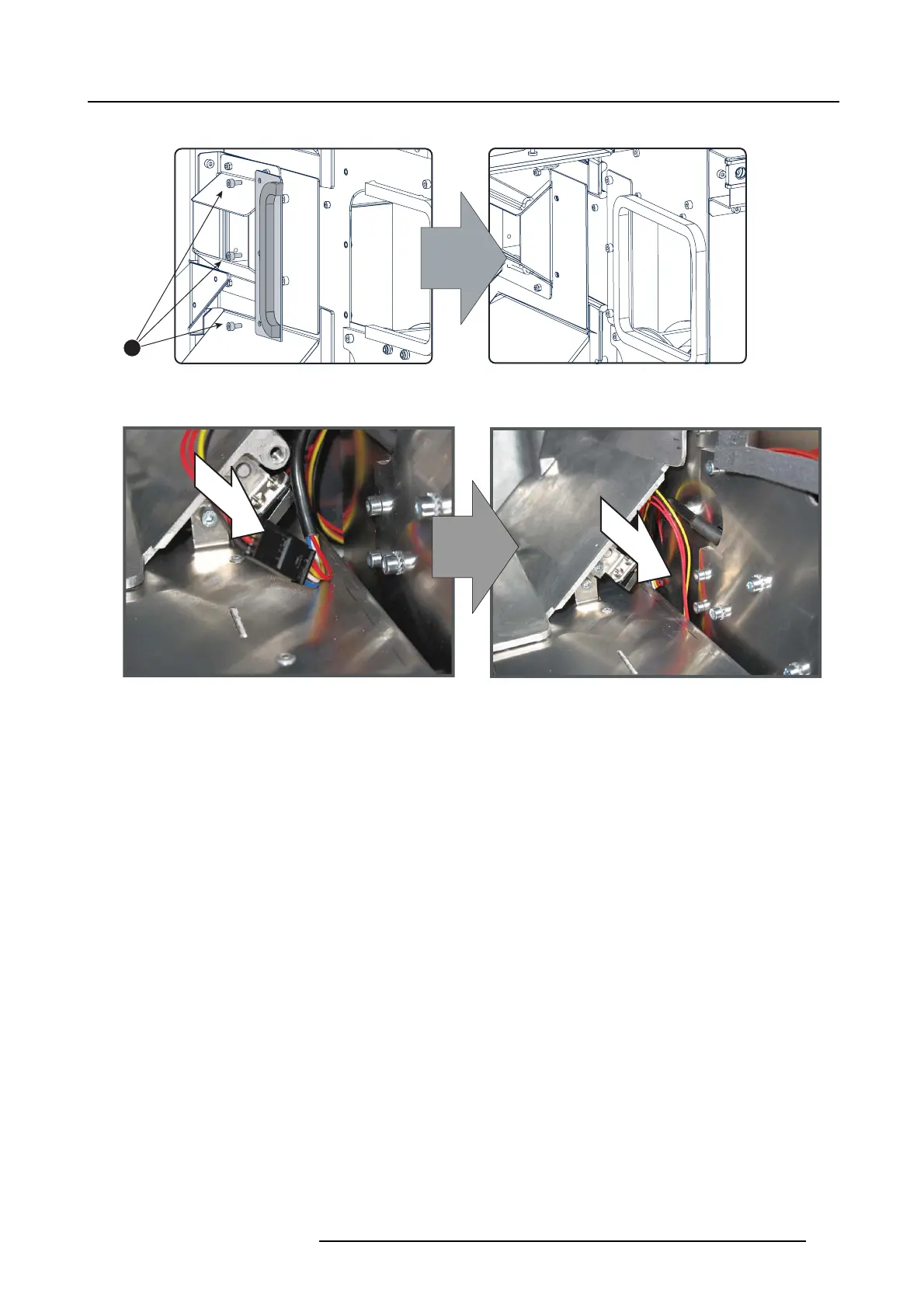

8. Install the small side plate of the air channel with three screws (reference 9).
9
Image 18-21
Small side plate, mounting
9. R econnect the wire unit of the cathode fan a nd hide the connector b ehind the plate.
Image 18-22
Cathode fan, power connection
10.R einstall the left side pan el of the lamp compa rtment with six screws (reference 10).
R5905312 HDF W SERIES 24/01/2013
299
