18. Fan replacement procedures
1

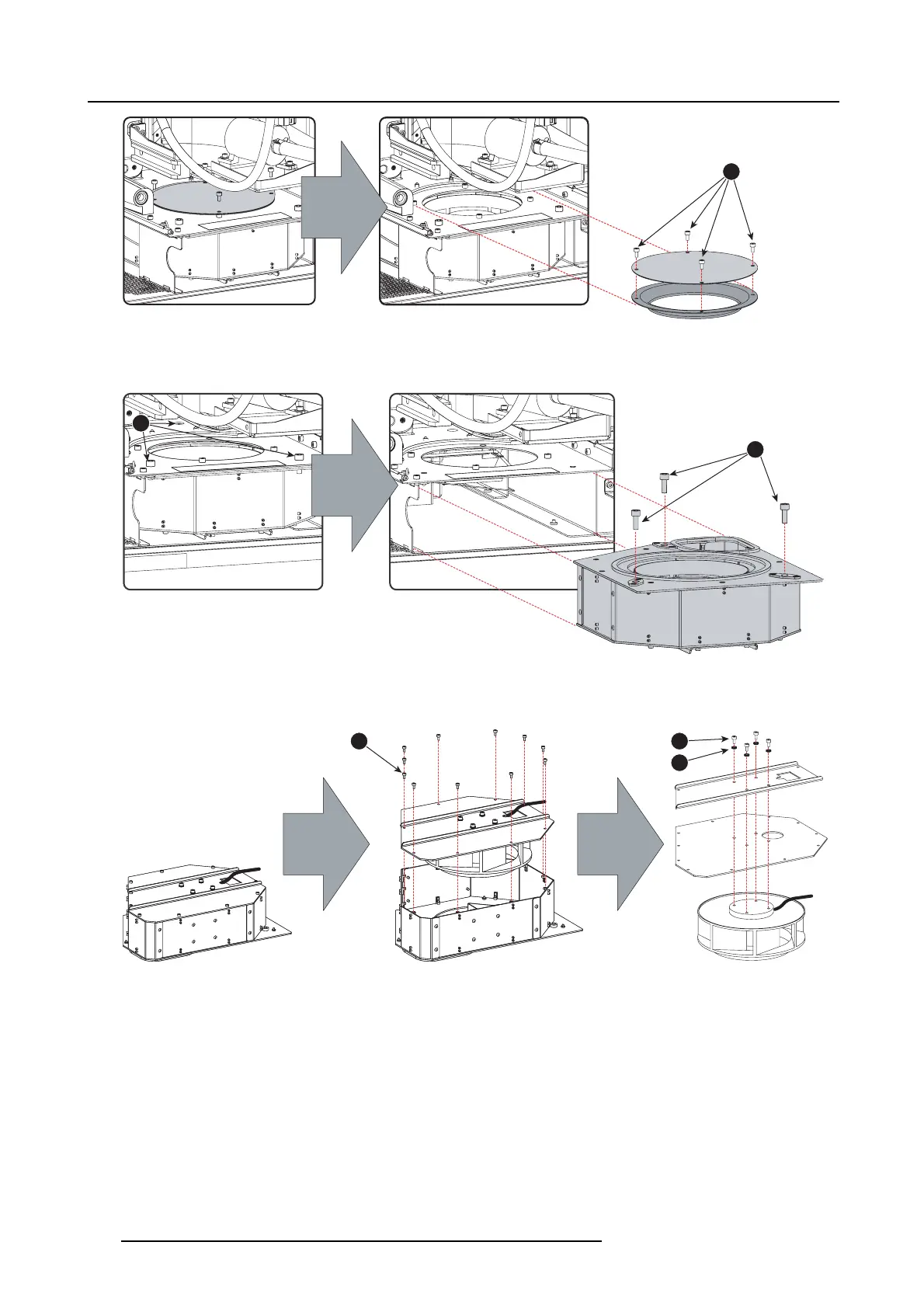

Image 18-26
Remove fan security guard
5. R elease the three indicated hexagon socket head cap screws (reference 2) and slide out the anode fan assembly. Usea5mm
Allen wrench.
2
2
Image 18-27
Remove fan assembly
6. R emov e t he fan from the fan hou se by releasing fir st the 11 small screws at the edge ( reference 3) and then the 4 big screws in
the middle (reference 4) as illustrated. Use a 2,5 mm and a 3 mm Allen wrench.
3 4
5
Image 18-28
Remove fan
7. Install a new anode fan inside the fan ho use as follows:
a) Guide the wire unit of the anode fan through the ho les in mounting plates.
b) Fasten the two mounting plates upon the fan with four hexagon sock et head cap screws (reference 6) as illustrated. Provide
each screw with a was her (reference 7).
c) Close the anode fan h ouse with 11 screws (reference 8).
302
R5905312 HDF W SERIES 24/01/2013
