18. Fan replacement procedures
86
7

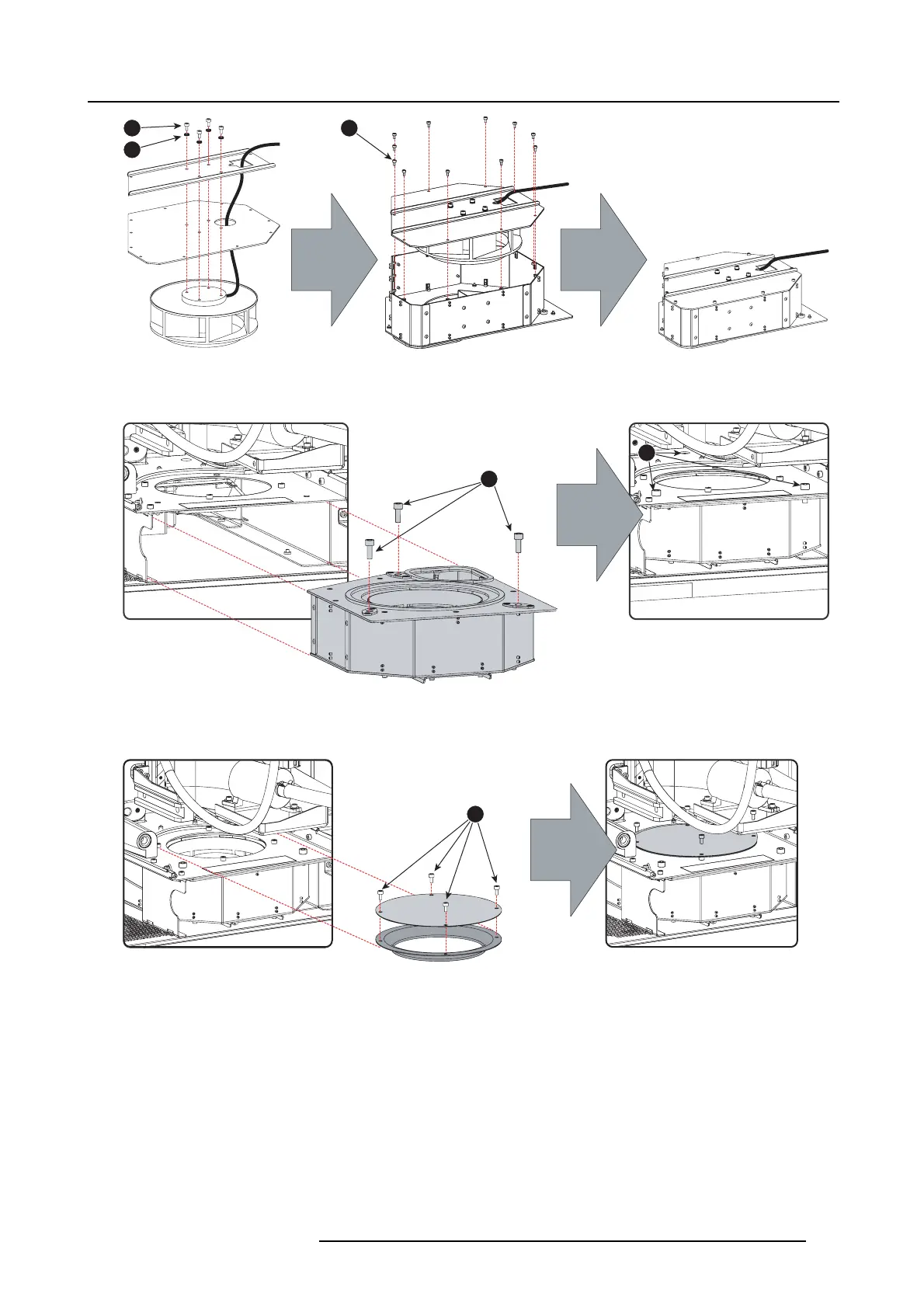

Image 18-29
Mount fan
8. S lide the anode fan assembly back in its compartment and secure with 3 big hexagon screws (reference 9). Usea5mmAllen
wrench.
9
9
Image 18-30
Insert fan assembly
9. R einstall the anode fan bezel and security guard. Use a 3 mm A llen wrench to secure the four hexagon socket head cap s crews
(reference 10).
10
Image 18-31
Mount fan security guard
10.Slide the heat exchanger ass embly in its place and fasten the two fixation scre w s. Use a 2,5 mm Allen w rench.
R5905312 HDF W SERIES 24/01/2013
303
