Branson 2000X - Page 88

Chapter 5: Technical Specifications
Standard Modules and Components
5-10 011-003-991 EN

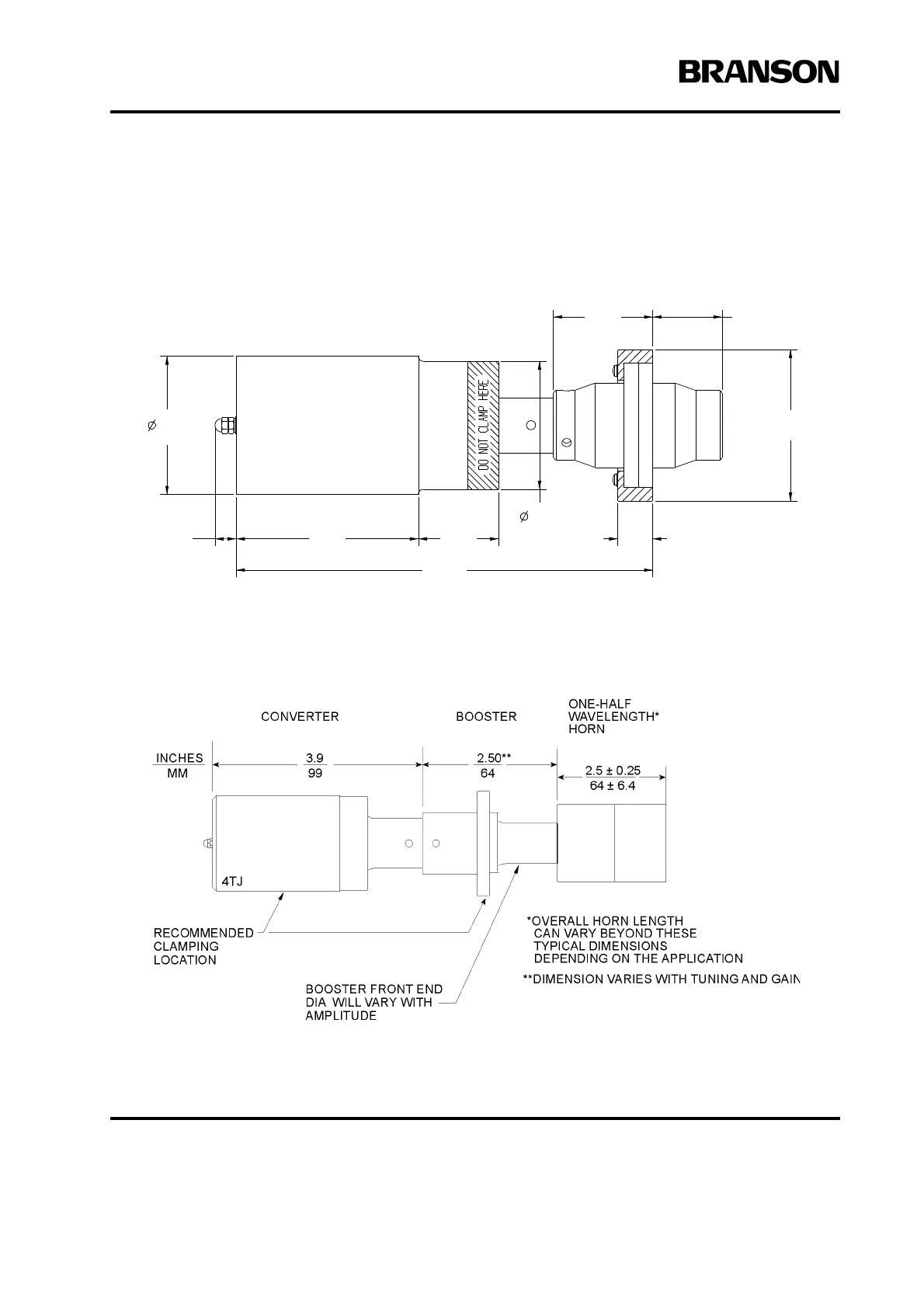

Figure 5.7 30kHz, CA - 30 Converter with Booster
Figure 5.8 30KHz Converter/Booster/Horn, Typical Dimensions
2.14
54.4
1.42 - 1.66
36.1 - 42.2
3.25
82.6
.75
19.1
2.75
69.9
1.72
43.7
8.98
227.6
3.92
99.6
.46
11.7
2.97
75.4
inches
mm
The CCA - 30 converter (EDP 159-135-114) is available in CA - 30 ConverterKit (EDP 101-063-689).
Instructions for installing must be adhered to and are included in the Installation Instructions.
