● Other parameter values are not fundamental and may be left at their default values.
● After setting up, click OK. All the parameter values will be applied automatically.
10.9.2 Connecting NICE SIGNO barriers
To connect to SIGNO barrier, you need to switch the controller to the drive direct control mode.
Table 75. Settings of CONF1 dip-unit toggles for operating with NICE SIGNO control unit
The toggle selects the normal state of the control STOP button. ON normally closed,
OFF normally open. For the wiring diagram of the control panel, refer to Sec. 10.5 Connecting the
gate control panel.
The toggle selects the configuration of vehicle presence sensors. ON only one (the central) is
connected, OFF all three are connected (at the entrance, in the center and at the exit). For the
wiring diagram of vehicle presence sensors, refer to Sec. 10.6 Connecting vehicle presence sensors.
The programing micro toggle switch on the SIGNO control unit board should be set in the position
described in the following table.
Table 76. Setting FUNCTIONS micro toggle switch on the SIGNO control unit board
«X» sign in the "Toggle position" means that this switch performs the function that does not affect
the ACS operation, and it must be put in the required position according to the original instruction
for SIGNO control unit.

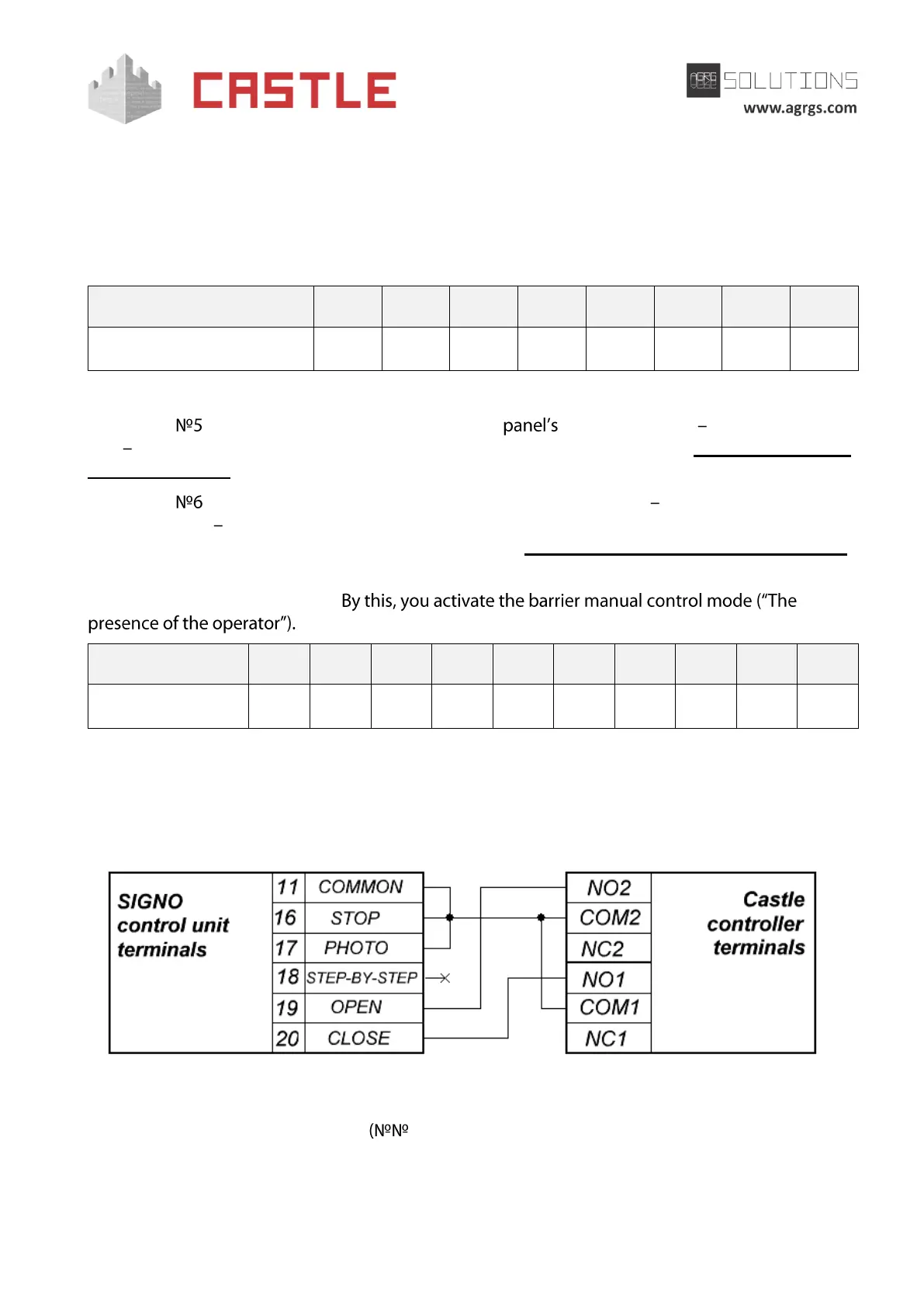

Pic 99. Connecting SIGNO barrier control unit
The rest of the SIGNO unit terminals 1-10, 13-15) are connected according to the original
instruction for the control unit.
