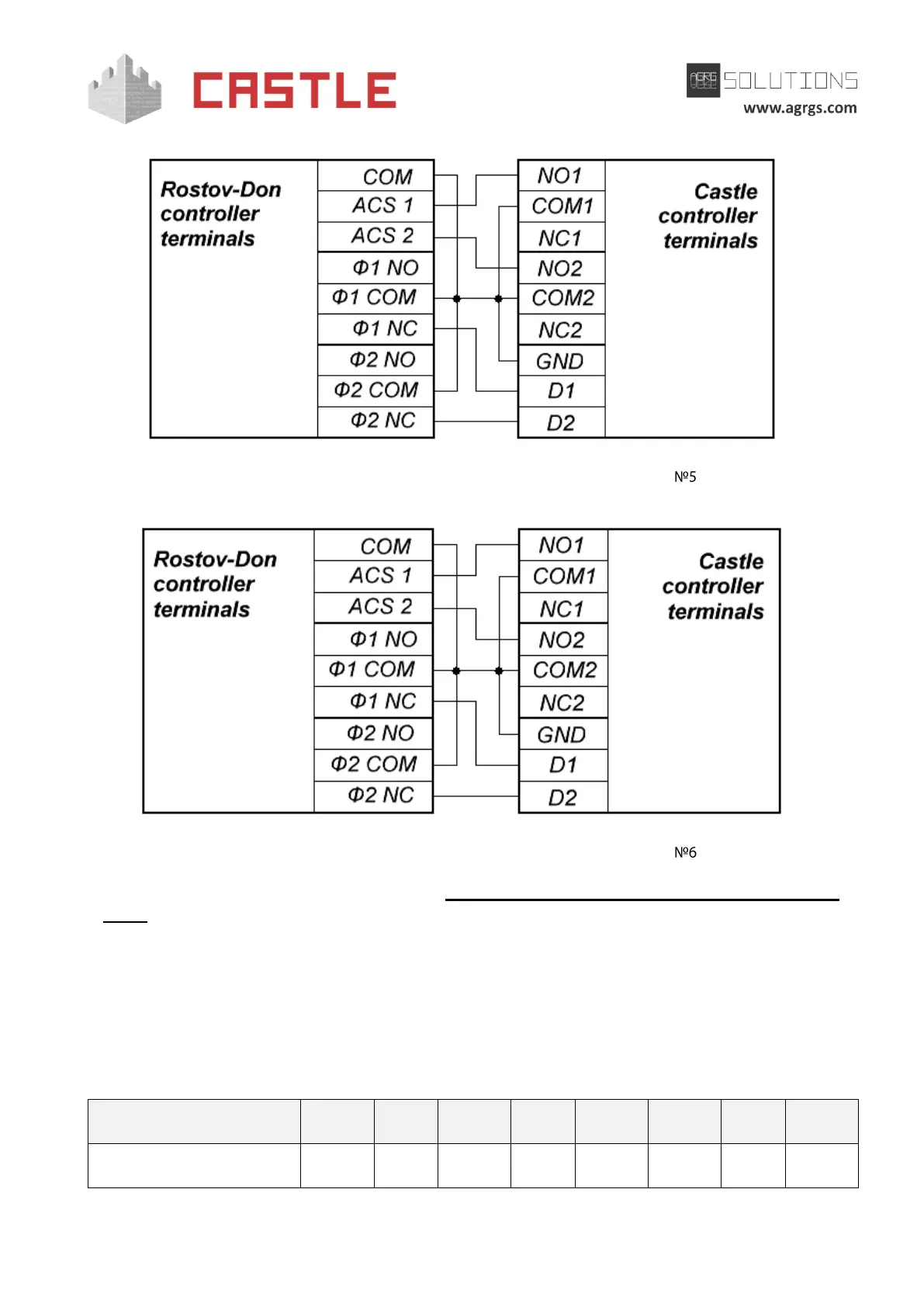

Pic 61. Connecting Rostov-Don turnstiles and swing gates. Option
Pic 62. Connecting Rostov-Don turnstiles and swing gates. Option
Note: To connect the control panel, see Sec. 9.10.1 Connecting the Rostov-Don turnstile control
panel.
9.10 Connecting Rostov-Don turnstiles and swing gates; old
electronics
For operating with Rostov-Don turnstiles and swing gates based on the old electronics, the
controller should be switched to the potential control mode for controlling the turnstile and for
working with normally open passage sensors according to Single-wire scheme.
Toggle N
1
2
3
4
5
6
7
8
Toggle position
OFF
ON
OFF
ON
OFF
OFF
ON
OFF
Table 41. Settings of CONF1 dip-unit toggles for operating with Rostov-Don turnstiles, old electronics
