© AGRGS 2016 | Data subject to change without notice
67385867493098462 | en, eu, V5, 07. Oct 2016, page 65
Pic 44. Connecting PERCo KT-02 and KT-05.3 IP-stiles
Notes:
The control with built-in IP-stile readers is not possible. You should install
readers that have standard Wiegand-26 or Touch Memory output interface.
To connect the control panel, see Sec. 9.6.11 Connecting PERCo turnstile control panel.

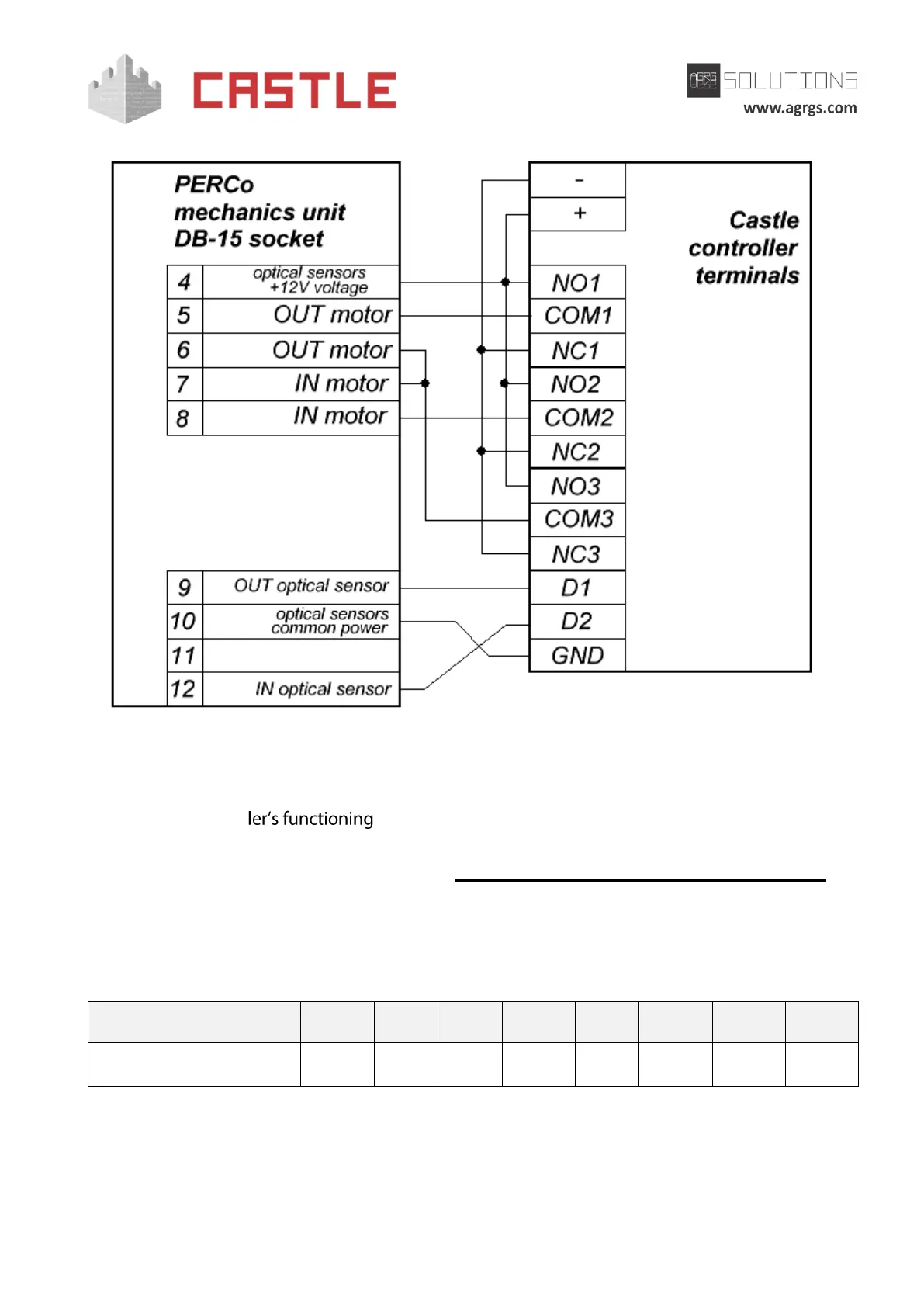

9.6.8 Connecting PERCo T-04 turnstile stand
The controller should be switched to the pulse control mode for controlling the turnstile and for
working with normally closed passage sensors according to Direct scheme.
Toggle N
1
2
3
4
5
6
7
8
Toggle position
OFF
ON
ON
OFF
ON
OFF
OFF
OFF
Table 32. Settings of CONF1 dip-unit toggles for operating with PERCo T-04 turnstile stand
The connection is made to the socket of the mechanics unit and optical sensors of the stand.
