● Other parameter values are not fundamental and may be left at their default values.
● After setting up, click OK. All the parameter values will be applied automatically.
10.10.7 Connecting drives with ZC5 control unit
To connect to a gate drive with ZC5 control unit, you need to switch the controller to the third-
party gate controller handling mode according to the logic defined in the Control Program.
Table 94. Settings of CONF1 dip-unit toggles for operating with ZC5 control unit
The toggle selects the normal state of the control STOP button. ON normally closed,
OFF normally open. For the wiring diagram of the control panel, refer to Sec. 10.5 Connecting the
gate control panel.
The toggle selects the configuration of vehicle presence sensors. ON only one (the central) is
connected, OFF all three are connected (at the entrance, in the center and at the exit). For the
wiring diagram of vehicle presence sensors, refer to Sec. 10.6 Connecting vehicle presence sensors.
The function selection micro toggle switch on the ZC5 control unit board should be set in the
position described in the following table.
Table 95. Setting the function selection micro toggle switch on the ZC5 control unit board

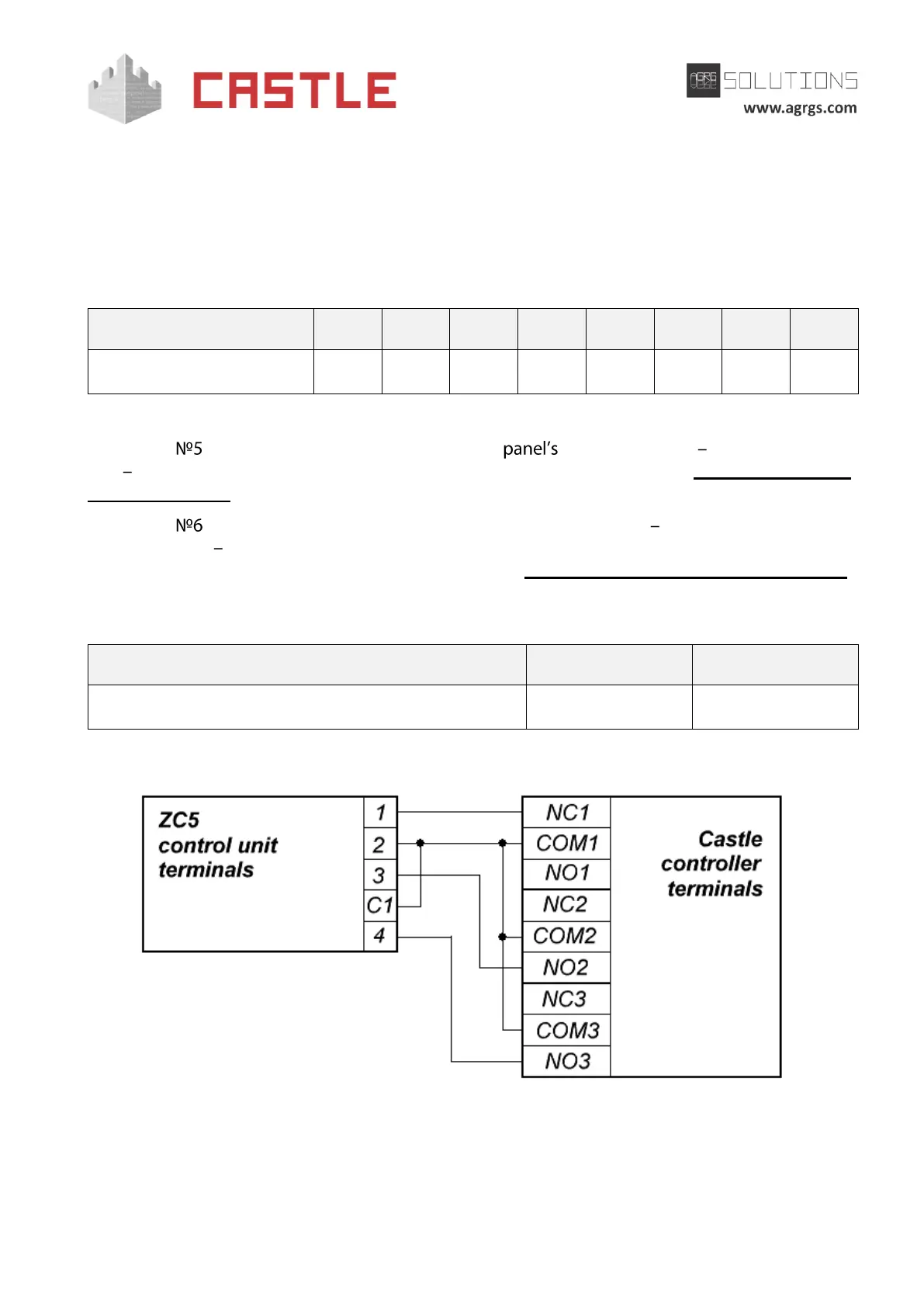

Pic 108. Connecting to ZC5 control unit
The rest of the unit terminals (L1, L2, U, W, V, E, 10, 11, F, FA, FC) are connected according to the
original instruction for ZC5 control unit.
