CASTLE EP User Manual

© AGRGS 2016 | Data subject to change without notice
67385867493098462 | en, eu, V5, 07. Oct 2016, page 77
● Terminals 78 and 79 of OMA-DD.958 controller are connected to controller terminals. For
wiring diagram, refer to 9.8.3 Connecting OMA 36.68 swing gate (OMA-DD.958 controller)
section of this manual.

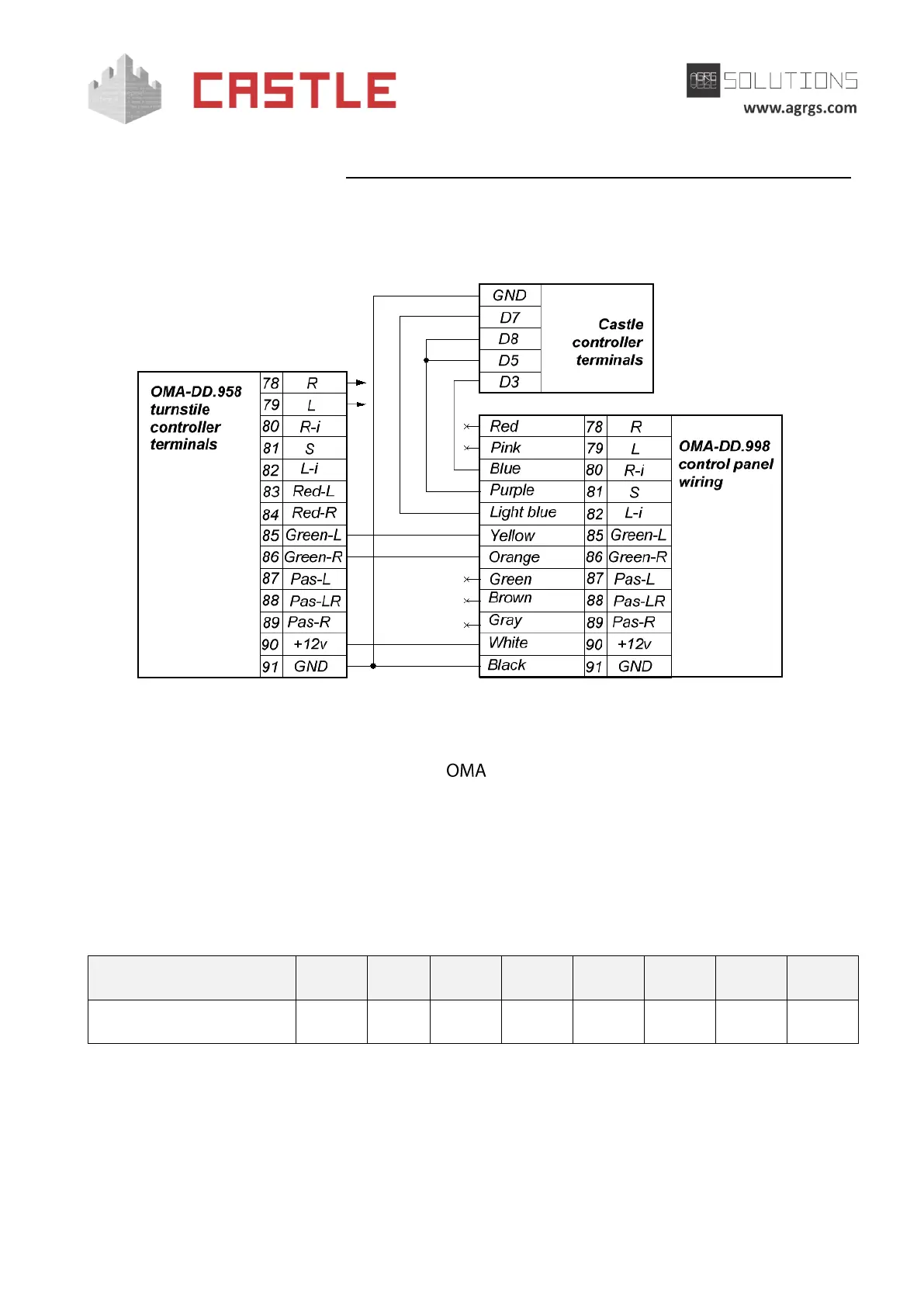

9.8.5 Connecting the OMA-DD.998 swing gate control panel
Pic 60. Connecting the OMA-DD.998 swing gate control panel
● Terminals 78 and 79 of OMA-DD.958 controller are connected to controller terminals. For
wiring diagram, refer to "Connecting 36.68 swing gate" section of this manual.
9.9 Connecting Rostov-Don turnstiles and swing gates; new
electronics
For operating with Rostov-Don turnstiles and swing gates based on the new electronics, the
controller should be switched to the potential control mode for controlling the turnstile and for
working with normally closed passage sensors according to Simplified scheme.
Toggle N
1
2
3
4
5
6
7
8
Toggle position
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
Table 40. Settings of CONF1 dip-unit toggles for operating with Rostov-Don turnstiles, new electronics
