CASTLE EP User Manual

© AGRGS 2016 | Data subject to change without notice
67385867493098462 | en, eu, V5, 07. Oct 2016, page 63

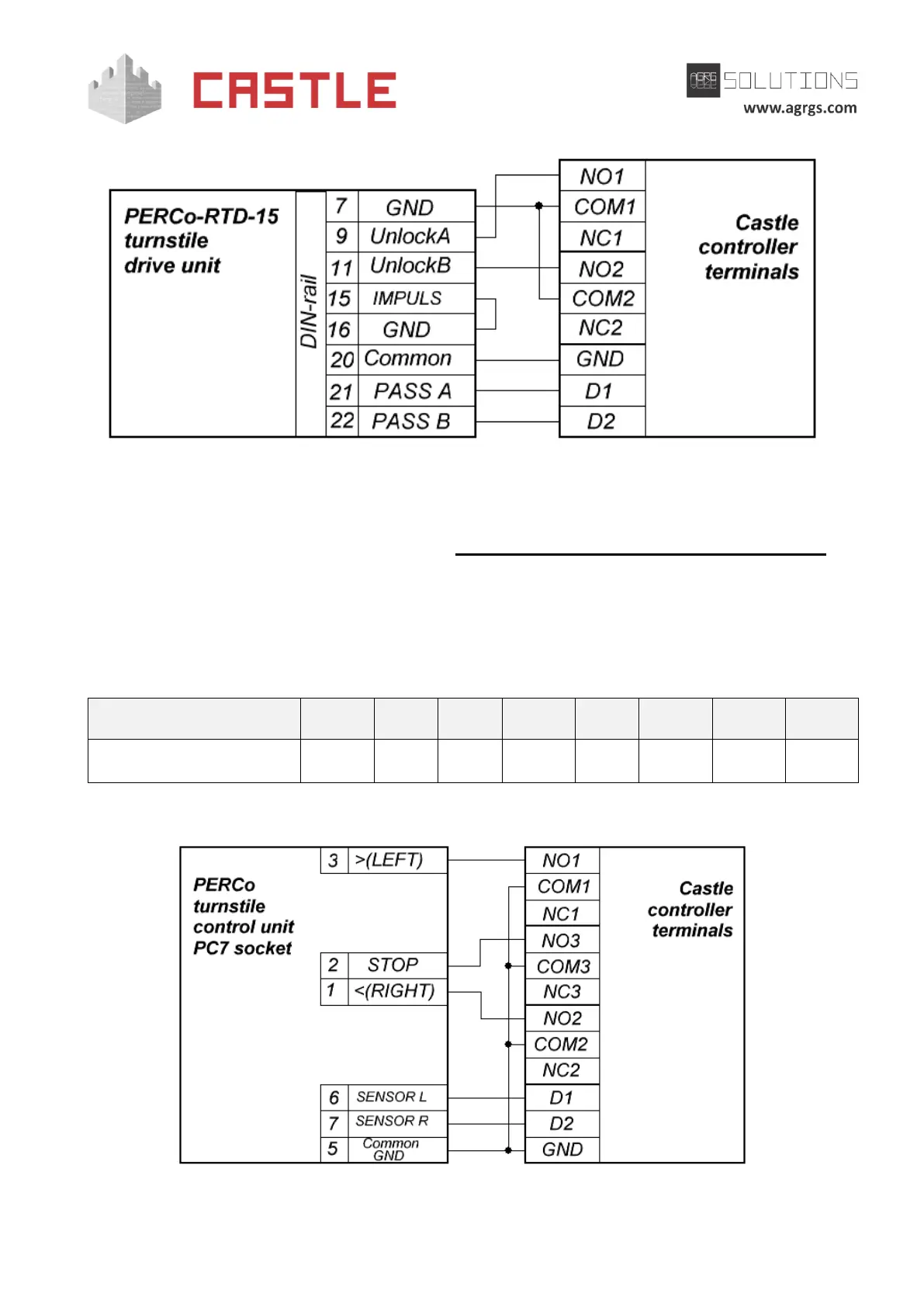

Pic 41. Connecting PERCo-RTD-15 turnstile
Note:
● To connect the control panel, see Sec. 9.6.11 Connecting PERCo turnstile control panel.
9.6.5 Connecting PERCo TTR-04 turnstile
For operating with PERCo TTR-04 turnstile, the controller should be switched to the pulse control
mode for controlling the turnstile and for working with normally closed passage sensors according
to Direct scheme.
Toggle N
1
2
3
4
5
6
7
8
Toggle position
OFF
ON
ON
OFF
ON
OFF
OFF
OFF
Table 30. Settings of CONF1 dip-unit toggles for operating with PERCo TTR-04 turnstile
Pic 42. Connecting PERCo TTR-04 turnstile
