9.7.7 Connecting the OMA-DD.998 turnstile control panel

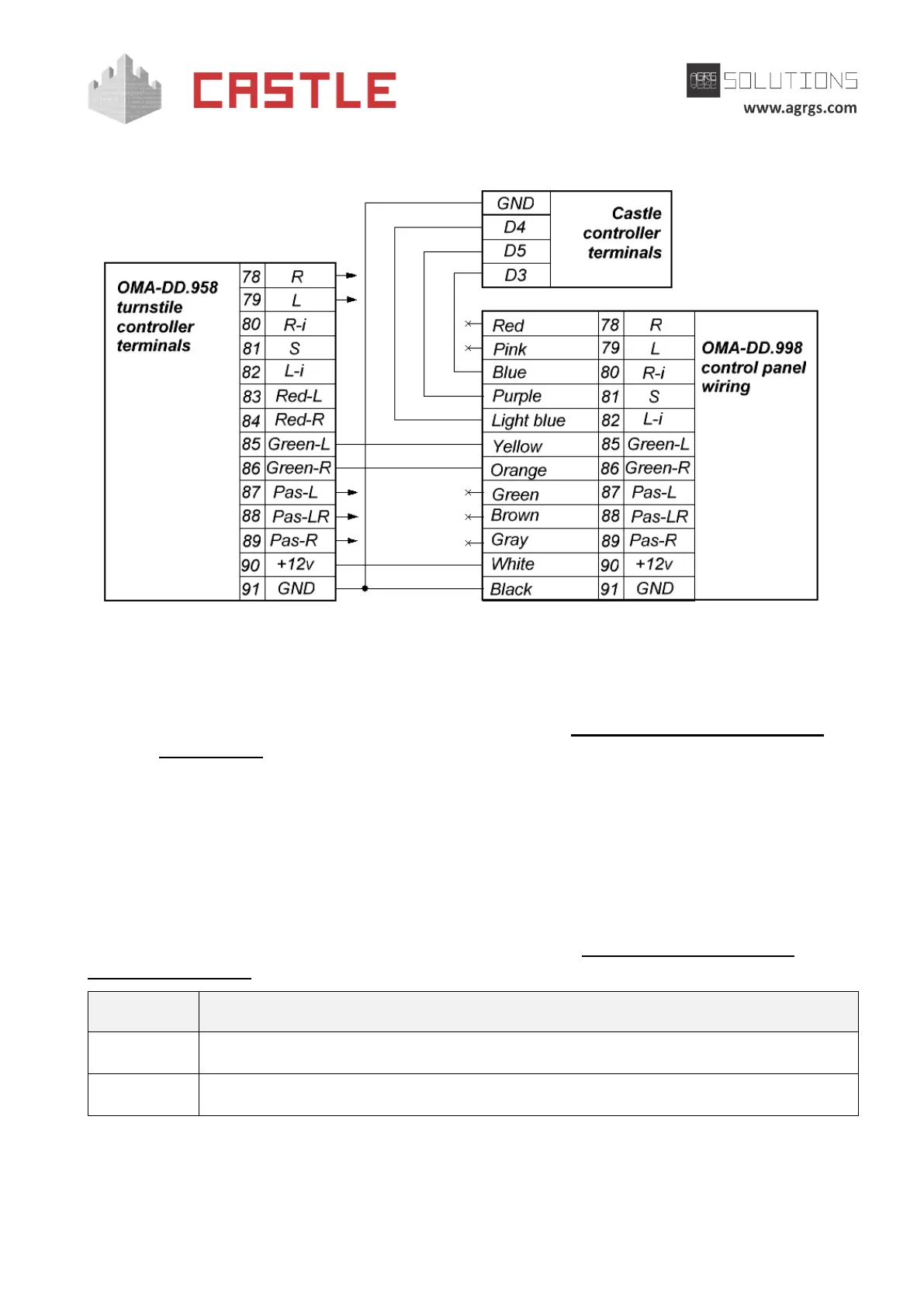

Pic 57. Connecting the OMA -DD.998 turnstile control panel
● Terminals 78, 79, 87, 88, and 89 of OMA-DD.958 controller are connected to controller
terminals. For wiring diagram, refer to "Connecting OMA turnstiles" section of this manual.
● The control panel operating logic is described in Sec. 11.8.2 Working with the turnstile
control panel.
9.8 Connecting OMA swing gates. Overview
In this section, you can find a wiring diagram for OMA 36.68 swing gate with OMA-DD.958 control
unit (controller).
9.8.1 Connecting readers for OMA swing gate
Readers are connected to controller terminals according to Sec. 6.3 Connecting readers and
contactors. Overview.
Port
Use
PORT 1
OUT direction reader
PORT 4
IN direction reader
Table 38. Reader assignment when operating with OMA swing gate
