10.17 Connecting O&O drives with LOG-BT control unit
To connect to a gate drive with LOG-BT control unit, you need to switch the controller to the third-
party gate controller handling mode according to the logic defined in the Control Program.
Table 112. Settings of CONF1 dip-unit toggles for operating with the LOG-BT
The toggle selects the normal state of the control STOP button. ON normally closed,
OFF normally open. For the wiring diagram of the control panel, refer to Sec. 10.5 Connecting the
gate control panel.
The toggle selects the configuration of vehicle presence sensors. ON only one (the central) is
connected, OFF all three are connected (at the entrance, in the center and at the exit). For the
wiring diagram of vehicle presence sensors, refer to Sec. 10.6 Connecting vehicle presence sensors.
The function selection micro toggle switch on the LOG-BT control unit board should be set in the
position described in the following table.
Table 113. Setting the function selection micro toggle switch on the LOG-BT control unit board
«X» sign in the "Toggle position" means that this switch performs the function that does not affect
the ACS operation, and it must be put in the required position according to the original instruction
for LOG-BT control unit.

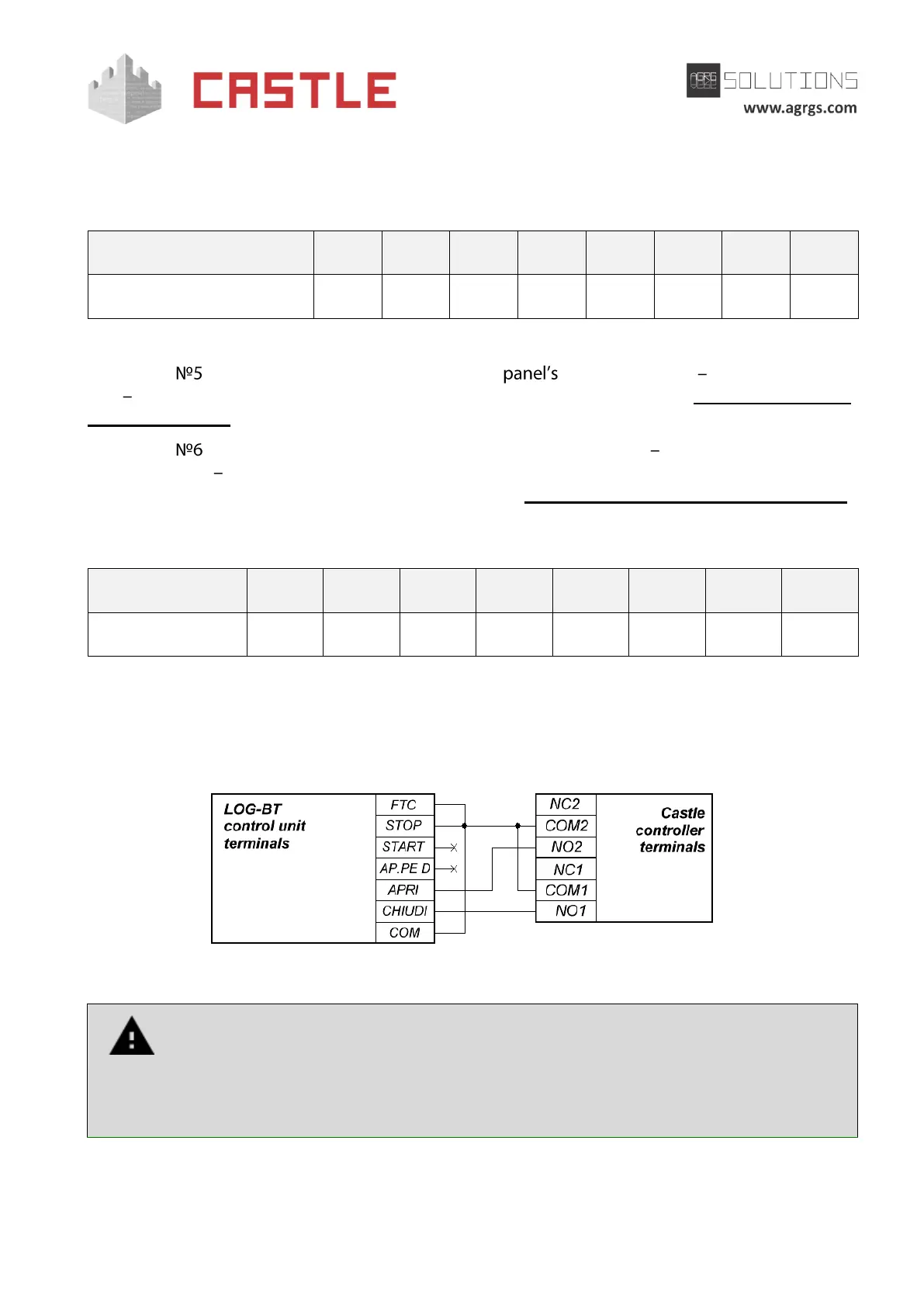

Pic 120. Connecting LOG-BT control unit
All vehicle presence sensors, as well as manual control panel, should be connected
exclusively to the controller, and not to the barrier drive or to both of them.
Violation of this requirement may lead to different conflicts ranging from passage
registration failure to "freezing" the barrier beam in the intermediate states to
eventual damage of a passing vehicle.
