CASTLE EP User Manual

© AGRGS 2016 | Data subject to change without notice
67385867493098462 | en, eu, V5, 07. Oct 2016, page 40
8.3.5 Connecting electric motor locks
The controller allows you to control all types of electric motor locks with no additional control unit.
To work with electric motor locks, the controller should be switched
mode (for the first door toggle dip-unit to be set in ON position, for the second
door toggle dip-unit to be set in ON position).

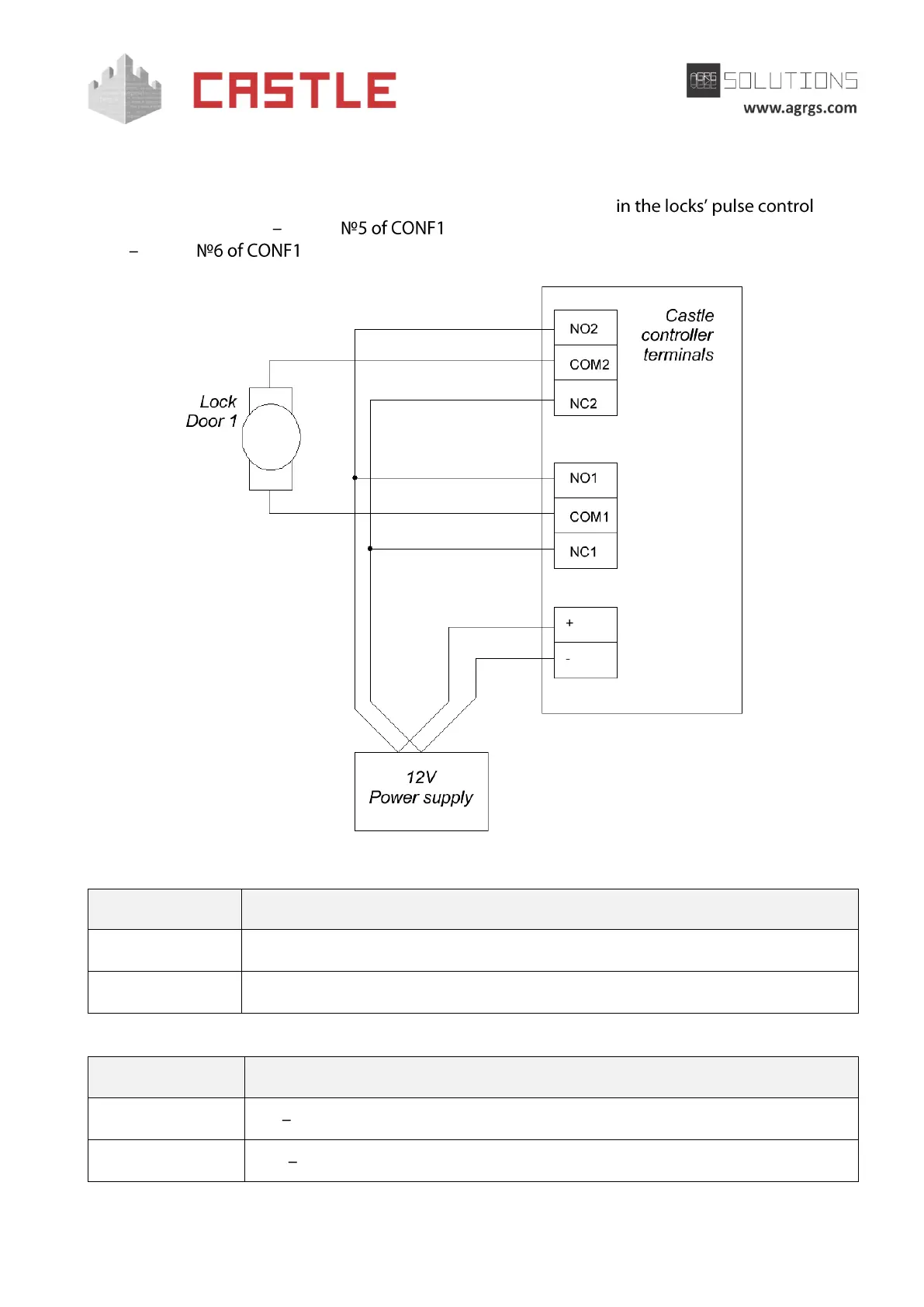

Pic A. Example of connecting an electric motor lock for the first door
Relay
Use
K1 and K2
The first door
K3 and K4
The second door
Table 16. Using the controller relay to connect electric motor locks
Toggle
Use
1
ON Two Door configuration.
2
OFF Two Door configuration.
