Access point settings:
In the Control Program, go to Doors tab and select a controller you want from the list, click
Settings, switch to Clamps reassignment (Terminal reassignment) tab, and add a string with the
following values:
● Function «Seize card» line for «Outside» direction (Capture the card in OUT direction),
Door (access point) "1", Clamp (terminal) "O1, normally not active".
Switch to Port readers reassignment (Reader port reassignment) tab add the
string:
● Access point "1", Port reader type (reader port type) Extended for exit (Additional
for OUT direction), Port number "3".
Click OK and Apply.
Mode settings (Rules):
For visitor passes that have to be captured at the exit, on Main tab you have to create the mode
with the following settings:
● Affected Staff select all visitor passes.
● Affected doors (access points) select all access points blocking .
● On Special Rules tab enable two options Outside direction additional reader as card
collector (Allow passage in OUT direction only by additional card capture reader) and
Require guard approval for passing in «outside» direction.
Add a day or days according to working schedule and adjust them as necessary.
9.5.4 Connecting Rostov-Don KP1 card capture reader
To connect Rostov-Don KP1 CCR, it is necessary to join controller terminals to CCR terminals.

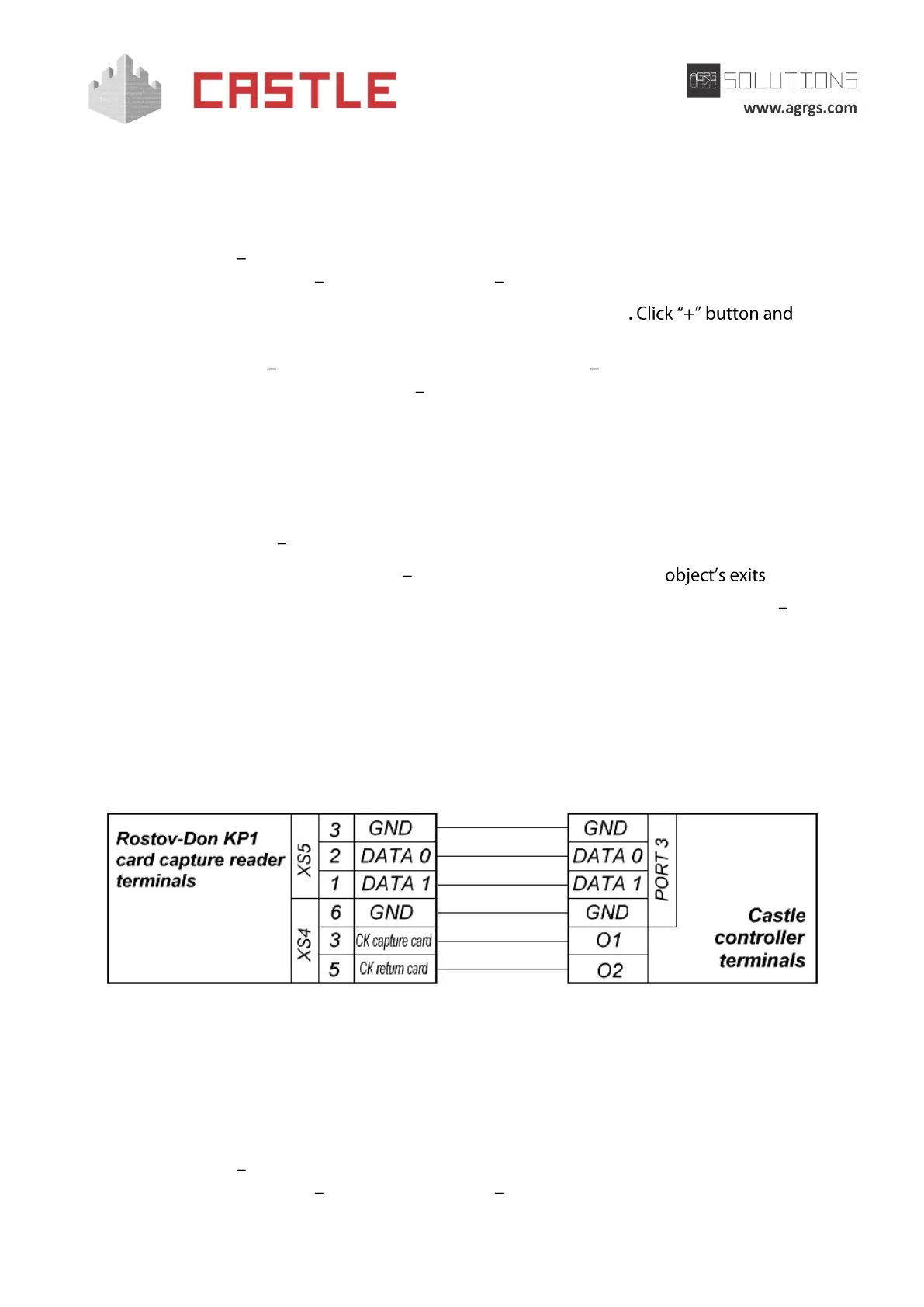

Pic 34. Example of connecting Rostov-Don KP1 CCR in OUT direction
Access point settings:
In the Control Program, go to Doors tab and select a controller you want from the list, click
Settings, switch to Clamps reassignment (Terminal reassignment) tab, and add two strings with
the following values:
● Function «Seize card» line for «Outside» direction (Capture the card in OUT direction),
Door (access point) "1", Clamp (terminal) "O1, normally not active".
