CASTLE EP - Setting Access Points for Operating with Fastlane Intelligate Passgate; Connecting Fastlane Intelligate Passgate

© AGRGS 2016 | Data subject to change without notice
67385867493098462 | en, eu, V5, 07. Oct 2016, page 86
Port
Use
PORT 1
OUT direction reader
PORT 4
IN direction reader
Table 53. Reader assignment when operating with Fastlane Intelligate Passgate
9.16.2 Setting access points for operating with Fastlane Intelligate Passgate
In the Control Program you should add two access points. In the settings of the first of them, you
need to set the desired passage waiting time (Max waiting time before autoclosing an opened
gate) and turn off Time in open state for door before «close the door» signal activation
(uncheck Show only basic settings box and move the option slider to the right).
9.16.3 Connecting Fastlane Intelligate Passgate
For operating with Fastlane Intelligate Passgate, the controller should be switched to Two Door
mode with the potential control of the locks and with normally closed passage sensors.
Toggle N
1
2
3
4
5
6
7
8
Toggle position
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Table 54. Settings of CONF1 dip-unit toggles for operating with Fastlane Intelligate Passgate

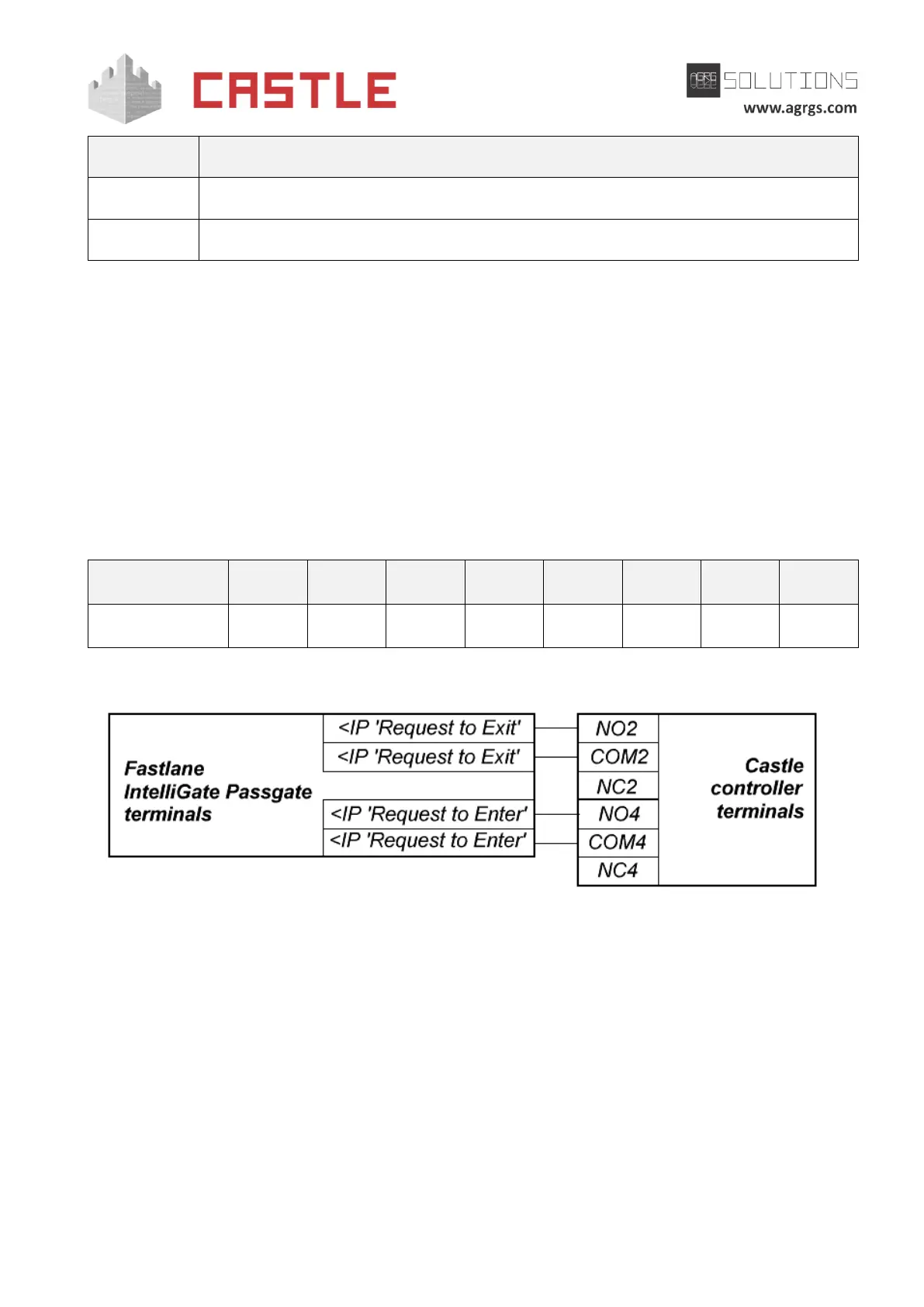

Pic 80. Connecting Fastlane Intelligate Passgate
