Usually combined with LED 1 for synchronous
enabling.
Table 4. Hints for color wire marking while connecting readers
6.3.2 Connecting readers with Wiegand interface
The electrical properties of Wiegand standard interface provide a guaranteed reader connectivity
range up to 60 m, which is sufficient in most cases. When using appropriate cables and laying
conditions, the connection range can be increased up to 150 meters (see Sec. 16 Appendix 4.
Summary for cable selection).

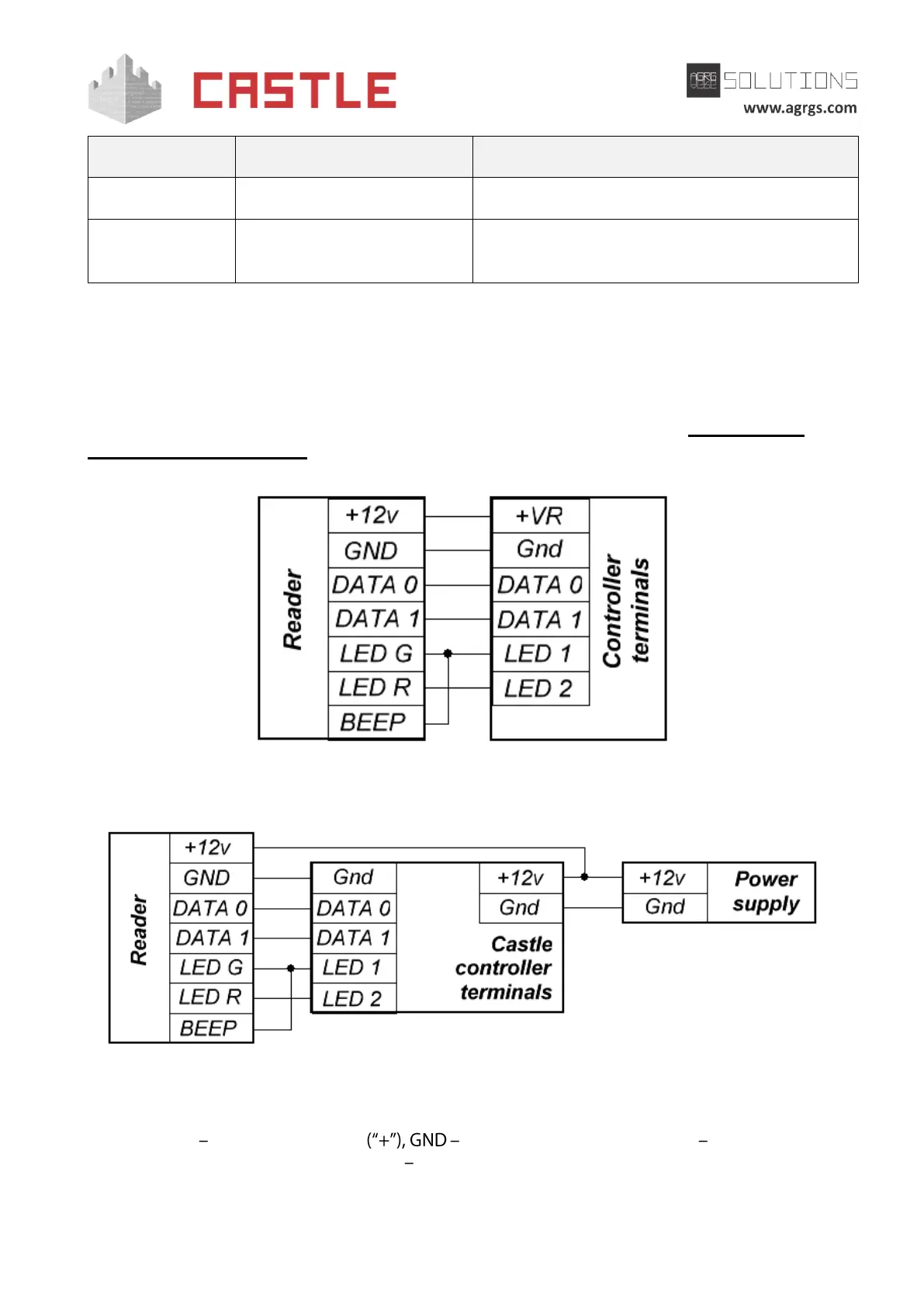

Pic 4. Example of connecting the reader with a voltage equal to the controller power supply voltage
Pic 5. Example of connecting the reader with a voltage differing from voltage of the controller or the readers
consuming a total current of more than 500mA
● + VR power positive side common wire, DATA0, DATA1 Wiegand-26
interface data links, LED1, LED2 reader indication control lines.
