9.7.2 Connecting OMA turnstiles with OMA-DD.958 and 264MS1 controllers

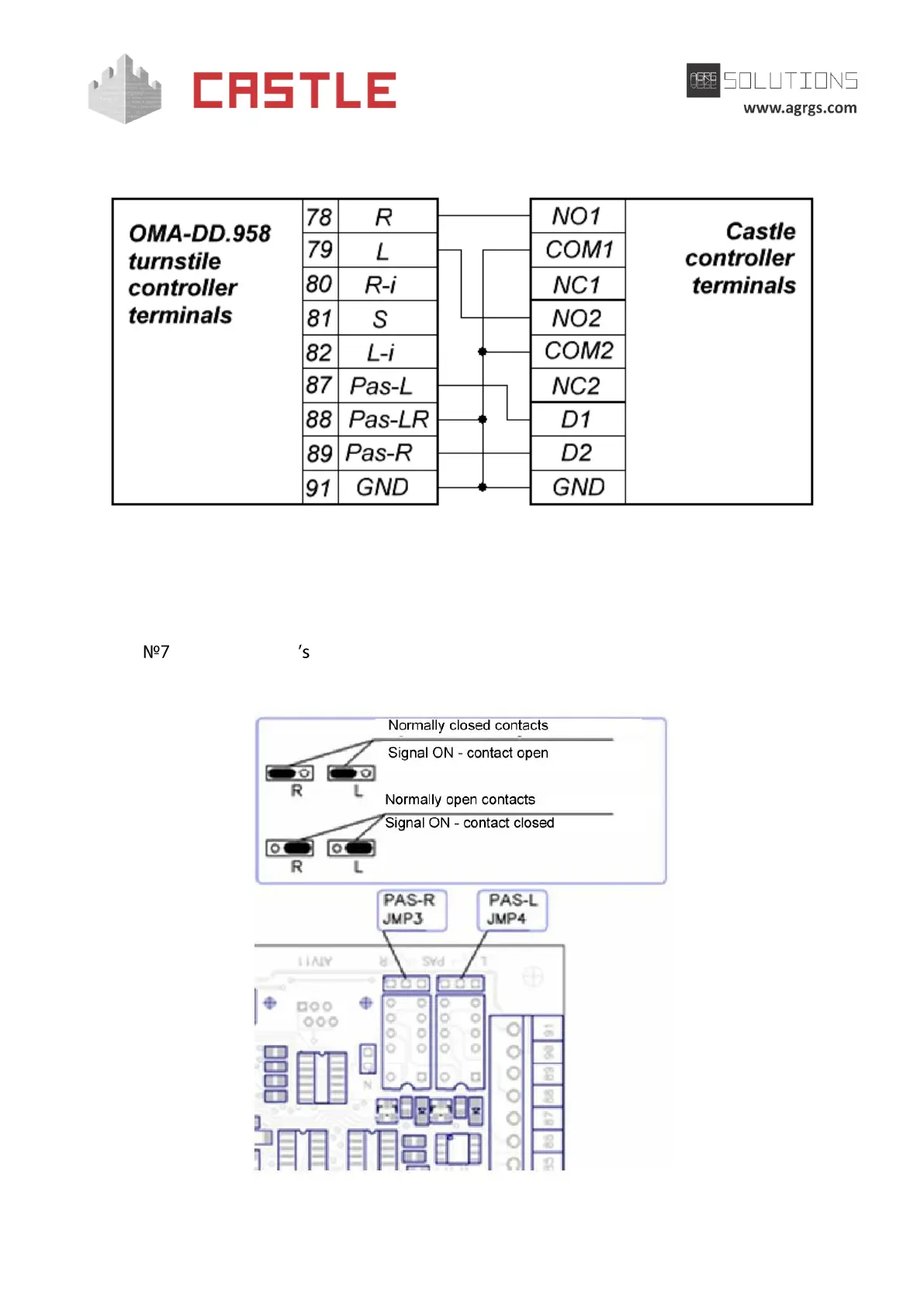

Pic 50. Connecting OMA turnstile with OMA-DD.958 and OMA 264MS1 controller
For correct processing the passage sensor data, you should place two jumpers (JMP3 and JMP4) on
OMA-DD.958 and OMA 264MS1 controller board to the "Normally closed contacts" position. You
can also leave them in the "Normally open contacts" position, but in that case you should set the
toggle of the controller CONF1 dip-unit to ON position (thus putting the controller in the
operation mode with normally open passage sensors).
Pic 51. JMP3 and JMP4 jumpers of OMA-DD.958 and OMA 264MS1 controllers
