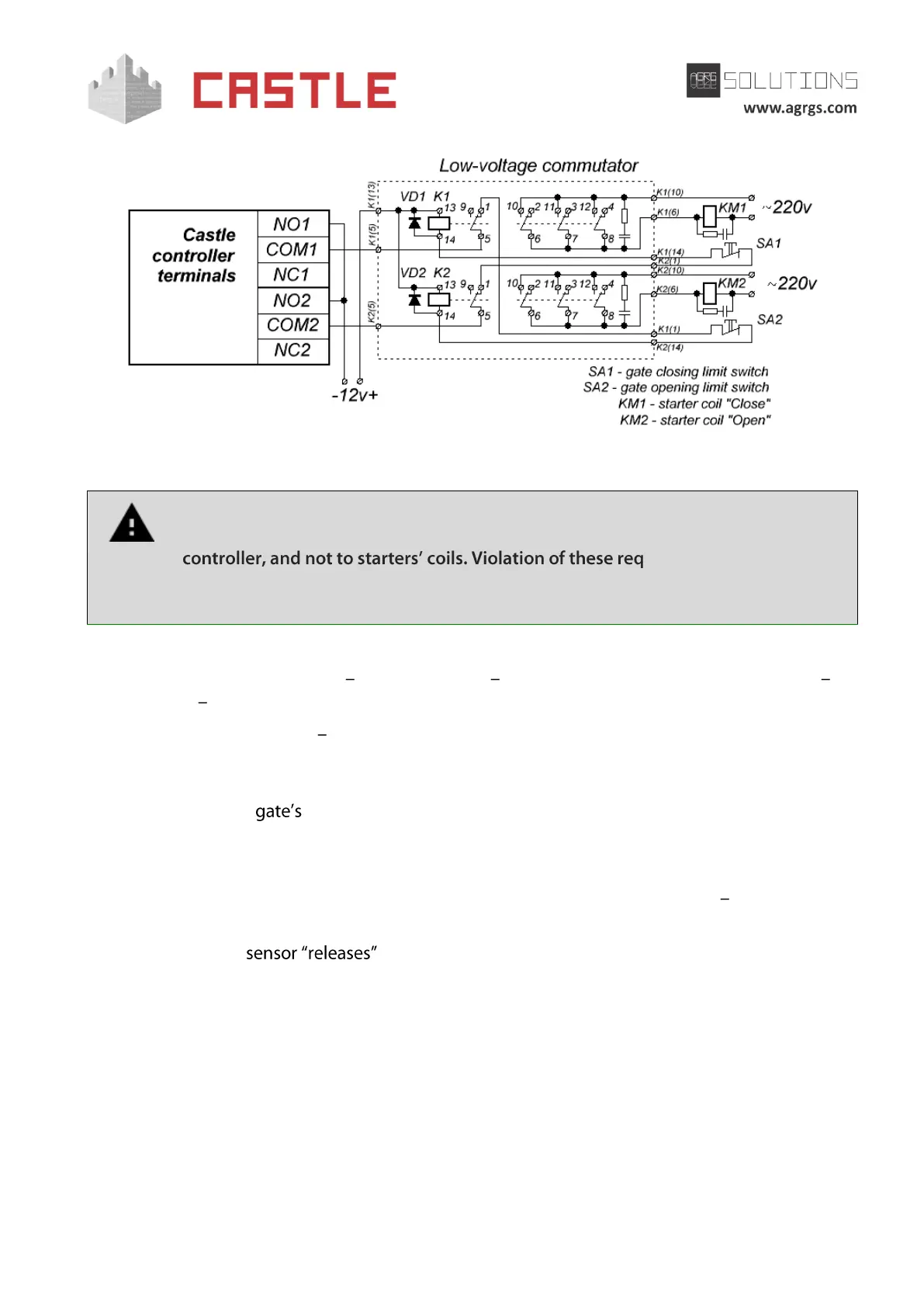

Pic 117. Example of connecting to the gate drive controlled by two electromagnetic starters
One or more vehicle presence sensors should be connected to the controller. The
manual control panel, if any should be connected exclusively to the Castle
uirements may lead to
different conflicts ranging from passage registration failure to "freezing" the gate
wings in the intermediate states to eventual damage of a passing vehicle.
Before enabling the access point, you need to make its mandatory settings.
To do this, run Control Program select Doors tab select the desired controller from the list
click Settings uncheck Show only basic settings. Then make the following settings:
● Gate control mode select Straight drive direction (Direct drive control) from the drop-
down menu.
● Set Time to open/close gate sections in direct gate control mode equal to about 1.1
times of the real opening (closing) time. E.g., if the gate opens fully within 10
seconds, then the parameter value must be equal to 11 seconds.
● Set Max waiting time before autoclosing an opened gate as desired.
● Delay between sector motors activation in direct gate control mode 0.00 second.
● Set Gate sensor activation delay within 0.5-2.0 seconds. This parameter is used to ignore
short-term when detecting passing vehicles with a trailer or other parts
that are transparent to the sensor.
● Other parameter values are not fundamental and may be left at their default values.
● After setting up, click OK. All the parameter values will be applied automatically.
10.16 Connecting Hormann drives. Overview
In this section, you can find circuit samples for connecting WA400, WAM 400, and ITO 400 gate
drives equipped with A455, B455, A460, and B460 control units.
