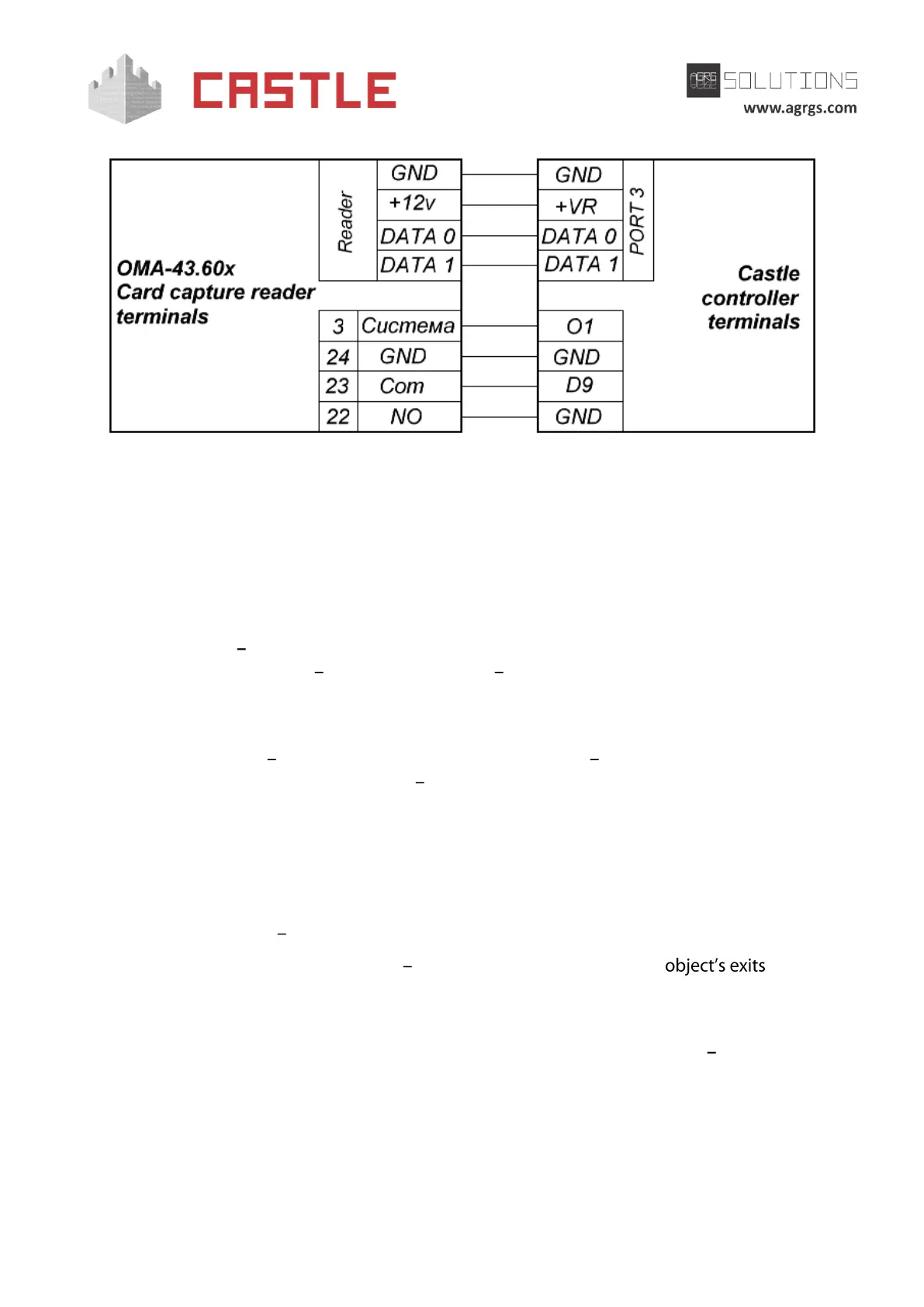

Pic 27. Example of connecting card capture reader OMA-43.60x in OUT direction for the first door of the
controller
Access point settings:
In the Control Program, go to Doors tab and select a controller you want from the list, click
Settings, and then switch to Clamps reassignment (Terminal reassignment) tab.
Click "+" button and add a string with the following values:
● Function «Seize card» line for «Outside» direction (Capture the card in OUT direction),
Door (access point) "1", Clamp (terminal) "O1, normally not active".
Switch to Port readers reassignment (Reader port reassignment) tab. Click "+" button and add the
string:
● Access point "1", Port reader type (reader port type) Extended for exit (Additional
for OUT direction), Port number "3".
Click OK and Apply.
Mode settings (Rules):
For visitor passes that have to be captured at the exit, on Main tab you have to create the mode
with the following settings:
● Affected Staff select all visitor passes.
● Affected doors (access points) select all access points blocking .
Add a day or days according to working schedule and adjust them as necessary (do not forget to
allow IN/OUT access).
On Special Rules tab enable two options Outside direction additional reader as card collector
(Allow passage in OUT direction only by additional card capture reader) and Require guard
approval for passing in «outside» direction.
8.9 Connecting doorphones (intercoms)
All types of doorphones are supported, regardless of manufacturer or design.
