9.8.2 Setting access points for operating with OMA 36.68 swing gate
In the Control Program, on Doors tab, you should add two access points. In the settings of the first
of them, you need to set the desired passage waiting time (Max waiting time before autoclosing
an opened gate) and turn off Time in open state for door before «close the door» signal
activation (uncheck Show only basic settings box and move the option slider to the right).
9.8.3 Connecting OMA 36.68 swing gate (OMA-DD.958 controller)
For operating with OMA swing gates, the controller should be switched to Two Door mode with
the potential control of the locks and with normally closed passage sensors.
Toggle N
1
2
3
4
5
6
7
8
Toggle position
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Table 39. Settings of CONF1 dip-unit toggles for operating with OMA 36.68 swing gate

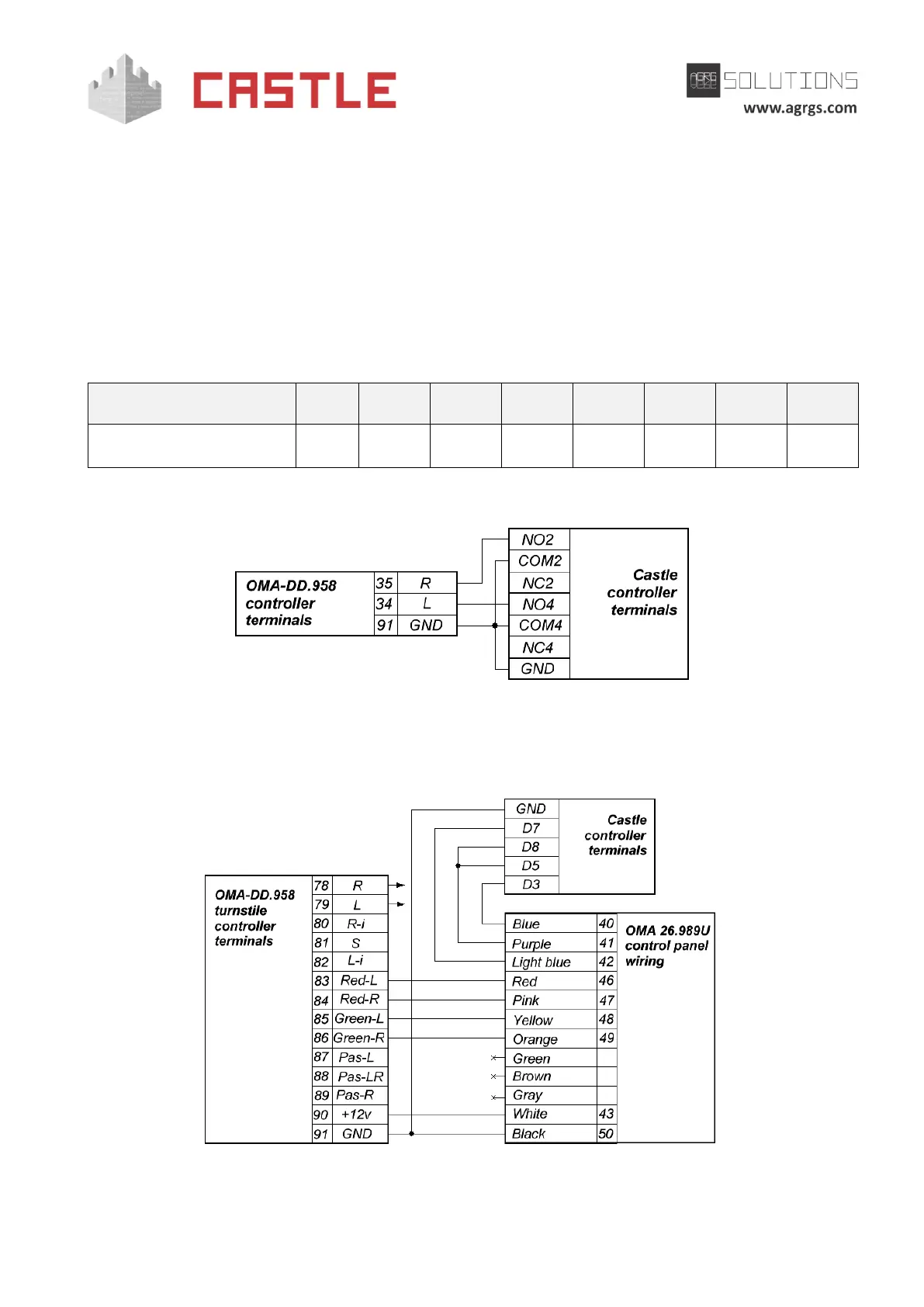

Pic 58. Connecting OMA 36.68 swing gate with OMA-DD.958 controller
9.8.4 Connecting the OMA-26.989U swing gate control panel
Pic 59. Connecting the OMA -26.989U swing gate control panel
