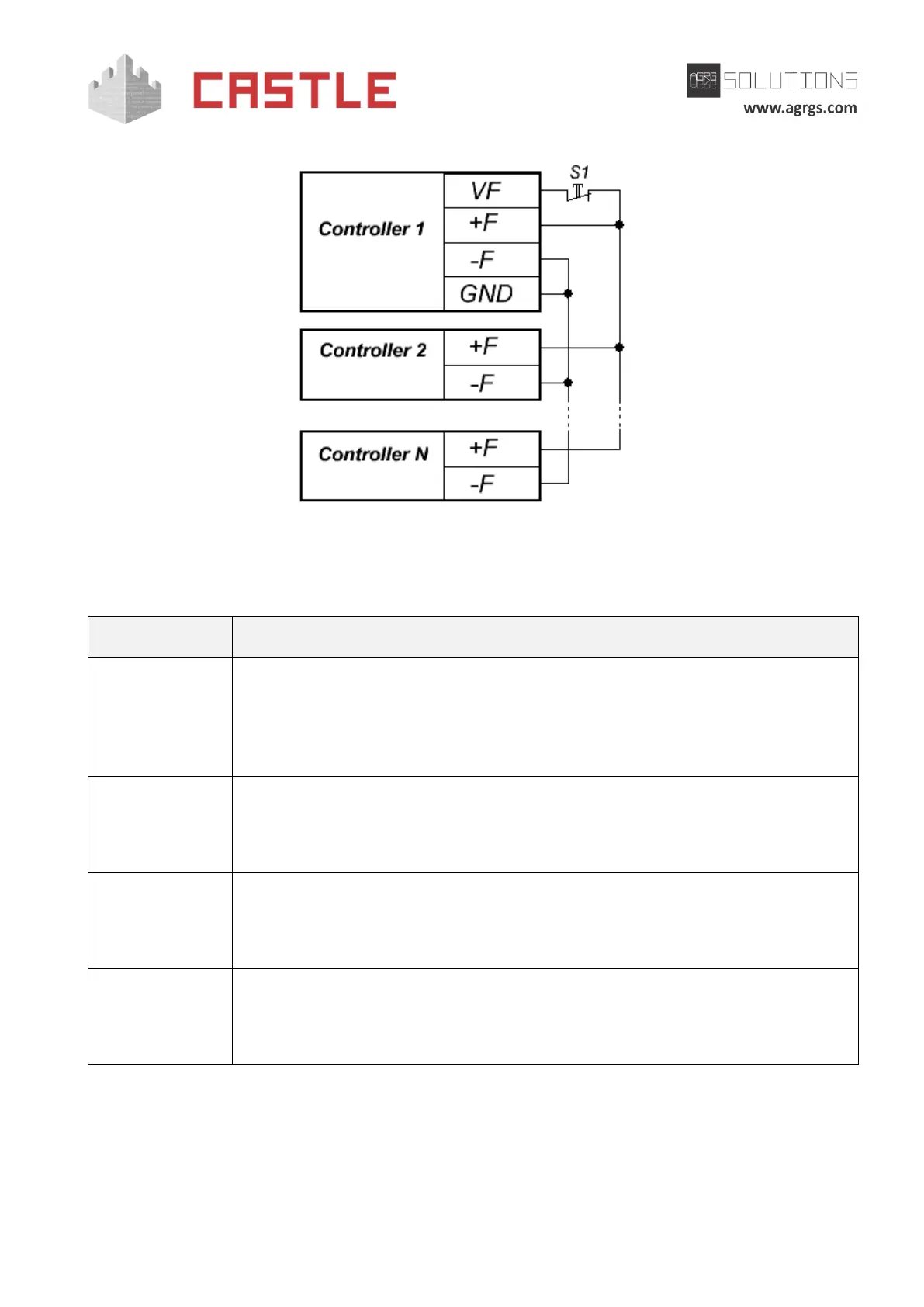

Pic 15. Connecting the release button to several controllers in a row
6.4.6 The use of general purpose outputs
Terminal
Use
O1
The first door
Output triggering on reading the pass, which has "Security authorized access"
mode (Rules -> Special rules tab-> Require guard approval for passing
option in Castle client control program), when access is allowed by the system.
O2
The first door
Output triggering on reading the pass, which has "Security authorized access"
mode, when access is denied by the system.
O3
The second door
Output triggering on reading the pass, which has "Security authorized access"
mode, when access is allowed by the system.
O4
The second door
Output triggering on reading the pass, which has "Security authorized access"
mode, when access is denied by the system.
Table 4. The default use of a general purpose outputs in Two Door configuration
