Table 27. Settings of CONF1 dip-unit toggles for operating with PERCo TTR-04N and TTR-04W-24 turnstiles

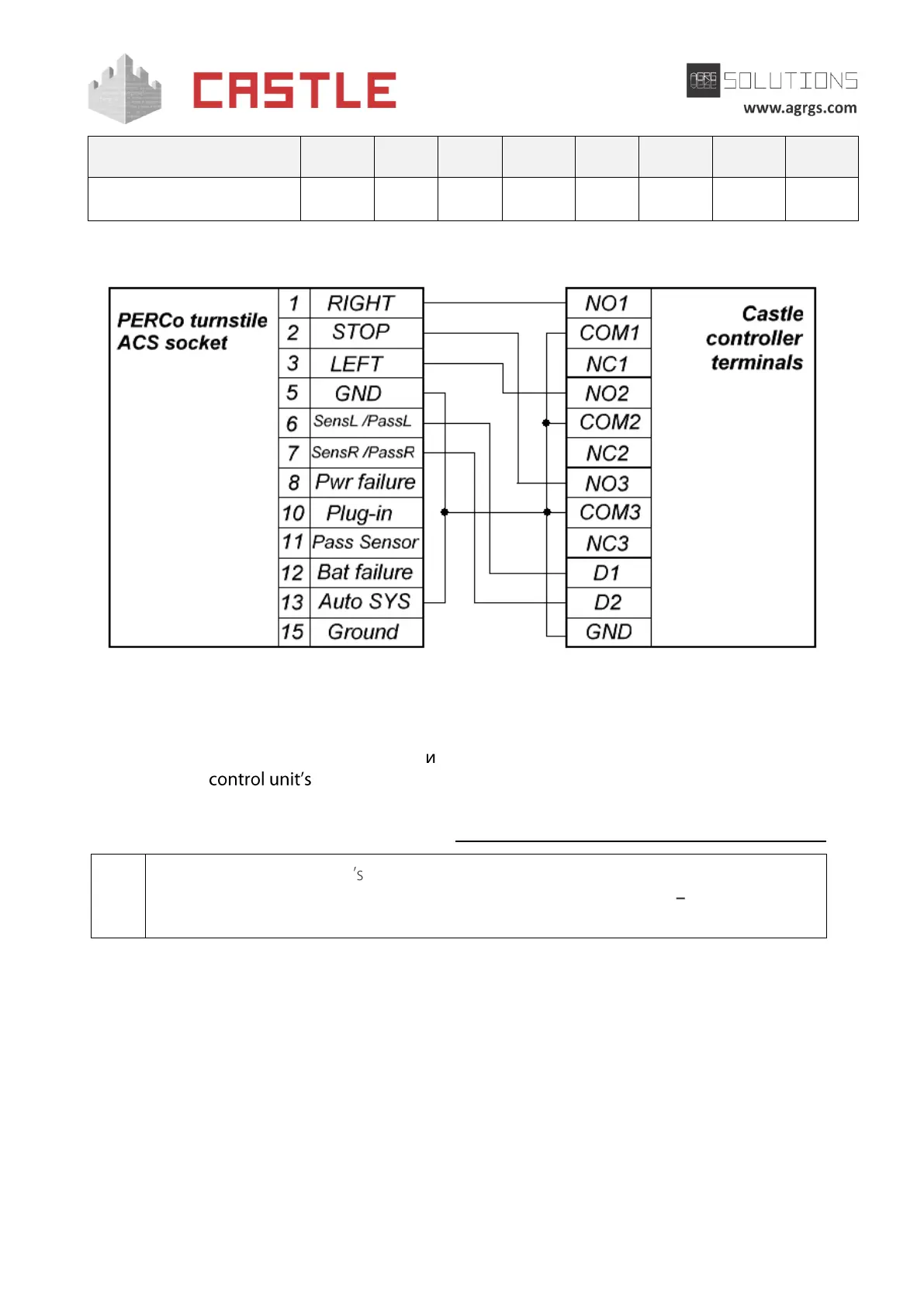

Pic 39. Connecting PERCo TTR-04N and TTR-04W turnstiles
Notes:
● When connecting PERCo-TTR-04N TTR-04W-24 turnstiles, place the jumper on J3 socket
of the board to switch it to the direct transmitting mode of passage sensor
signals.
● To connect the control panel, see Sec. 9.6.11 Connecting PERCo turnstile control panel.
Because of the control unit circuitry features, a permanent passage authorization from
ACS client or a control panel connected to the controller is impossible the turnstile is
locked spontaneously after the first pass.
9.6.3 Connecting PERCo RTD-03S turnstile
For operating with RTD-03S turnstile, the controller should be switched to the potential control
mode for controlling the turnstile and for working with normally open passage sensors according
to Simplified scheme.
In the Control Program, go to the controller settings and enable the additional option (on Doors
tab, select the access point, click Settings, uncheck Show only basic settings box, check Activate
Perco turnstile specific workaround, and click OK).
