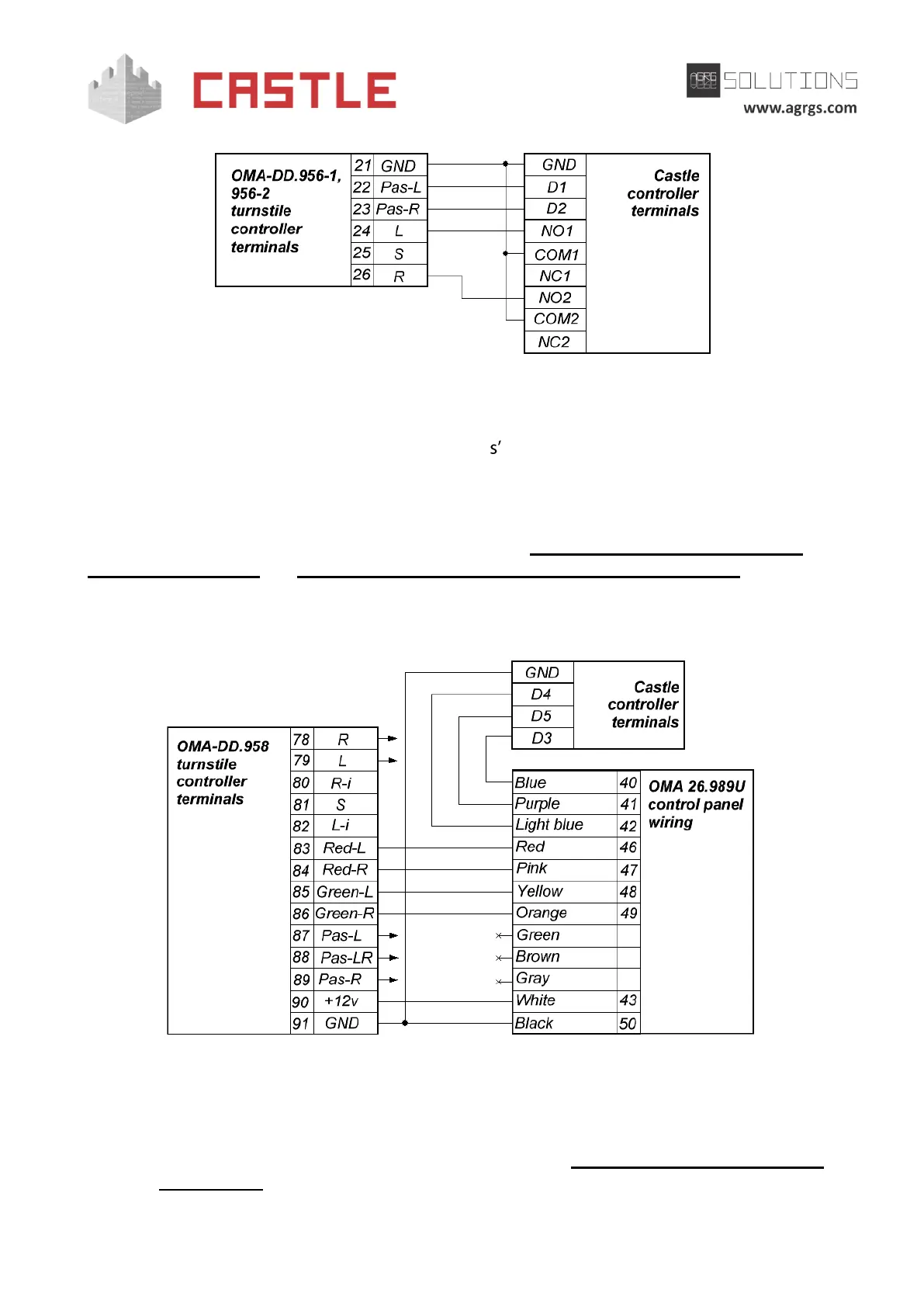

Pic 55. Connecting OMA turnstile with OMA 956-1 and 956-2 controllers
When connecting OMA turnstiles with OMA 956-1 and 956-2 control unit, it is necessary, according
to the documentation, to "cut 4.7 uF timer capacitor red jumpers" on the OMA controller board.
This will switch it to the potential control mode. In the pulse mode, the turnstile will automatically
lock after the fixed time, which cannot be changed by Castle controller. Thus, the system operation
in this mode is not allowed.
Note: to connect the turnstile control panel, see Sections 9.7.6 Connecting the OMA-26.989U
turnstile control panel and 9.7.7 Connecting the OMA-DD.998 turnstile control panel.
9.7.6 Connecting the OMA-26.989U turnstile control panel
Pic 56. Connecting the OMA-26.989U turnstile control panel
● Terminals 78, 79, 87, 88, and 89 of OMA-DD.958 controller are connected to controller
terminals. For wiring diagram, refer to "Connecting OMA turnstiles" section of this manual.
● The control panel operating logic is described in Sec. 11.8.2 Working with the turnstile
control panel.
