For the correct operation of the controller, in the Control Program you should select the desired
operating logic in the controller settings and set the same logic in the drive control unit (by using
dip-toggles or by pressing a dedicated button).
By means of the control unit toggles or jumpers, you can turn off some operating modes such as
"Automatic closing", "Partial stop", and "Opening while closing".
All the photocells and the control buttons are connected to the controller.
10.4 Connecting readers for gates
Readers are connected according to Sec. 6.3 Connecting readers and contactors. Overview.
OUT direction reader (located on the premises).
IN direction reader (located out of the premises).
Central reader (usually radio receiver).
Table 62. Assignment of readers connected to the gate controller

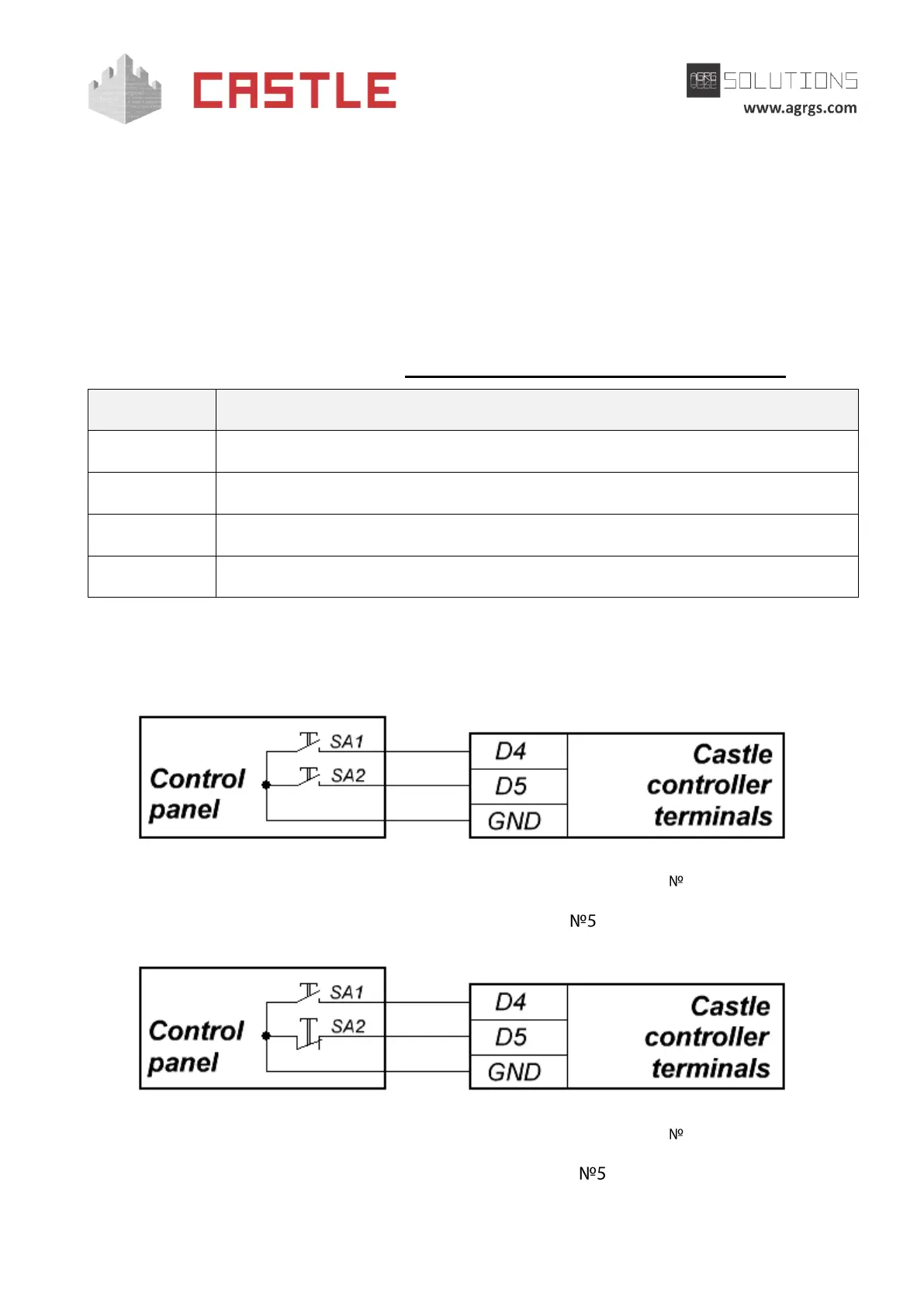

10.5 Connecting the gate control panel
Pic 89. Connecting the manual control panel of the gate. Option 1
The STOP button is normally open, the CONF1 dip-unit toggle is in OFF position.
Pic 90. Connecting the manual control panel of the gate. Option 2
The STOP button is normally closed, the CONF1 dip-unit toggle is in ON position.
