© AGRGS 2016 | Data subject to change without notice
67385867493098462 | en, eu, V5, 07. Oct 2016, page 82
9.12 Connecting Gunnebo DL600, Simplex, and Simplex ATT turnstiles
For operating with Gunnebo turnstiles equipped with HE84/3 control board (in models DL600,
Simplex, Simplex ATT, etc.), the controller should be switched to the pulse control mode for
controlling the turnstile and for working with normally open passage sensors according to
Simplified scheme.
Max waiting time before autolocking an unlocked turnstile option should be
set according to the control board settings (RV1 and RV2 potentiometers), the default setting is 8
seconds.
Toggle N
1
2
3
4
5
6
7
8
Toggle position
OFF
ON
ON
OFF
OFF
OFF
ON
OFF
Table 48. Settings of CONF1 dip-unit toggles for operating with Gunnebo DL600, Simplex, and Simplex ATT
turnstiles
Because o -shut-off passage timer and a non-standard control
panel design), there are certain restrictions on its operation as part of ACS:
The control panel connection is performed only to the turnstile control unit directly. All
the passages authorized from the control panel will be recorded in the ACS as the break-
ins.
No constant turnstile unlock mode from the ACS client.
Some conflict situations are likely to arise, when a passage by a card and pressing control
panel buttons occur simultaneously.
JP4 and JP5 jumpers on HE84/3 control board must be set to "3-6" position.

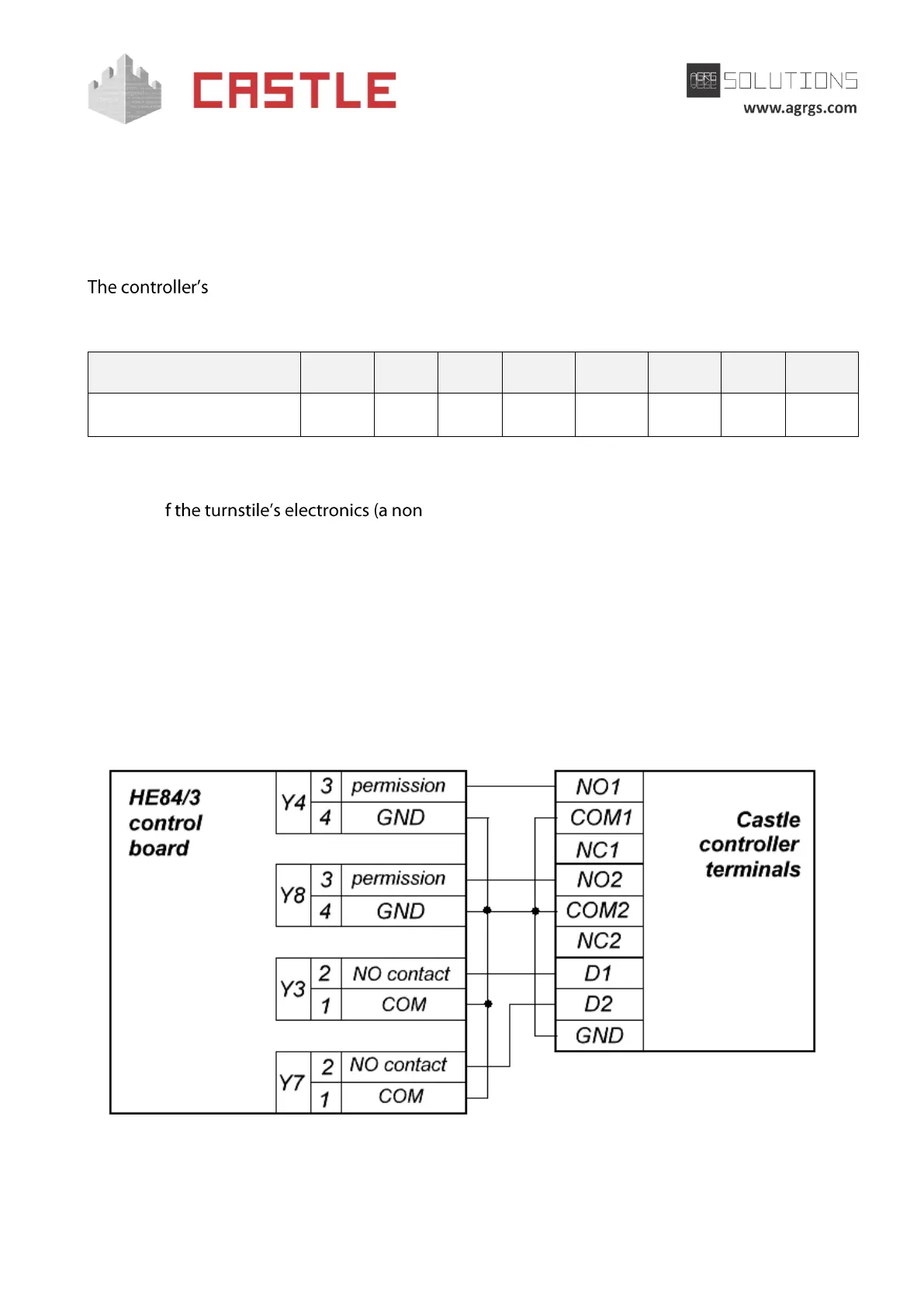

Pic 76. Connecting Gunnebo turnstiles with HE84/3 control board
