9.6.1 Connecting PERCo TTR-04.1, TTD-03, and T-5 turnstiles
For operating with PERCo TTR-04.1, TTD-03, and T-5 turnstiles, the controller should be switched to
the potential control mode for controlling the turnstile and for working with normally closed
passage sensors according to Simplified scheme.
In the Control Program, go to the controller settings and enable the additional option (on Doors
tab, select the access point, click Settings, uncheck Show only basic settings box, check Activate
Perco turnstile specific workaround, and click OK).
Table 26. Settings of CONF1 dip-unit toggles for operating with PERCo TTR-04.1, TTD-03, and T-5 turnstiles

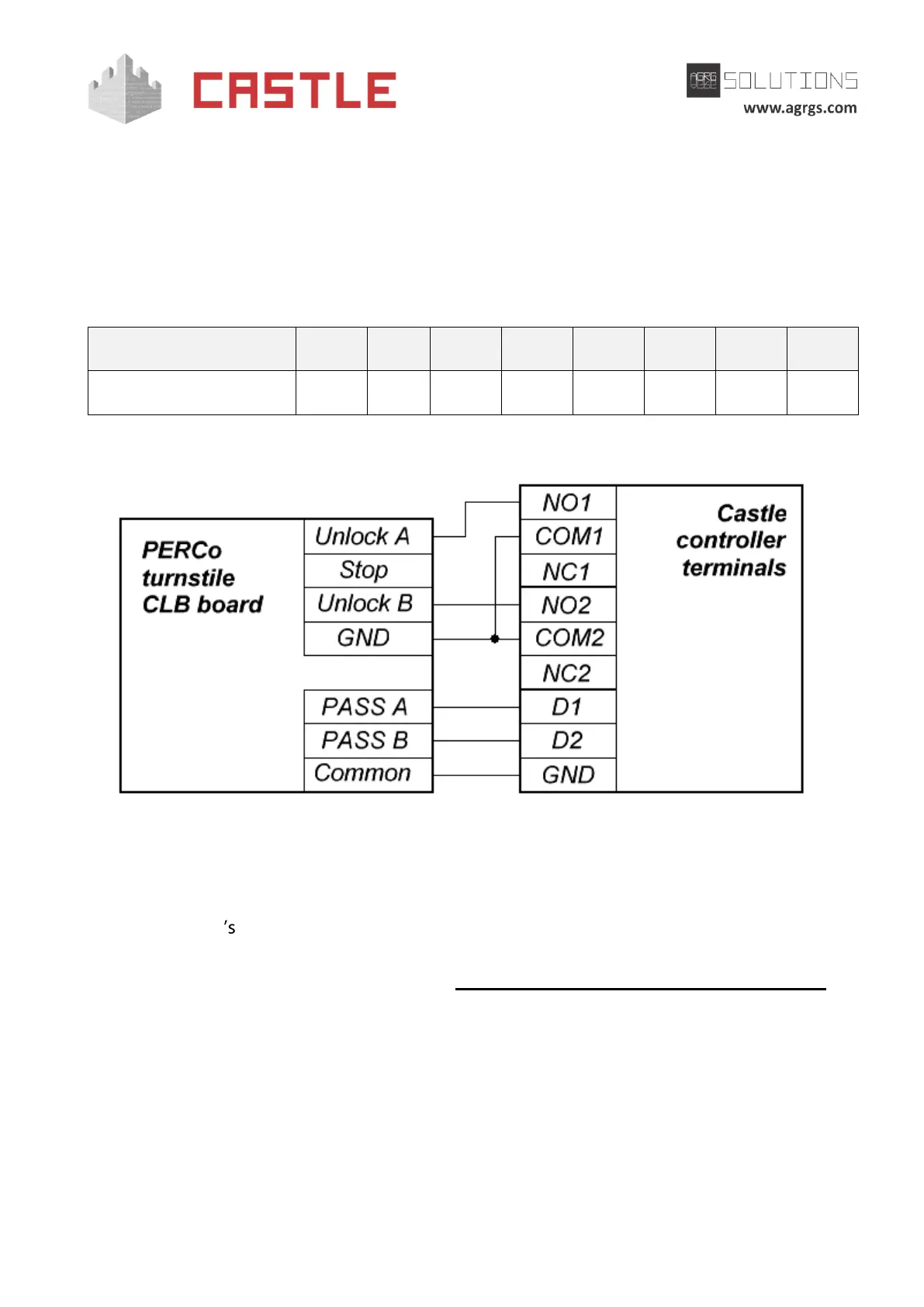

Pic 38. Connecting PERCo-TTR-04.1, TTD-03, and T-5 turnstiles
Notes:
● When connecting PERCo TTR-04.1, TTD-03, and T-5 turnstiles, remove J1 jumper on the
turnstile CLB board to switch it to the potential control mode (since in the pulse mode it
automatically locks after a fixed time, which cannot be altered by Castle controller).
● To connect the control panel, see Sec. 9.6.11 Connecting PERCo turnstile control panel.
9.6.2 Connecting PERCo TTR-04N and TTR-04W-24 turnstiles
For operating with PERCo TTR-04N and TTR-04W-24 turnstiles, the controller should be switched to
the pulse control mode for controlling the turnstile and for working with normally closed passage
sensors according to Direct scheme.
In the Control Program, go to the controller settings and enable the additional option (on Doors
tab, select the access point, click Settings, uncheck Show only basic settings box, check Activate
Perco turnstile specific workaround, and click OK).
