CASTLE EP User Manual

© AGRGS 2016 | Data subject to change without notice
67385867493098462 | en, eu, V5, 07. Oct 2016, page 67
9.6.9 Connecting PERCo WHD-04 swing gate
For operating with PERCo WHD-04 swing gate, the controller should be switched to the pulse
control mode for controlling the turnstile and for working with normally closed passage sensors
according to Simplified scheme.
In the Control Program, go to the controller settings and enable the additional option (on Doors
tab, select the access point, click Settings, uncheck Show only basic settings box, check Activate
Perco turnstile specific workaround, and click OK).
Toggle N
1
2
3
4
5
6
7
8
Toggle position
OFF
ON
ON
OFF
OFF
OFF
OFF
OFF
Table 33. Settings of CONF1 dip-unit toggles for operating with PERCo WHD-04 swing gate

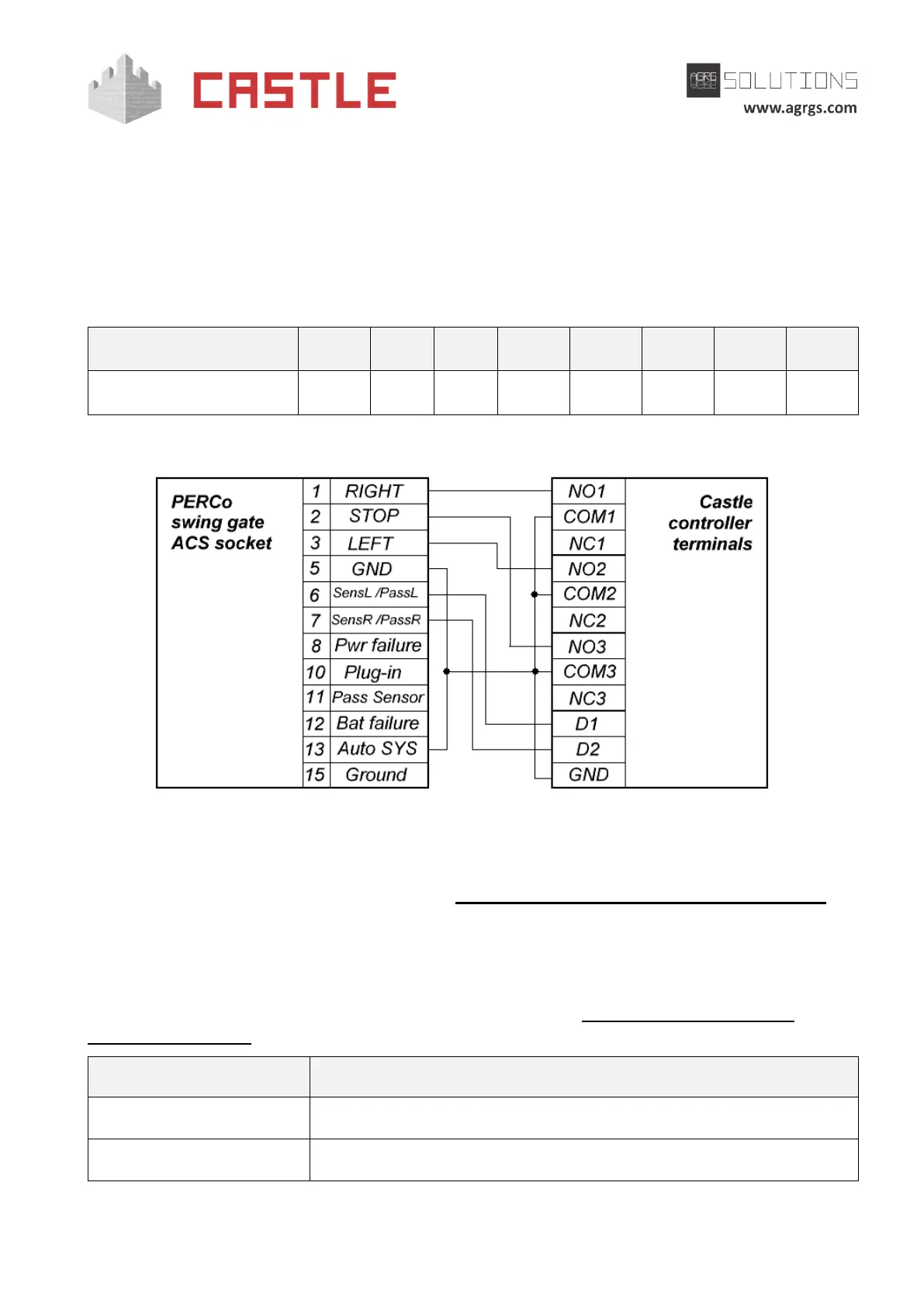

Pic 46. Connecting PERCo WHD-04 swing gate
Note:
● To connect the control panel, see Sec. 9.6.11 Connecting PERCo turnstile control panel.
9.6.10 Connecting PERCo WMD-05 swing gate
Connecting readers
Readers are connected to controller terminals according to Sec. 6.3 Connecting readers and
contactors. Overview.
Port
Use
PORT 1
OUT direction reader
PORT 4
IN direction reader
Table 34. Reader assignments when working with PERCo WMD-05 swing gate
