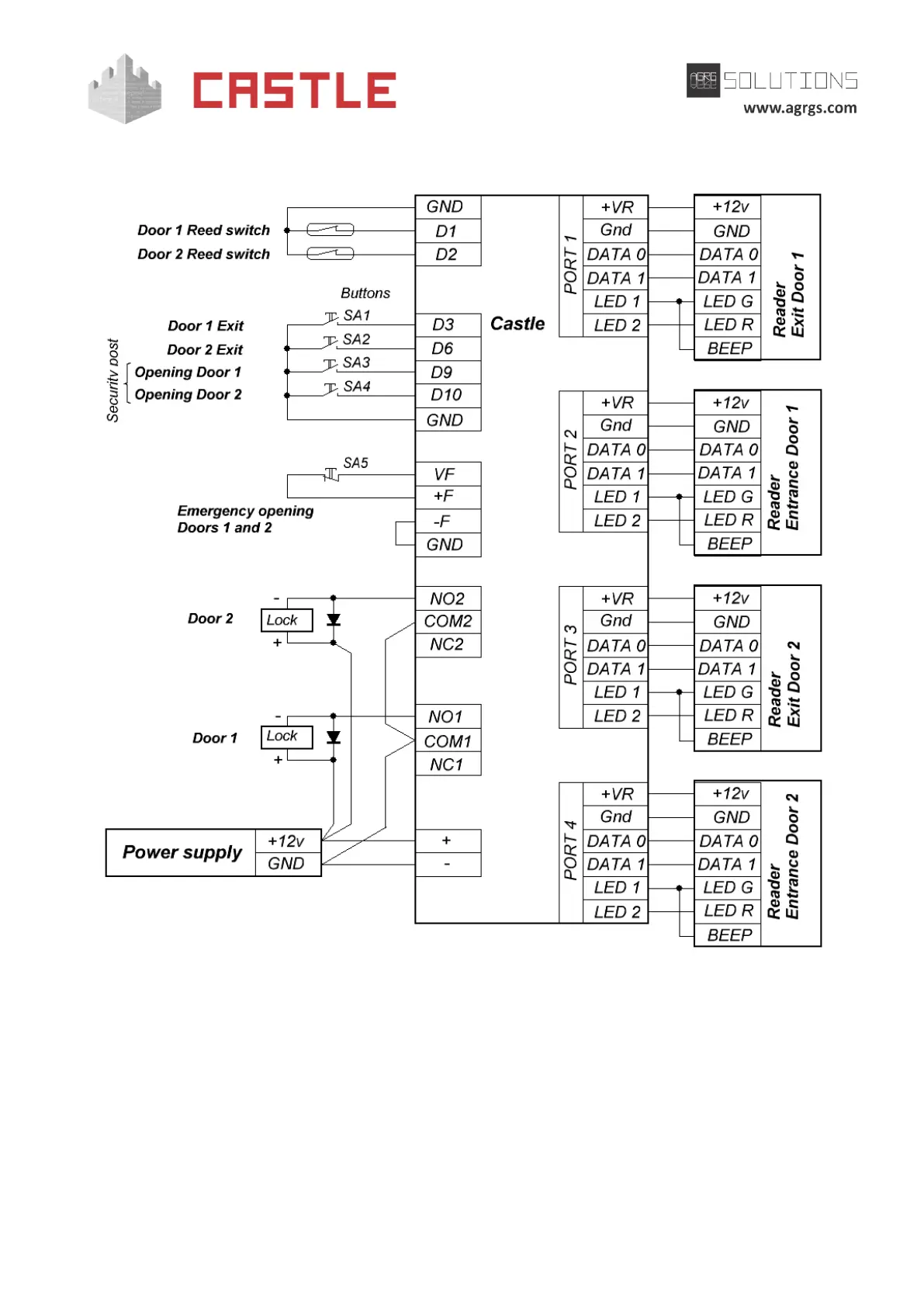

Example of connec
ting two doors
8.8
Connecting card ca
pture readers OMA
-43.601, 43.606
for a door
To connect card capture reader OMA-43.60x, it is required to join controller terminals to card
capture reader terminals.
45
47
Table of Contents
Table of Contents
2
Introduction
7
Document Revision
8
Controller Description and Package
9
PCB Layout
9
Controller Package
12
Controller Specifications
13
Controller Functions in Castle ACS
15
Controller Installation. Overview
16
Configuring the Controller
16
Controller Power Supply
17
Connecting Readers and Contactors. Overview
18
General Rules for Connecting Contactless Card Readers
18
Connecting Readers with Wiegand Interface
20
Connecting Contactors and Touch Memory Readers
21
Connecting Keypad Readers
22
Important Notes on Non-Standard Readers
22
Connecting the Communication Line and Setting up the Controller
23
Connecting Ethernet Communication Line
23
Setting Controller IP-Parameters
23
Connecting RS485 Communication Line
24
Setting RS485 Network Address
26
Connecting Emergency Release Line
26
The Use of General Purpose Outputs
28
Reassigning Controller Terminals
29
Connecting the Controller in Registration Board Mode
30
Connecting Doors
33
Connecting Two Doors. Overview
33
Connecting Readers for Doors
34
Connecting Door Locks. Overview
34
Connecting Electromagnetic Locks or Latches
35
Connecting Electromechanical Locks
37
Connecting Other Types of Locks
38
Example of Connecting the Lock with the Separate Control Input
38
Connecting Electric Motor Locks
40
Example of Connecting the Lock that Is too Far from the Controller
41
Important Notes on the Use of Locks and Latches
42
Connecting Door Opening Sensors
43
Connecting RTE Buttons
44
Connecting Door Blocking Buttons
45
Example of Connecting Two Doors
46
Connecting Card Capture Readers OMA-43.601, 43.606 for a Door
46
Connecting Doorphones (Intercoms)
47
Connecting Turnstiles
49
Connecting Turnstiles. Overview
49
Connecting a Turnstile Control Panel. Overview
50
Connecting Turnstile Control Lines
51
Connecting Readers for the Turnstile
51
Connecting Card Capture Readers. Overview
52
Connecting Card Capture Readers Kodos K-30, K-40, and K-100
52
Connecting Elix PW-500 Card Capture Readers
53
Connecting OMA-43.601, 43.606 Card Capture Readers for a Turnstile
54
Connecting Rostov-Don KP1 Card Capture Reader
55
Connecting ARGO and TVER
56
Connecting Perco-IC03 Card Capture Reader
57
Connecting Praktika K-01 Card Capture Reader
58
Connecting Perco Turnstiles and Swing Gates
59
Connecting Perco TTR-04.1, TTD-03, and T-5 Turnstiles
60
Connecting Perco TTR-04N and TTR-04W-24 Turnstiles
60
Connecting Perco RTD-03S Turnstile
61
Connecting Perco RTD-15 Turnstile
62
Connecting Perco TTR-04 Turnstile
63
Connecting Perco TB-01 and TBC-01 Turnstiles
64
Connecting Perco KT-02 and KT-05.3 IP-Stiles
64
Connecting Perco T-04 Turnstile Stand
65
Connecting Perco WHD-04 Swing Gate
67
Connecting Perco WMD-05 Swing Gate
67
Connecting Perco Turnstile Control Panel
68
Connecting OMA Turnstiles
70
Connecting OMA Turnstiles. Overview
70
Connecting OMA Turnstiles with OMA-DD.958 and 264MS1 Controllers
71
Connecting OMA Turnstiles with OMA 957 Controller
72
Connecting OMA Turnstiles with OMA 956-3 and 956-4 Controllers
73
Connecting OMA Turnstiles with OMA 956-1 and 956-2 Controllers
73
Connecting the OMA-26.989U Turnstile Control Panel
74
Connecting the OMA-DD.998 Turnstile Control Panel
75
Connecting OMA Swing Gates. Overview
75
Connecting Readers for OMA Swing Gate
75
Setting Access Points for Operating with OMA 36.68 Swing Gate
76
Connecting OMA 36.68 Swing Gate (OMA-DD.958 Controller)
76
Connecting the OMA-26.989U Swing Gate Control Panel
76
Connecting the OMA-DD.998 Swing Gate Control Panel
77
Connecting Rostov-Don Turnstiles and Swing Gates; New Electronics
77
Connecting Rostov-Don Turnstiles and Swing Gates; Old Electronics
78
Connecting the Rostov-Don Turnstile Control Panel
80
Connecting Gunnebo Glasstile Turnstiles
80
Connecting Gunnebo DL600, Simplex, and Simplex ATT Turnstiles
82
Connecting Tornello Turnstiles
83
Connecting Stella STL -111 Turnstiles
84
Connecting ARGO Turnstiles
84
Connecting Fastlane Intelligate Passgate
85
Connecting Readers for Fastlane Intelligate Passgate
85
Setting Access Points for Operating with Fastlane Intelligate Passgate
86
Connecting Fastlane Intelligate Passgate
86
Connecting Gate and Barrier Drives
87
Connecting Gates and Barriers. Overview
87
Direct Control of Gate Drives
89
Controlling a Third-Party Gate Controller (Control Unit)
89
Connecting Readers for Gates
90
Connecting the Gate Control Panel
90
Connecting Vehicle Presence Sensors
91
Connecting FAST, KRONO, ATI, and FERNI Drives
92
Connecting FAAC Drives. Overview
93
Connecting FAAC 596MPS and FAAC 610MPS Barriers
94
Connecting FAAC 540BPR, 596BPR, and 615BPR
95
Connecting FAAC 452MPS Gate Drives
97
Connecting FAAC 740 and 741 Gate Drives
99
Connecting FAAC Drives with 624BLD Control Unit
100
Connecting NICE Barrier Drives. Overview
102
Connecting NICE WIL4 and WIL6 Barriers
102
Connecting NICE SIGNO Barriers
104
Connecting NICE X-Bar Barriers and ROBUS Gate Drives
105
Connecting Drives with A924 Control Unit
107
Connecting CAME Drives. Overview
108
Connecting Drives with ZL37 and ZL38 Control Units
108
Connecting Drives with ZT4 Control Unit
110
Connecting Drives with ZG2 Control Unit
112
Connecting Drives with ZA3 Control Unit
113
Connecting Drives with ZBK (ZBKE) Control Unit
115
Connecting Drives with ZBX7 Control Unit
117
Connecting Drives with ZC5 Control Unit
119
Connecting Drives with ZL55 Control Unit
120
Connecting Drives with ZL180 Control Unit
122
Connecting BFT Drives. Overview
124
Connecting Drives with ELMEC1 Control Unit
124
Connecting GENIUS Barriers with A453 Control Unit
125
Connecting GENIUS Drives with A382 Control Unit
127
Connecting GENIUS Drives with LYNX 06 Control Unit
128
Connecting a General Gate (Electric Motor and Two Starters)
130
Connecting Hormann Drives. Overview
131
Connecting Hormann Drives with A455 and B455 Control Units
132
Connecting Hormann Drives with A460 and B460 Control Units
133
Connecting O&O Drives with LOG-BT Control Unit
135
Connecting Doorhan Drives. Overview
136
Connecting Doorhan Barrier-5000
136
Connecting Doorhan Drives with Control 144N Control Unit
138
Connecting Doorhan SHAFT-30 Drives
139
Connecting DEA Drives. Overview
141
Connecting DEA Barriers with 124RR Control Unit
141
Connecting Automatic Systems Drives
142
Connecting Automatic Systems Barriers with BL12 Control Unit
143
Connecting Automatic Systems Barriers with BL12 Control Unit. Limit Switch
144
Connecting SEA Drives with MPU/0 Control Unit
146
Connecting Bytec BAR-6 Barrier
147
Connecting Marantec Drives with CS300 Control Unit
149
Connecting Egate Barriers
150
The Controller Operating Logic
152
Starting the Controller
152
Functioning of the Controller Power Supply Protection Circuits
152
Functioning of the Reader Display Lines
152
Processing Fire Alarm Signals
153
Functioning of General Purpose Outputs
153
Functioning of the Controller Input/Output Protection Circuits
153
Reader Power Supply Circuits
153
Controller Outputs
153
Controller Inputs
154
The Operating Logic in Two Door Configuration
154
Working with Readers
154
Working with RTE Buttons
154
Working with Block Buttons
155
The Operating Logic in Turnstile Configuration
155
Working with a Turnstile
155
Working with the Turnstile Control Panel
156
The Operating Logic in Gate/Barrier Configuration
157
Gate Operating Modes
157
Direct Control of the Gate Drive
157
Controlling a Third-Party Gate Controller
157
Working with Readers
158
Working with Manual Gate Control
158
Working with Remote Keys
158
Security Measures at Gate Automation
159
Troubleshooting Techniques
160
Troubleshooting Power Supply and Controller Start-Up
160
Troubleshooting Ethernet Connection Quality
160
Troubleshooting RS485 Connection Quality
161
Troubleshooting Reader Connection
161
Troubleshooting During Lock Connection
162
Troubleshooting During Turnstile Connection
162
Troubleshooting During Connection of Barriers and Gates
165
Appendix 1. the Controller Audible Signals
166
Appendix 2. the Controller LED Indication
167
Appendix 3. the Controller Numeric Configuration Parameters
168
Appendix 4. Summary for Cable Selection
170
Appendix 5. Setting Controller RS485 Address
171
Appendix 6. Encoding Characters on Keypad Reader
173
